9
LIGHTING INSTRUCTIONS
Warning: If these instructions are not followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
1. Read instructions before lighting.
2. Push and turn the knob to ON.
3. Hold ignitor to light the burner, release control knob after 15 seconds; if burner does not
light , wait 5 minutes ,repeat.
4. Adjust flame to desired flame with the control knob. See Figure 10.
LAZY SUSAN/BURNER COVER ASSEMBLY
Place the lazy susan/ burner cover on the table top as shown in Figure10.
WARNING: BEFORE PLACING THE LAZY SUSAN / BURNER COVER ON, MAKE SURE THE
FIREPIT HAS BEEN SHUT OFF AND THE BURNER HAS COMPLETELY COOLED DOWN.

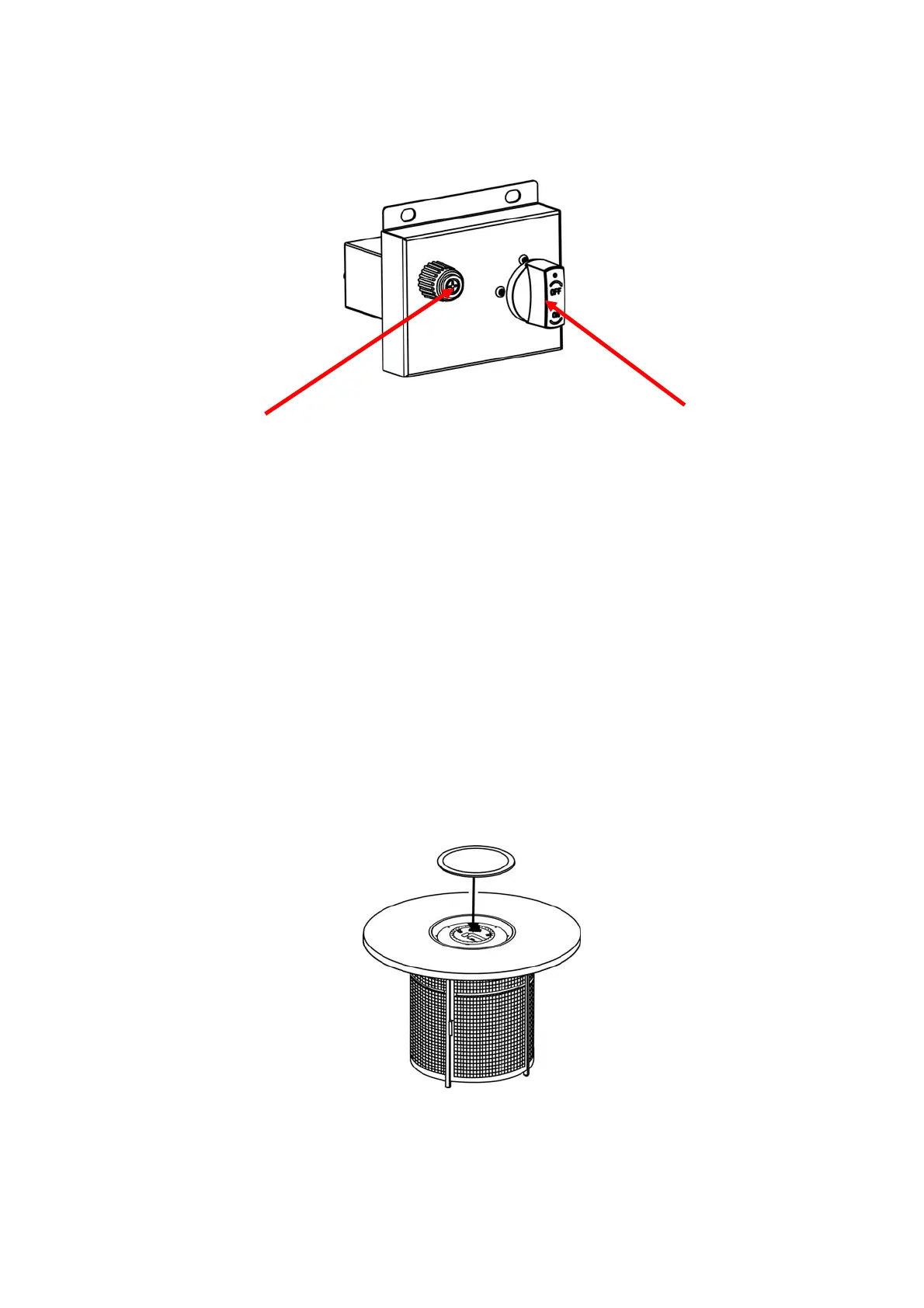

Figure 10
IGNITER BUTTON CONTROL KNOB
Figure 10
