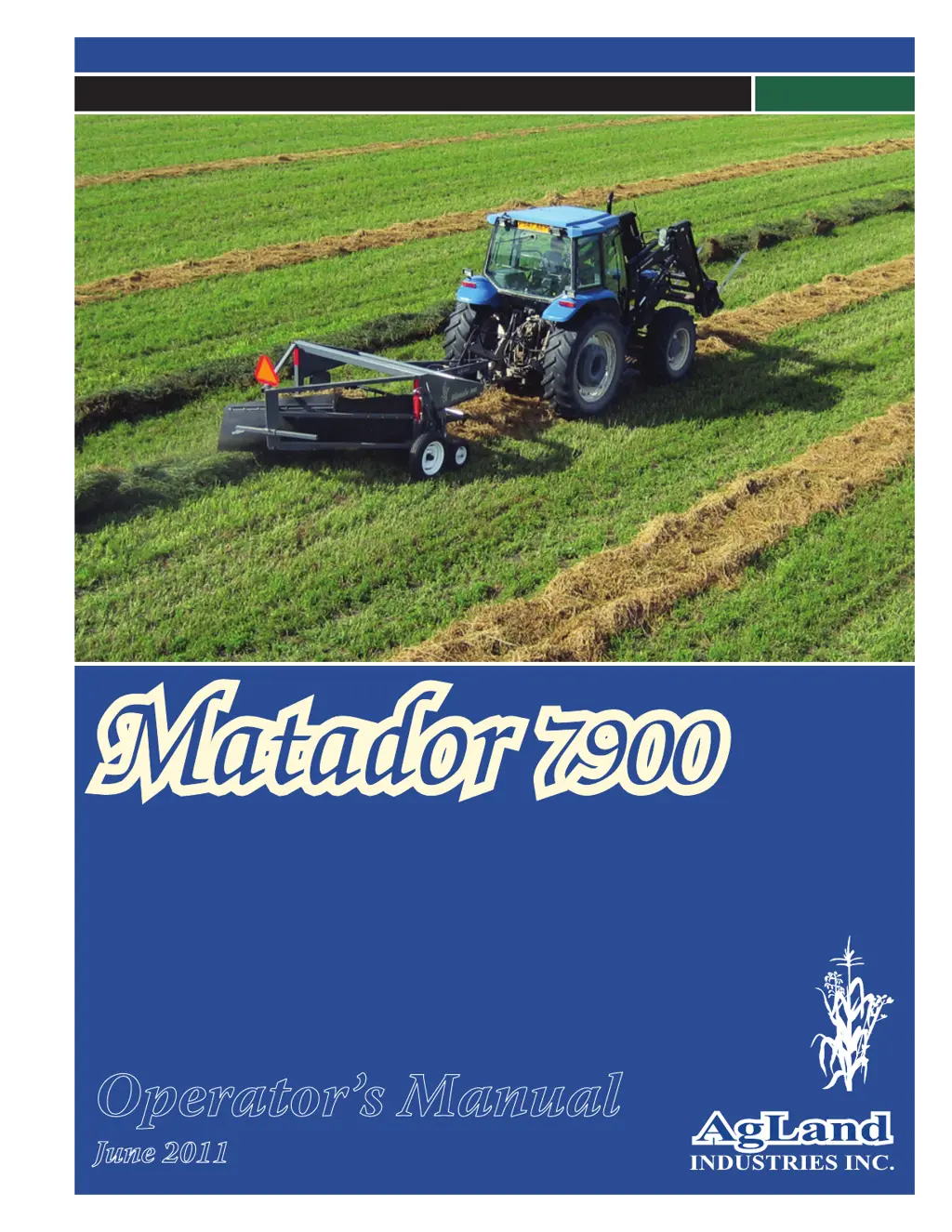

Operator’s Manual
June 2011
2011

Table of Contents

Questions and Answers

  • J
    Jean SmithAug 17, 2025
    What to do if the pickup is plugging on AgLand Matador 7900?
    • T
      Todd MillerAug 17, 2025
      If the pickup on your AgLand Farm Equipment is plugging or not allowing material to flow freely, there are several possible causes. You might be feeding a large windrow too rapidly, so try reducing your ground speed. The crop hold down fingers could be set too tightly, requiring an adjustment. Also, check if the plastic tube over the fingers is worn or missing, and replace the tube(s) if necessary.
  • C
    Crystal WilliamsAug 20, 2025
    Why is material wrapping in the pickup of my AgLand Matador 7900?
    • T
      Taylor FreyAug 20, 2025
      Material wrapping in the pickup of your AgLand Farm Equipment can occur due to several reasons. Check if the nylon wear plate inserts are missing or worn and replace them if needed. Ensure the hay is sufficiently dry. Adjust the crop hold down if it's set too tight. Replace any worn or missing plastic tubes over the fingers. Adjust your pickup and/or travel speed to match the crop conditions. If the field is rough, and your speed is excessive for the pickup flotation, slow down to prevent bouncing.
  • M
    Michael LewisAug 22, 2025
    Why is material wrapping on the rollers of my AgLand Farm Equipment?
    • D
      Dr. Christopher Hernandez DDSAug 22, 2025
      Material wrapping on the rollers of your AgLand Farm Equipment can be caused by several factors. Ensure that your pickup and/or travel speed is appropriate for the crop conditions by making necessary adjustments. Check the crop hold down setting and adjust if it's too tight. Replace any worn or missing plastic tubes. Also, ensure that the hay is not too wet or tough; allow it to dry down sufficiently for proper operation.
  • J
    Jonathan LeeAug 26, 2025
    Why is the pickup skipping swath on my AgLand Matador 7900 Farm Equipment?
    • D
      Daniel PrattAug 26, 2025
      If the pickup on your AgLand Farm Equipment is skipping swath or not picking cleanly, it could be due to several reasons. Missing or broken pickup teeth should be replaced. The flotation spring might be adjusted too lightly, so adjust the flotation accordingly. You might be driving too fast, so reduce your ground speed. Finally, the pickup tooth height could be too high; adjust the gauge wheels to lower it.
  • B
    Brooke WallAug 28, 2025
    How to reduce excessive noise from chain and sprockets on AgLand Matador 7900 Farm Equipment?
    • H
      holmesjeffreyAug 28, 2025
      Excessive noise from the chain and sprockets on your AgLand Farm Equipment can be attributed to a few reasons. The chain or sprockets might be worn, requiring replacement of parts as needed. The chain tension could be incorrect, so adjust it according to the Maintenance section. Also, the chain might be dry or rusted, so use proper lubrication.
  • S
    Stephen McdowellAug 31, 2025
    What causes breakage of pickup teeth on AgLand Matador 7900?
    • S
      ssantiagoAug 31, 2025
      Breakage or bending of pickup teeth on your AgLand Farm Equipment can occur due to several reasons. You might be running the pickup too low, so adjust the gauge wheel height. The pickup flotation could be set too heavy, so adjust the flotation. Excessive pickup rotation speed in rough or rocky conditions can also cause this issue, so reduce pickup speed and/or ground speed.
  • P
    Patrick HessSep 3, 2025
    Why is the swath not being inverted completely by AgLand Farm Equipment?
    • D
      Daniel OconnorSep 3, 2025
      If the swath is not being inverted completely by your AgLand Farm Equipment, it could be due to several factors. The swath might be too wide, so narrow the width laid down by the cutting unit to between 3’ to 4’ (.9 m to 1.2 m) maximum. The rear of the moldboard might be too high, so level the moldboard frame so it is parallel to the ground. If the material being inverted is very fine, ensure that the swath to be inverted is no more than 9’ (3 m) wide. Windy conditions can also cause this issue, so invert the swath only in conditions allowing proper results.
  • W
    wattspeterSep 5, 2025
    What causes excessive leaf loss while inverting with AgLand Farm Equipment?
    • L
      lopezpeterSep 5, 2025
      Excessive leaf loss while inverting with your AgLand Farm Equipment can be caused by a swath that is excessively dried or bleached, so adjust the speed to suit the condition. Also, the pickup and/or travel speed might be too high; if speeds are adjusted correctly, minimal leaf loss is to be expected.
  • L
    Leslie NguyenSep 8, 2025
    Why is the hydraulic motor leaking on my AgLand Matador 7900?
    • L
      Laura HernandezSep 8, 2025
      A leaking hydraulic motor on your AgLand Farm Equipment can be due to several reasons. The seal might be worn or damaged, requiring a replacement. The seal could also be ruptured by over pressure, which also necessitates a replacement. Contaminant damage to the motor can also cause leaks, so repair the motor and ensure the oil supply is clean.
  • R
    richard91Sep 12, 2025
    Why is the pickup speed too slow on my AgLand Matador 7900?
    • J
      jonathon70Sep 12, 2025
      If your AgLand Farm Equipment's pickup speed is too slow, it might be due to insufficient oil supply from the tractor. Ensure that the tractor supplies oil as per tractor specifications.

Summary

Replacement Parts

Limited Warranty Registration

Introduction

Safety Warning During Operation

Machine must never be operated with any shields removed.

Safety

Signal Words and Hazard Definitions

Defines hazard levels: DANGER, WARNING, CAUTION.

Safety Alert Symbol Explanation

Identifies important safety messages in the manual and on the machine.

Slow Moving Vehicle Emblem Usage

Requirement and placement of the SMV emblem for road travel.

Transport Safety Guidelines

Guidelines for safely transporting the machine on public roads and highways.

Operating Safety Precautions

Essential safety precautions for operating the windrow inverter.

Hydraulic System Safety

Precautions for maintaining and working with the hydraulic system.

Safety Decals

Moving Parts Hazard Decal

Details the dangers of moving parts and necessary precautions.

High Pressure Fluid Hazard Decal

Warns about high-pressure fluid hazards and safety measures.

Shields and Guards Installation Decal

Emphasizes the importance of keeping shields and guards in place.

Specifications

Machine Dimensions and Weight

Detailed measurements and weight of the Matador 7900.

Tractor Requirements

Minimum tractor specifications needed for operating the machine.

Pickup Specifications

Details on pickup width, clearance, teeth, and drive system.

Operating Speed and Swath Size

Recommended operating speed and swath width.

Assembly

Wheel Assembly and Installation

Instructions for installing rear wheels and gauge wheels.

Moldboard Attachment Installation

Steps for attaching the moldboard sheet and frame.

Hydraulic Lift Kit Installation

Detailed instructions for installing the hydraulic lift kit.

Operation

Leveling the Windrow Inverter

Procedure for leveling the windrow inverter using tractor hitch.

Pickup Finger Height Adjustment

Adjusting gauge wheels for optimal pickup height.

Flotation Spring Adjustment

Adjusting flotation springs for uneven terrain.

Setting Pickup Speed

Adjusting the hydraulic motor speed for optimal pickup performance.

Direction of Travel and Field Operation

Guidance on starting and operating the machine in the field.

Maintenance

Maintenance Schedule Checklist

Scheduled maintenance tasks based on usage intervals.

Setting Drive Chain Tension

Procedure for adjusting the tension of the drive chain.

Roller Drive Chain Replacement

Steps for replacing worn or damaged drive chains.

Bearing Replacement and Repacking

Guide to replacing and repacking bearings and wheel hubs.

Pickup Teeth, Bands, and Wear Strips

Instructions for inspecting and replacing pickup teeth, bands, and wear strips.

Flotation Spring Adjustment

Setting the correct spring tension for flotation.

Inch Torque Specifications

Torque values for inch-based bolts and nuts.

Metric Torque Specifications

Torque values for metric bolts and nuts.

Lubrication

General Lubrication Guidelines

Recommended grease type and general lubrication practices.

Scheduled Lubrication Points

Lubrication points for 8-hour, 100-hour, and seasonal intervals.

Hydraulics Assembly Instructions

Hydraulic Components Part List

List of hydraulic hoses, fittings, valves, and motor with part numbers.

Troubleshooting

Hydraulic System Troubleshooting

Diagnosing and resolving issues with hydraulic motor surging, speed, and leaks.

Pickup Performance Issues

Addressing pickup plugging, skipping, and material wrapping issues.

Chain and Sprocket Problems

Resolving excessive noise from chains and sprockets.

Pickup Teeth and Material Handling Issues

Troubleshooting pickup teeth breakage and material wrapping.

Incomplete Swath Inversion

Solutions for issues with incomplete swath inversion.

Excessive Leaf Loss During Inversion

Addressing excessive leaf loss during the inverting process.

Limited Warranty
