Agora Models Bismarck - Page 47

01. DETAILS FOR THE TWO AFT UPPER DECK SECTIONS
01
02
PB
12701
12703
12704
F
C
O
P
12702
12705
12706
12708
D
I
J
PB
12707
A
B
E G
H
M
N
L
K
K
Q
R
S
12601
12601
A
A
A

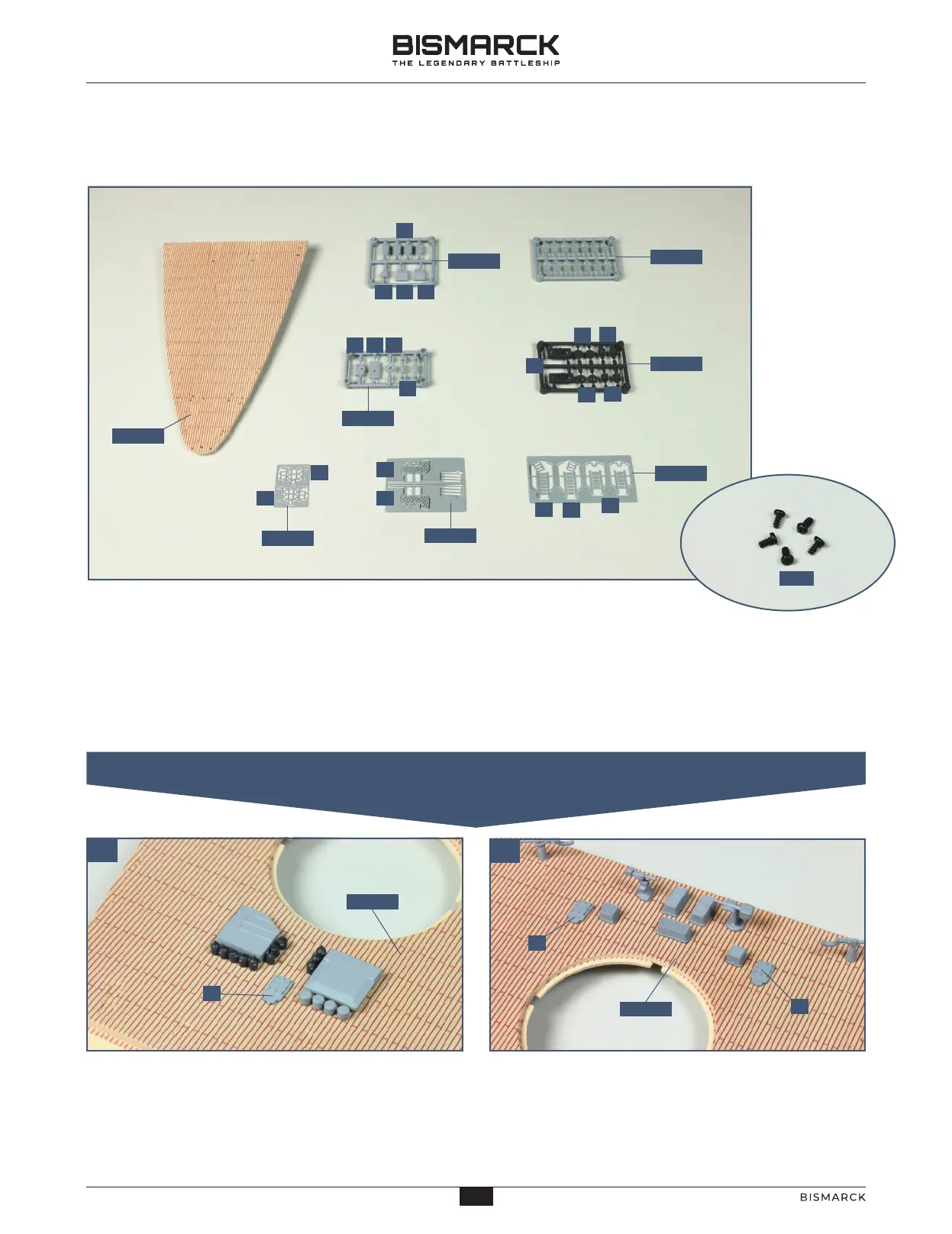

STAGE 127
LAST SECTION OF THE UPPER DECK
COMPONENTS CHECKLIST
127-01: Aft upper deck section
127-02: Details for the aft deck (A to D)
127-03: Skylights
127-04: Anchor chain opening, chain holder
and depth charges (E to H)
127-05: Two electric capstans (I to L)
127-06: Two depth charge racks (M, N)
127-07: Two platforms with railing (O, P)
127-08: Four ladders (Q to S)
PB: Five 2.3 x 4mm PB screws
Take two more skylights A from frame 127-02 and
glue them in place at the forward end of the upper
deck section 126-01, as shown.
Place the eighth upper deck section 126-01 on
your worktop. Separate one of the skylights A from
the frame 127-02 and glue it in place between the
two larger skylights fitted in the previous stage.
47
