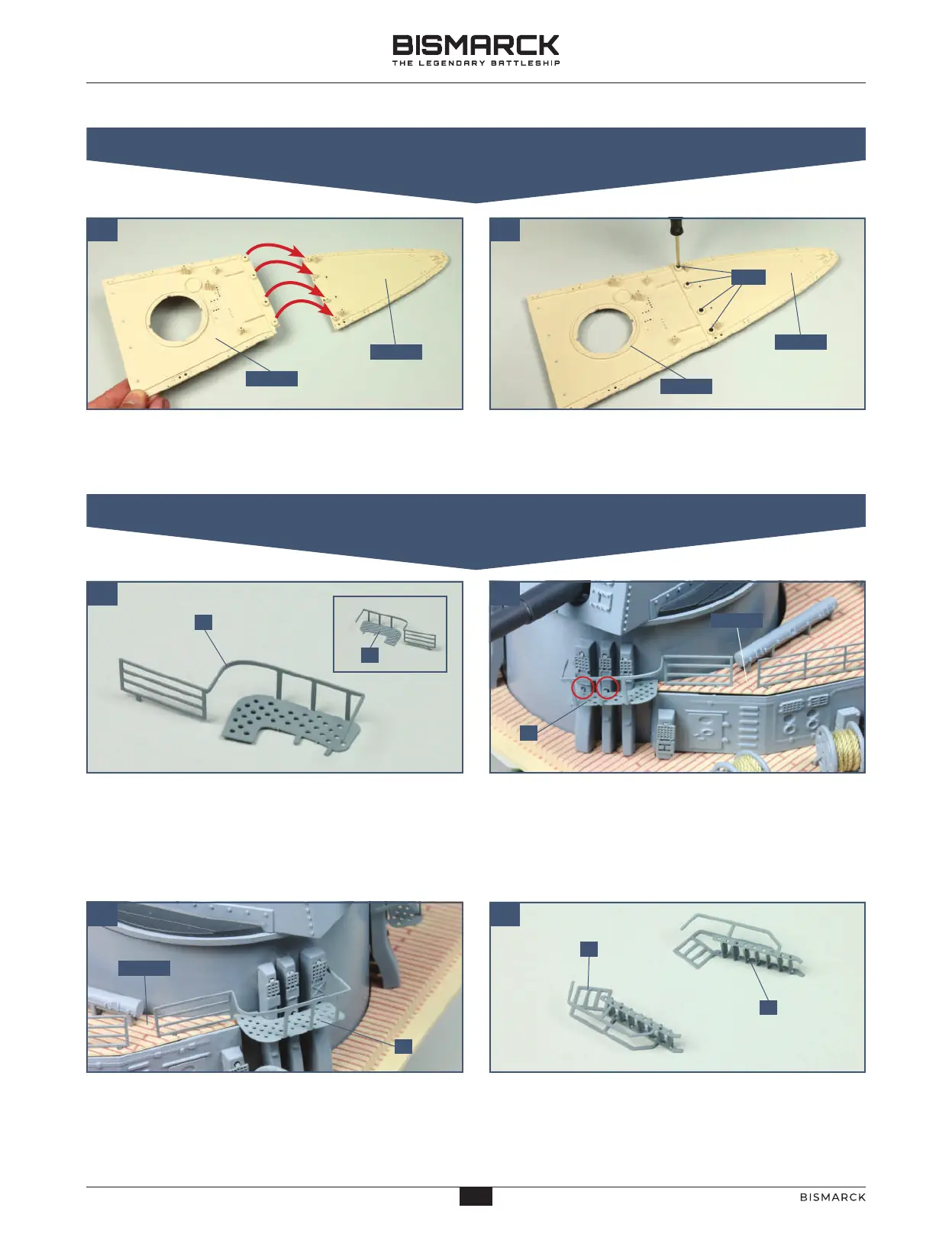

03. ASSEMBLING THE AFT DECK SECTIONS
02
01
04
04. PLATFORMS AND LADDERS FOR THE AFT SUPERSTRUCTURE
Carefully turn the upper deck sections, 126-01 and
127-01, upside down, taking care not to dislodge any
details. Align the screw holes, as indicated.
Use four PB screws to fix the two deck sections
together, as shown.
Take the two platforms with railings from the frame
127-07. Bend the parts to create two walkways that
are mirror images of each other (O and P).
Check the fit of walkway O on the starboard side of
the aft superstructure. Tabs on the side of the
platform fit into holes in the vents on the gun turret
(circled), and a peg on the bottom of the railing fits
into a hole in deck covering 102-01. Glue in place.
Take the ladders Q and R from frame 127-08. Bend
the handrails upwards and twist the steps to create two
ladders that are mirror images of each other, as shown.
The second walkway, P, is glued to the two vents and
the deck covering 102-01 on the other side of the gun
turret, in a similar way.
