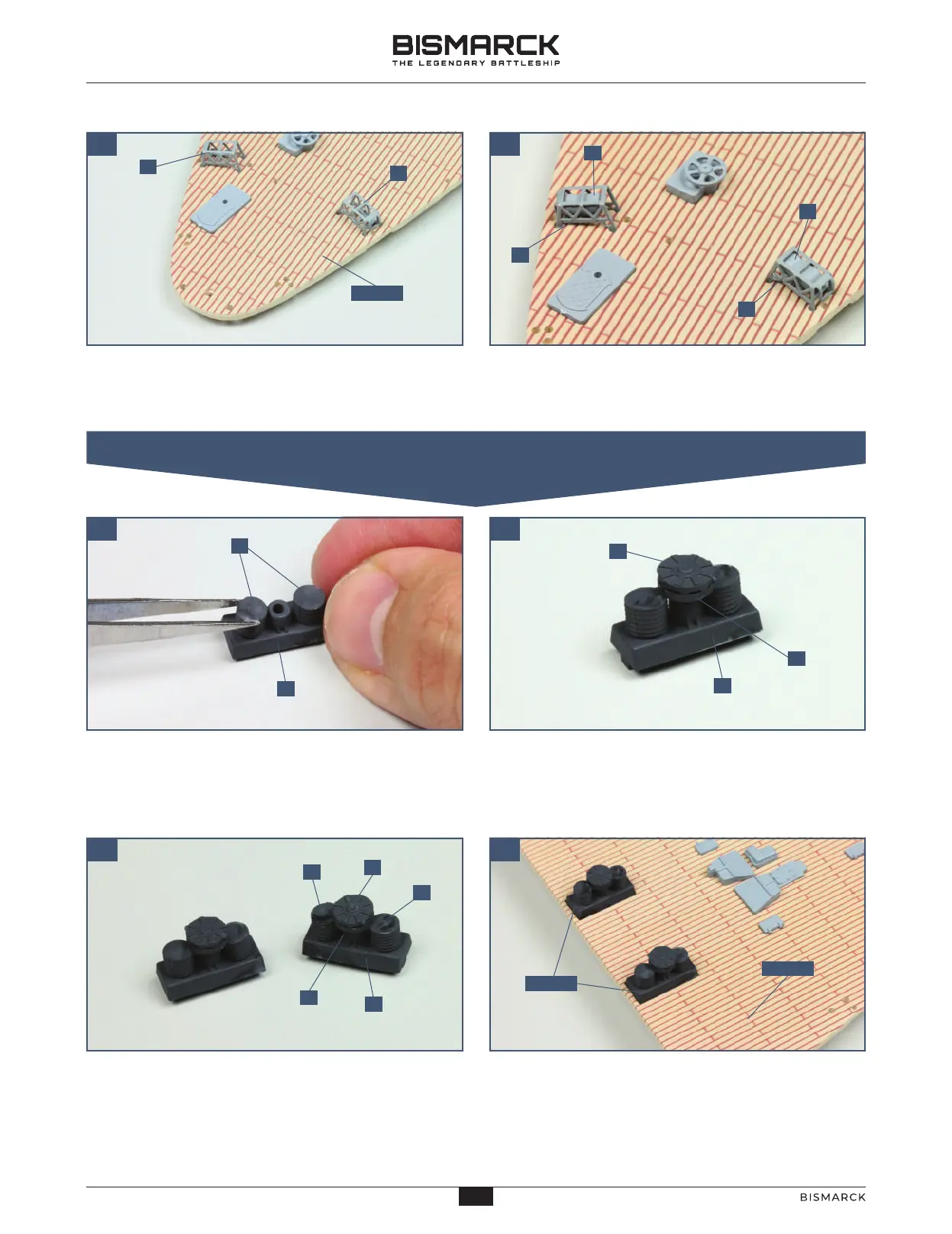

02. ASSEMBLING THE AFT CAPSTANS
04
Build a second, identical, capstan using a base plate I,
two rope drums K, and two parts of the capstan head
J and L, as shown.
Glue the two electric capstans made with parts from
frame 127-05 in place at the forward edge of the aft
upper deck section 127-01, as shown.
12701
K
I
12701
M
N
M
N
H
H
I
J
L
K
I
L
J
K
12705
10
01 02
Glue the two depth charge racks M and N in place
on the upper deck section 127-01, as shown.
Glue the depth charges H from frame 127-04 inside
each of the depth charge racks.
The parts from frame 127-05, are used to make two
capstans. Take a base plate I and glue two rope drums
K in the recesses on either side of the central socket.
The pin on the underside of capstan head L
passes through the lower part J and is glued into the
corresponding hole in the centre of the base plate I.
