01. DETAILS FOR THE GUN TURRET
01 02
12805
12801
12818
PB
12802
12803
12804
12806 12807
12808
12809 12810
12811
12812 12813 12814
12815
12816 12817
12803
12808
12803
12808
12808

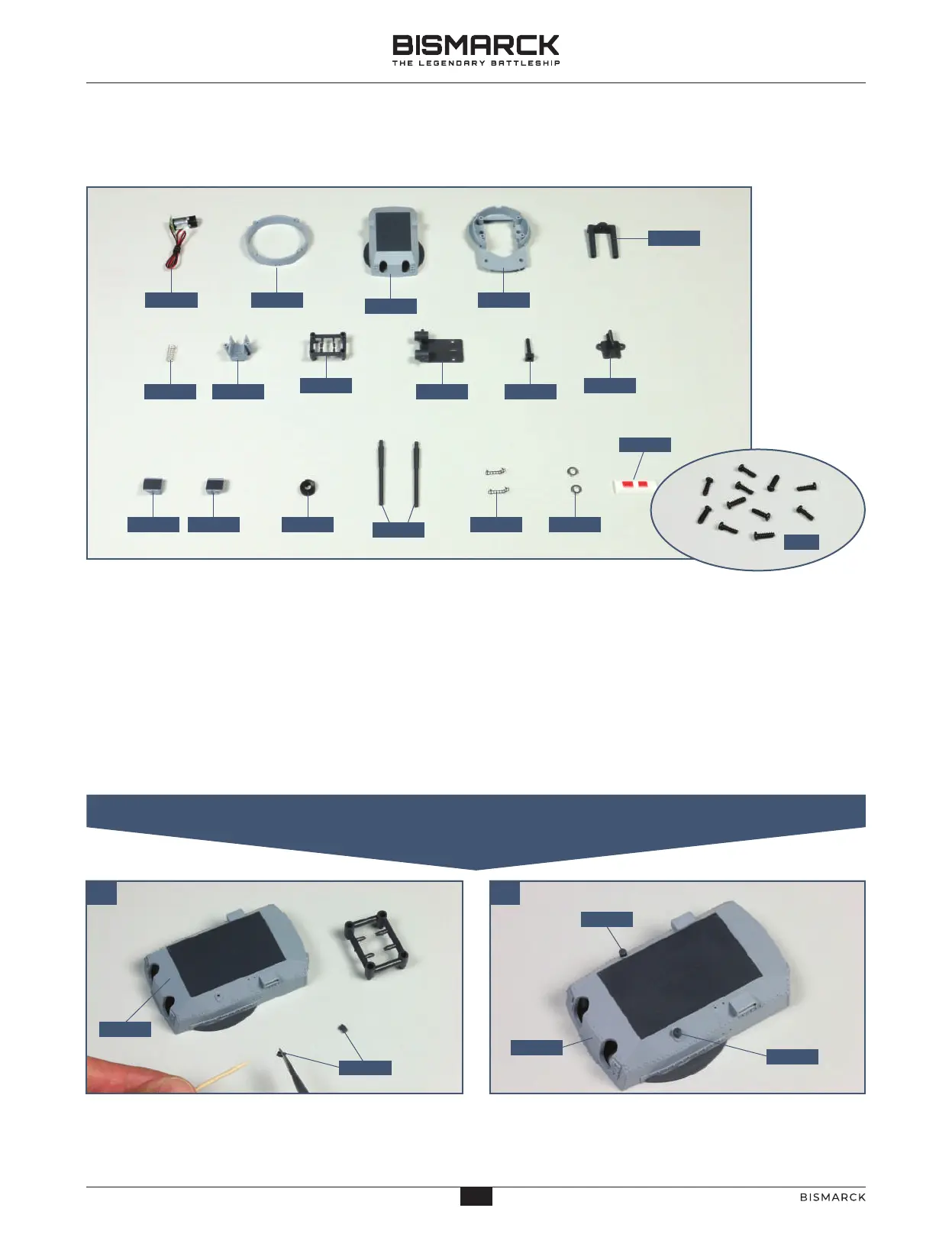

STAGE 128
THE FOURTH 38CM GUN TURRET
COMPONENTS CHECKLIST
128-01: Motor
128-02: Barbette
128-03: Gun turret housing
128-04: Base of the turret
128-05: Connector for barrels
128-06: Tension spring
128-07: Motor mounting
(upper part)
128-08: Two periscopes
128-09: Twin barrel cradle
with base plate
128-10: Clutch shaft
128-11: Motor mounting
(lower part)
128-12: Left side rangefinder
arm hood
128-13: Right side rangefinder
arm hood
128-14: Ring
128-15: Two gun barrels
128-16: Two ladders
128-17: Two washers
128-18: Cable label
PB Eleven 2 x 6 mm PB screws
When you have checked the fit of the periscopes in
the holes on the sides of the gun turret housing, apply
a little superglue to the periscopes and fix in place.
Place the gun turret housing 128-03 on your worktop.
Remove the two periscopes 128-08 from the frame
and check the fit in the two holes on either side of the
turret housing. Have some superglue ready.
