Agora Models Bismarck - Page 53

03 04
01
02

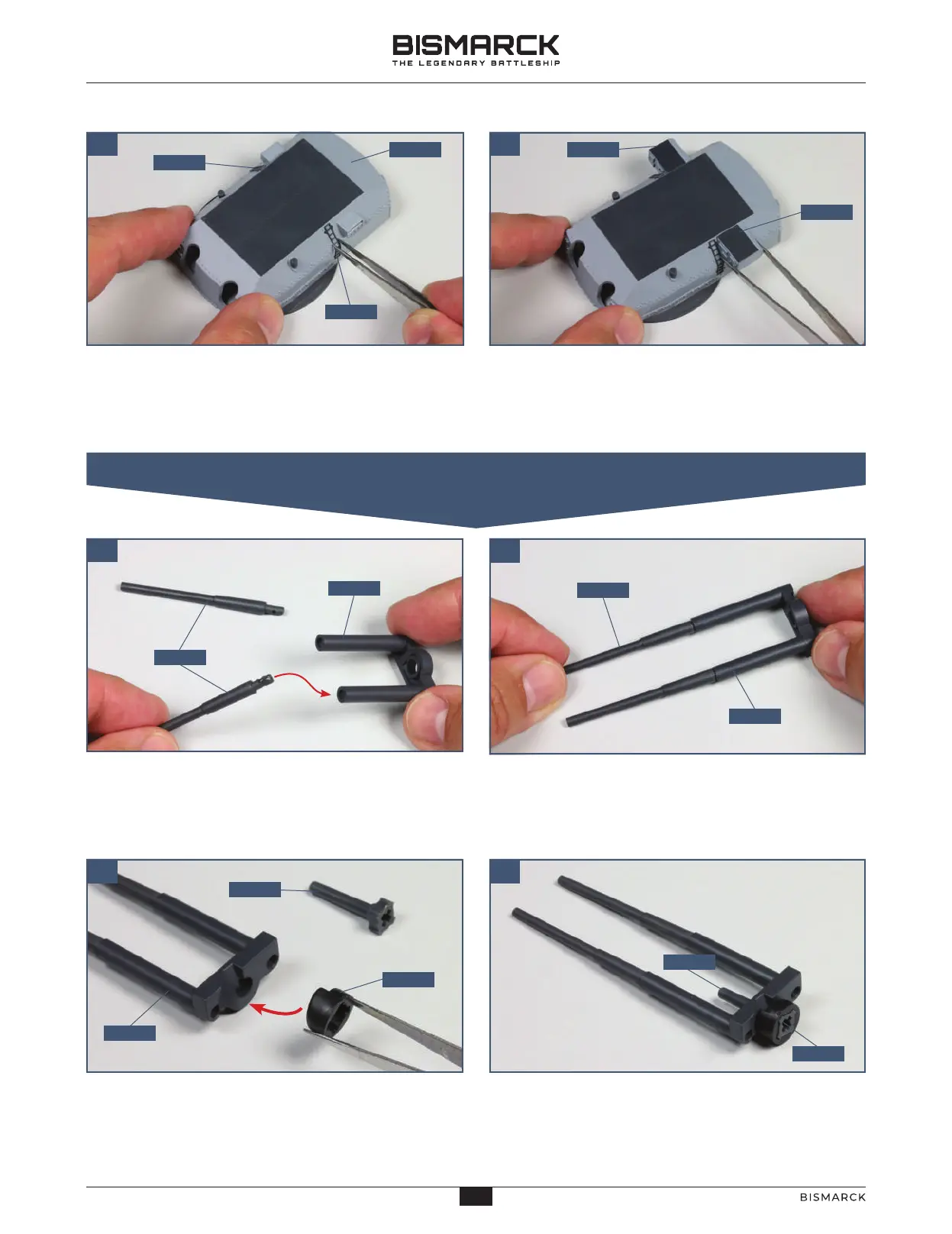

Take the two ladders 128-16 and check how they
fit on each side of the gun housing 128-03. Glue
in place, as shown.
Glue the right rangefinder hood 128-13 and the left
rangefinder hood 128-12 to the raised projections
behind the two ladders.
Place the connector 128-05 and the two gun barrels
128-15 on your worktop. Apply a little superglue to the
end of one of the barrels and fix it in place in the
connector, as indicated.
Glue the second gun barrel 128-15 in place in the
other socket on the connector 128-05.
Fit the ring 128-14 against the back of the connector
128-05, so that the shaped edges match. Have the
clutch shaft 128-10 ready.
Insert the end of the clutch shaft 128-10 into the ring
128-14 and push it through so that the wide end of
part 128-10 is flush with the edge of the ring 128-14.
03 04
02. ASSEMBLING THE GUN BARRELS AND MOTOR
12803
12816
12812
12813
12816
12805
12815
12805
12815
12805
12814
12810
12814
12810
