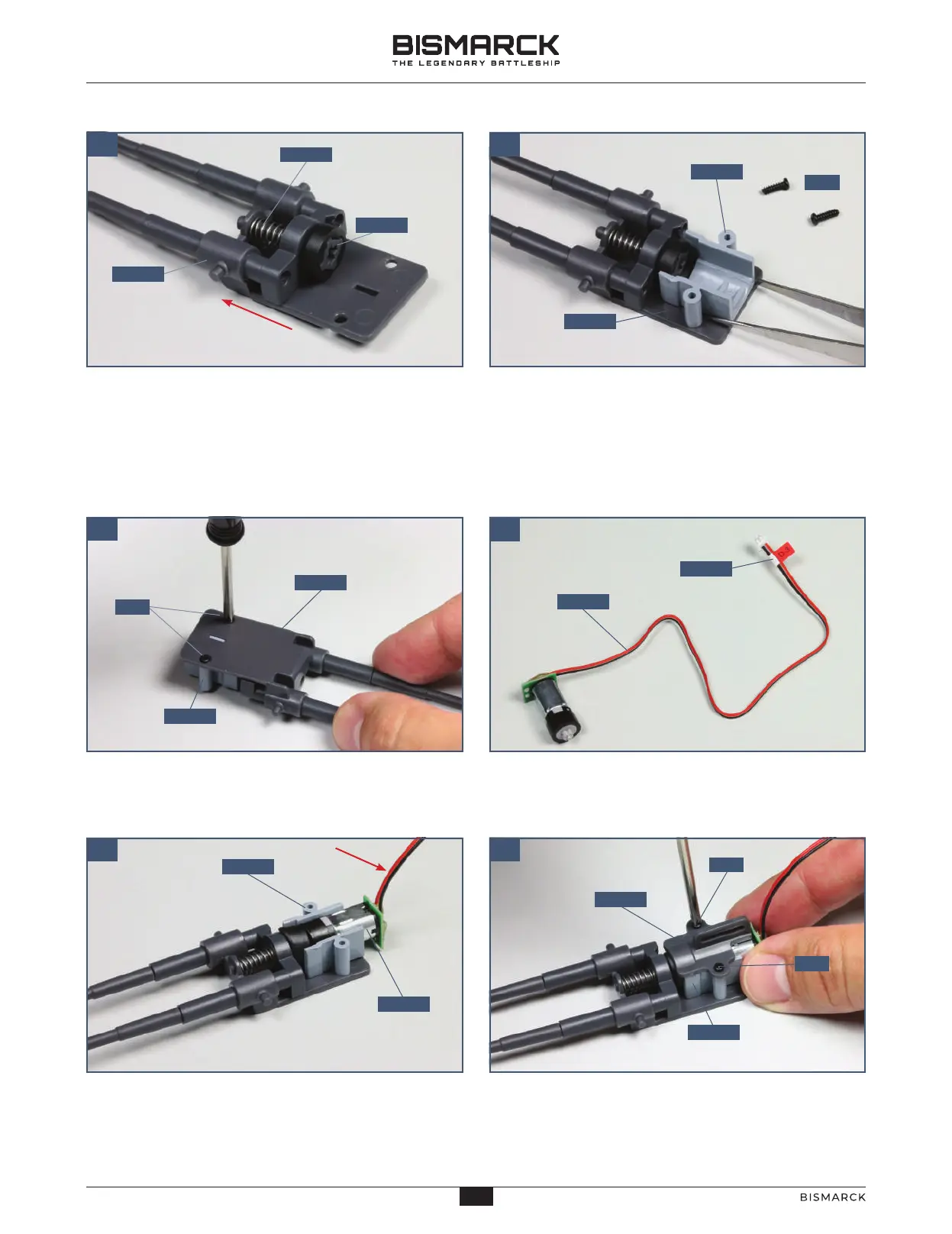

Fit the tension spring 128-06 on to the clutch shaft
128-10. Turn the assembly over and fit the gun barrels
into the cradle 128-09 in the direction indicated. The
clutch shaft 128-10 fits into the central hole in the
cradle. Push the barrel connector backwards and
forwards a few times to ensure that it moves freely.
Place the upper part of the motor mounting 128-07
on the base plate of the barrel cradle 128-09, as
shown. You will need two PB screws.
Turn the assembly over and fix the upper part of the
motor mounting 128-07 to the base plate 128-09
using the two PB screws.
Take the motor 128-01 and the cable label 128-18.
Remove the label from its backing and wrap it around
the end of the cable, as shown.
Fit the motor 128-01 into the motor mounting
128-07. Make sure that the cables on the circuit board
of the motor 128-01 are in the direction shown
(arrow).
Fit the lower part of the motor mounting 128-11 on
the upper part 128-07. Fix the parts together using
two PB screws.
12806
12807
12818
12801
12807
12810
12809
PB
12809
12807
12809
PB
12801
12807
12811
PB
PB
