01

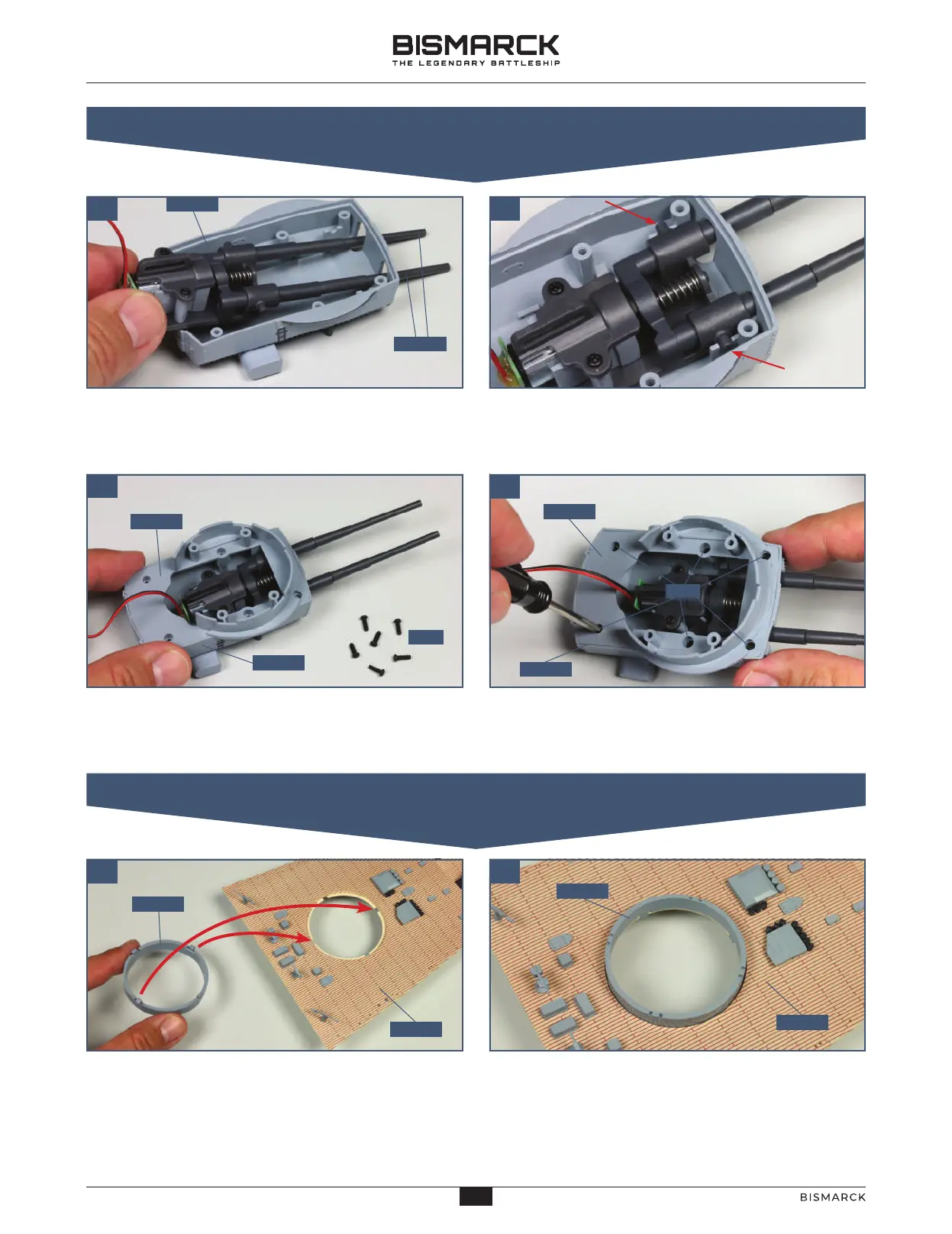

Fix the base 128-04 in place on the underside of the
gun housing 128-03 using six PB screws, as shown.
03
04
02
Fit the base of the turret 128-04 on the underside of
the gun housing 128-03, with the wire running
through the base 128-04. You will need six PB screws.
Place the turret housing 128-03 upside down on your
worktop. Fit the two gun barrels 128-15 through the
holes in the front of the housing, as shown.
Pegs on the sides of the cradle fit into raised brackets
inside the gun housing (arrows) to hold the assembly
in the correct position.
Take the aft upper deck section 126-01/127-01
and fit the small tabs on the barbette 128-02 into
the recesses around the opening on the upper deck.
This shows the barbette 128-02 positioned on the
upper deck section 126-01.
NOTE: The two AA guns shown in steps 1 and 2
will be fitted in a future stage.
12802
12815
12803
12803
12804
PB
PB
12803
12804
12601
12802
12601
01 02
03. FITTING THE GUN BARRELS INTO THE TURRET HOUSING
04. FITTING THE BARBETTE
