01
Completed work
The fourth 38cm gun turret has
been assembled, with the barbette
fitted into the upper deck. Two
washers have been inserted to give the
rudder motor a better fit.
03
02
04

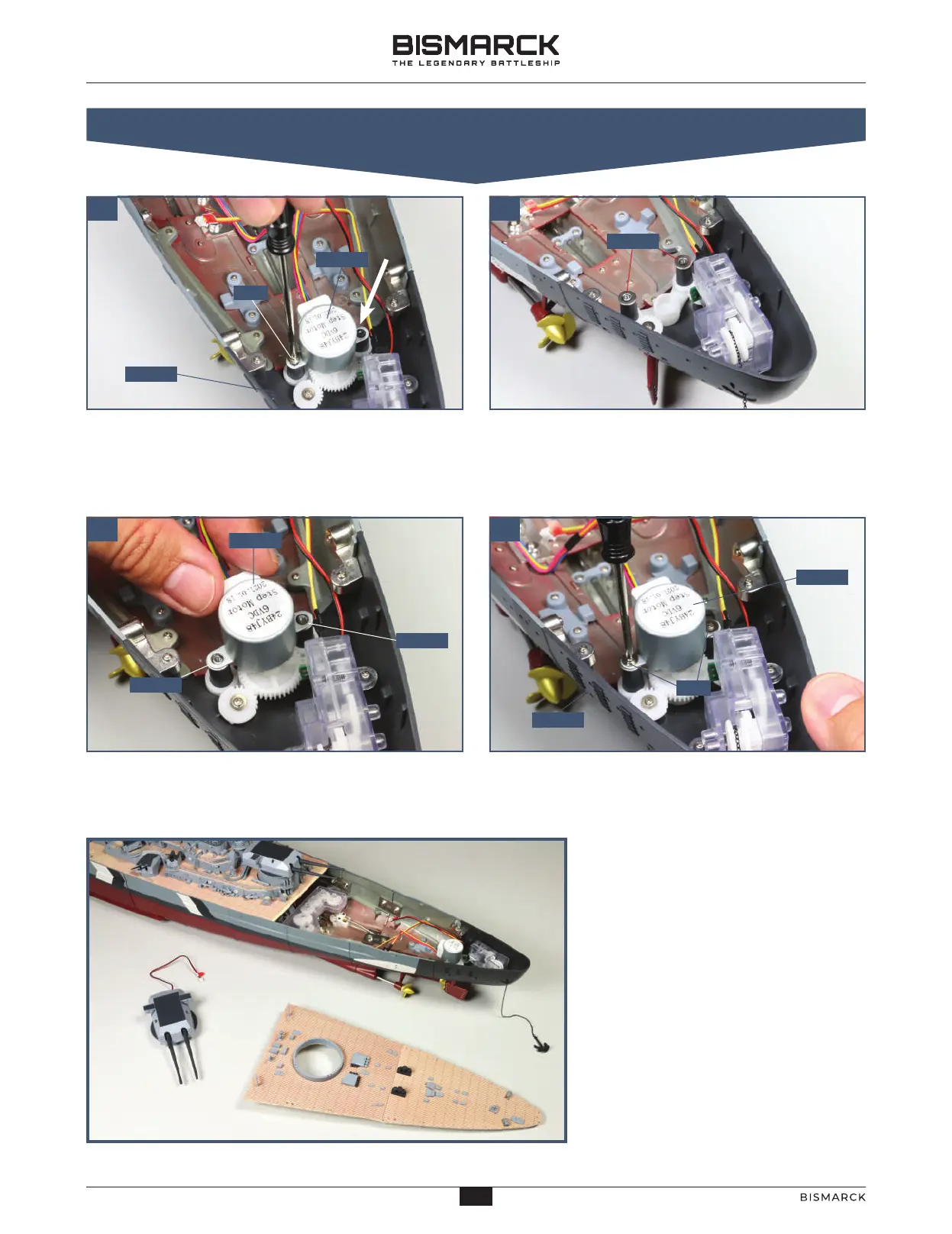

Fit the motor 123-01 back in place so that the two side
tabs rest on washers 128-17, as shown. Ensure the
rudders are in the correct position as shown in stage 123.
Fix the motor 123-01 back in place using the
two PM screws.
Fit a washer 128-17 on top of each of the raised screw
holes where the motor was fitted.
Remove the two PM screws holding the motor 123-01
in place at the rear of the hull assembly. The arrow
indicates where the second screw has been removed.
Attach the cable label 121-03 (D2) to the cable of
the motor for the propellers 121-01 near the
connector, as shown.
11801
12301
12817
12301
11801
PM
12817
12301
12817
PM
05. TWO WASHERS FOR THE RUDDER MOTOR
