02. FITTING THE SECOND SIDELIGHT
(
NAVIGATION LIGHT
)

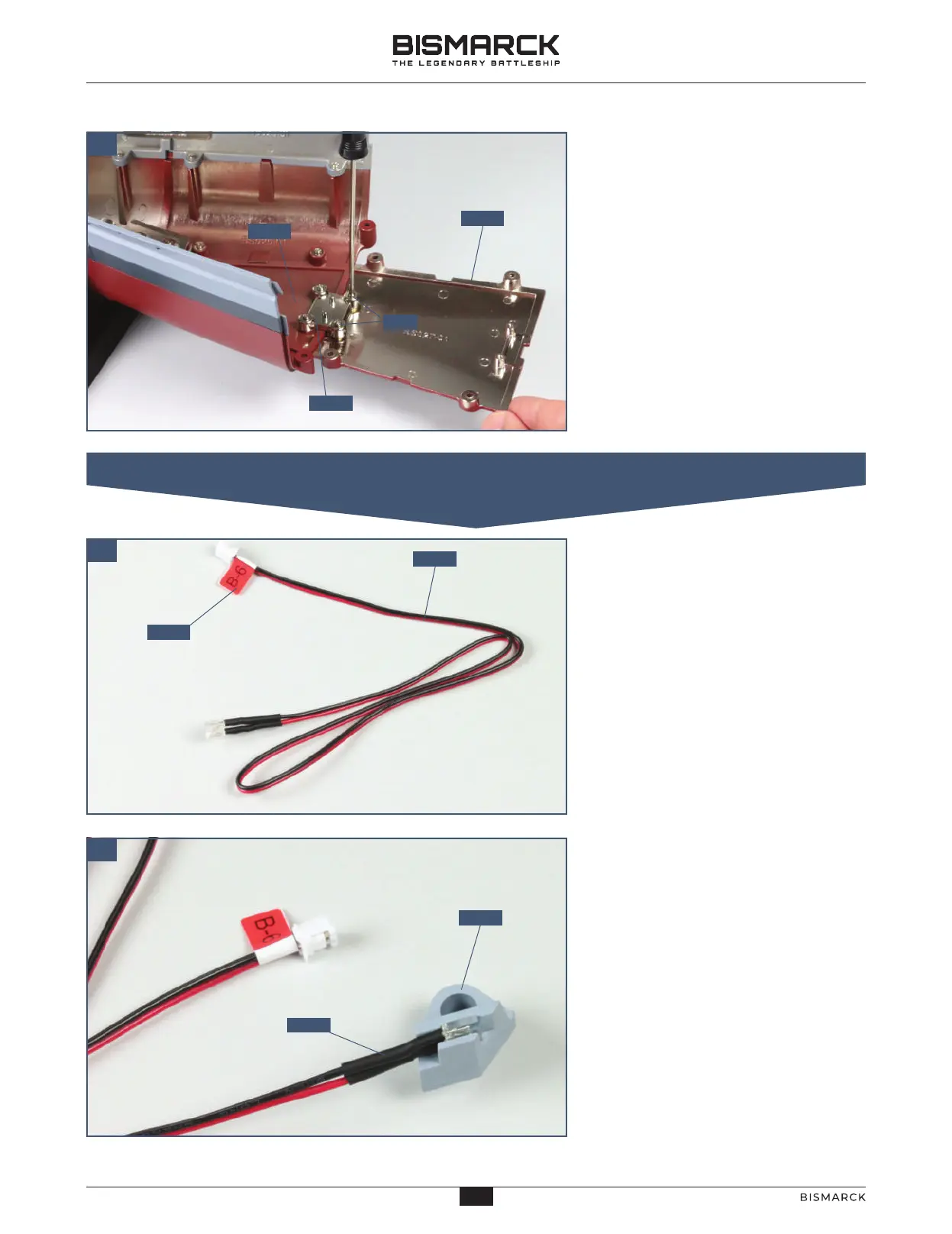

Position the hull section 27-01
so that it is aligned with part 13-01 and
the pins on part 27-01 fit into the two
free sockets on the connector 27-02.
Fix in place with two PM 2 x 4 mm
silver screws.
Take the cable 27-04 and the label
27-05. Carefully lift the label off the
backing and wrap it around the socket
end of the cable.
Fit the LED on the other end of the cable
into the LED holder 27-03.
2701
2702
PM
2705
2704
2703
2704
1301
