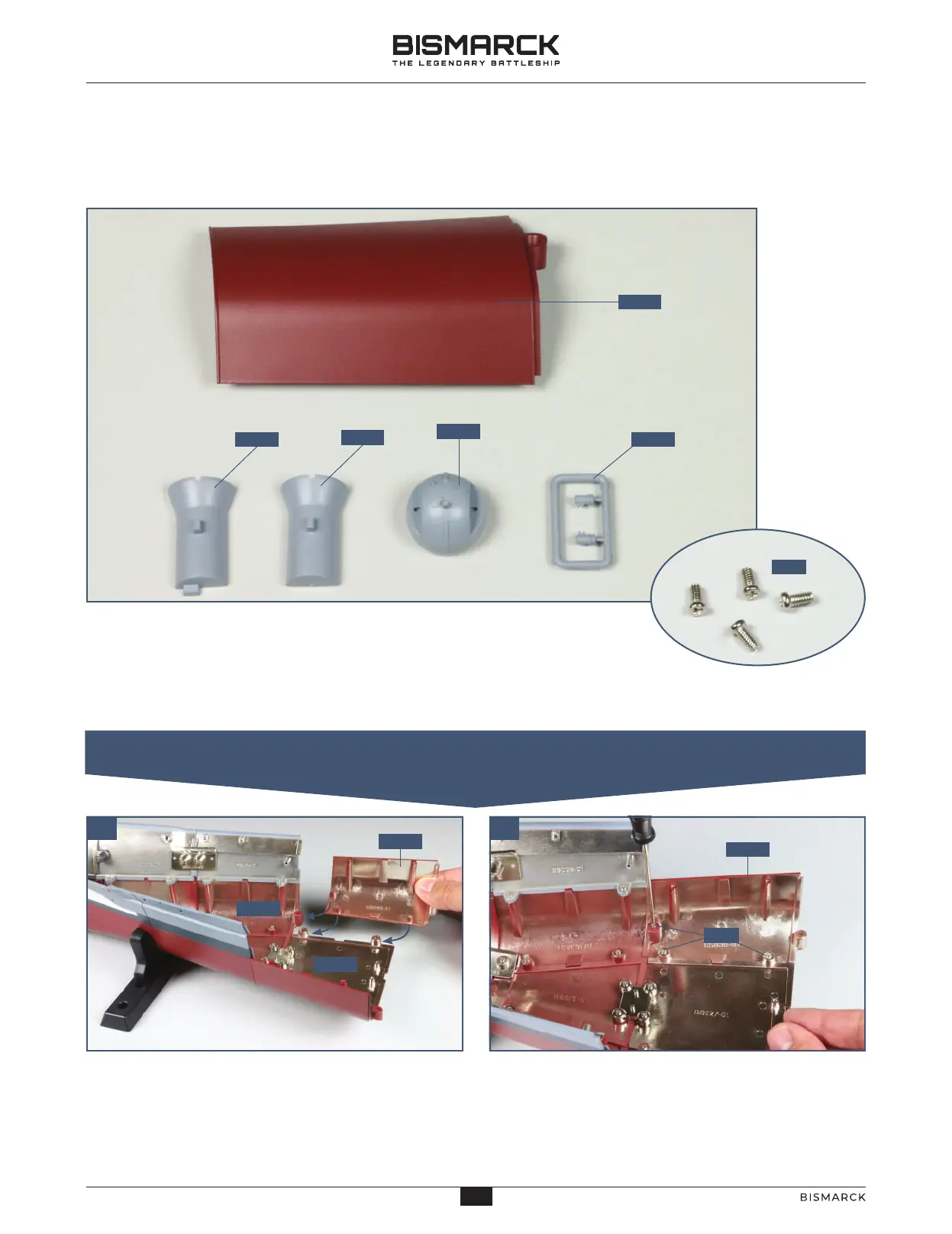

01. FITTING THE NEXT HULL SECTION
STAGE 30
HULL SECTION AND RANGEFINDER
01
Place the hull assembly on your work surface. Fit the
pegs on the lower right hull section 30-01 into the
sockets in the hull section 20-01 and 27-01 as shown.
Attach the hull section 30-01 to the rest of the hull
using three PM 2 x 4 mm screws.
02
COMPONENTS CHECKLIST
30-01: Lower starboard
hull section
30-02: Half director
tower
30-03: Half director
tower
30-04: Rangefinder
dome
30-05: Two
rangefinder
arms
PM: Four 2 x 4 mm PM
screws
