Agora Bismarck - 02. ASSEMBLING THE FORWARD STARBOARD RANGEFINDER (WACKELTOPF)

3004
3002
3003
3003
3002
3004
3003
3002

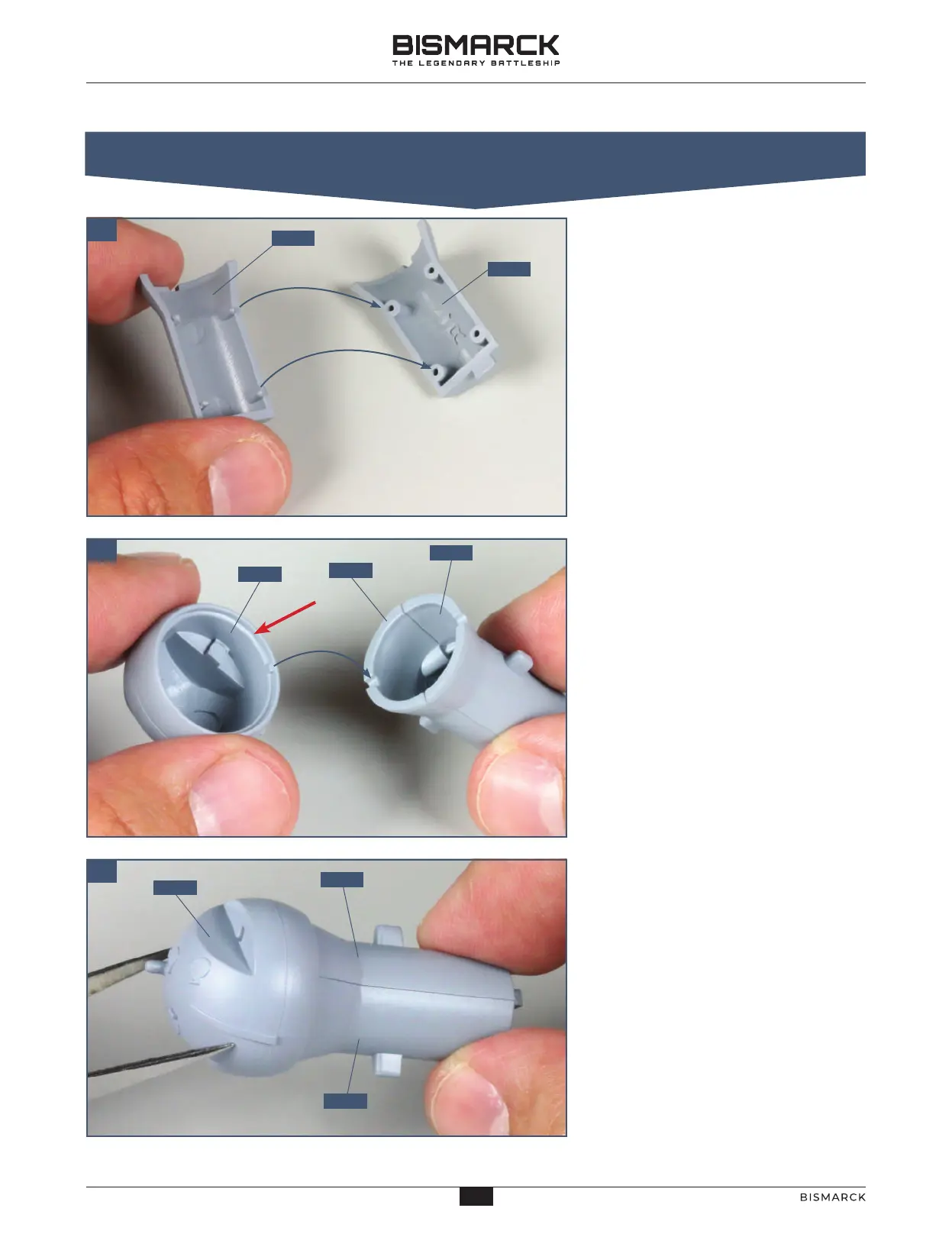

Take the two halves of the first tower,
30-02 and 30-03 and check that the
pegs on part 30-03 fit into the holes on
part 30-02. Apply a little superglue to
the pegs and fix the parts together.
(Wackeltopf was the German nickname
for the domed rangefinders: the word
translates literally as wobbly pot.)
With the two halves of the tower, 30-02
and 30-03, joined together, check the fit
of the dome 30-04 on top of the tower.
Study this photograph and step 3
carefully to ensure you have the correct
alignment, so that the raised areas
around the rim of the dome will fit into
the notches in the tower. Apply a little
superglue inside the rim of the dome,
indicated by the red arrow.
This shows the dome 30-04 being
mounted on the tower.
