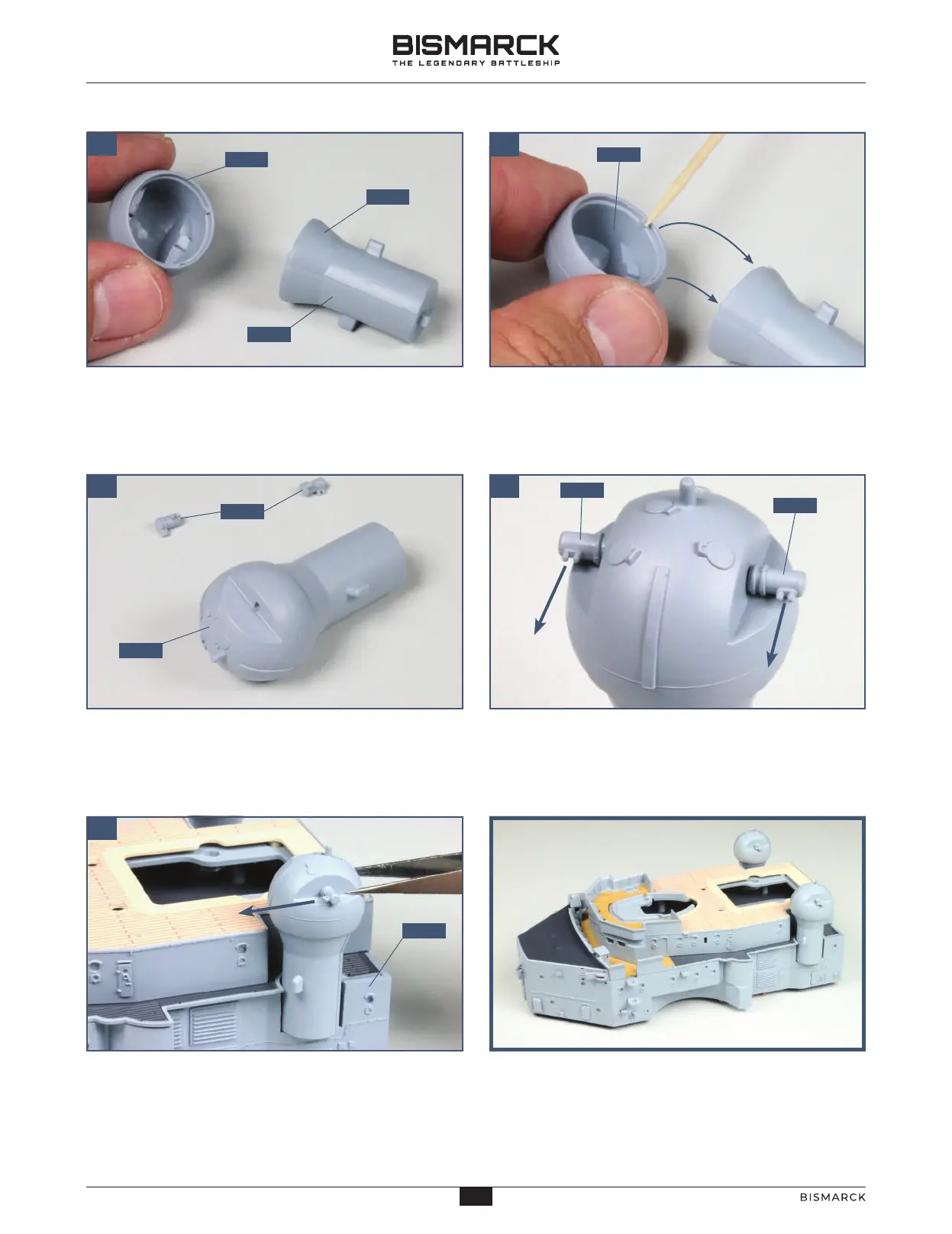

Apply a little superglue around the inner rim of the
dome 31-05 and fix in place on the top of the tower
so that the raised areas on the inside of the dome fit
into the recesses at the top of the tower.
Completed work
Another section of the hull has been fixed in place,
and the second of the cupola-covered rangefinders
has been assembled and fitted to the superstructure.
02
04 05
03
06
With the two halves of the tower fitted together,
check the fit and orientation of the rangefinder dome
31-05. Read the following steps to ensure you have
the dome the right way round before you continue.
After fitting the dome 31-05 to the tower, you need
to position the rangefinder arms 31-06. Cut the
rangefinder arms from the frame and check the fit
and orientation.
Fit the rangefinder arms 31-06 into the recesses in
the dome, ensuring that they are pointing the right
way, as indicated by the arrows.
Check the fit of the rangefinder tower on the port
side of the bridge deck 26-01. Note that the
rangefinder arms should point forwards. When you
are happy with the position, glue in place.
38
38
