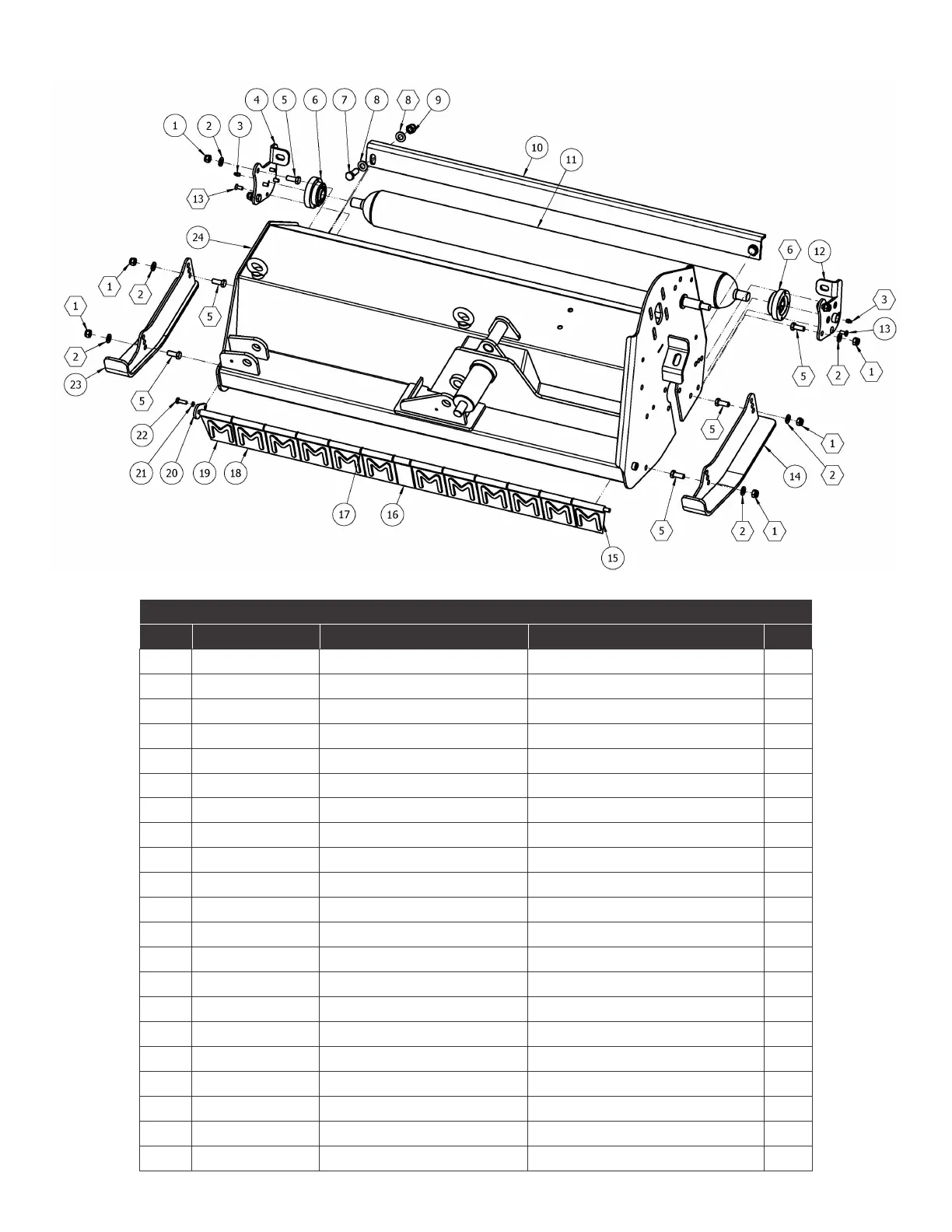

AGRI EASE BE-AGL125F - Exploded View & Parts Lists; Exploded View 1-1 & Parts; Exploded View 1-2 & Parts

BE-AGLxxxF USER MANUAL 13
1-1
REF SYSTEM NO. PART NO. DESCRIPTION QTY
1 503010763 DIN985-M12 Thin nut
8
2 506010057 GB97.1-12 Flat gasket
8
3
509010008 GB1152-M8X1 Oil cup 2
4 810240078 EFAGL165A-1200-00
Roller hanging board (L) 1
5 501011126 GB5783-M12X30
Screw bolt 8
6 511040007 EF100.00.012
UC205 bearing 2
7 501011888 GB5786-M14X1.5X40 Screw bolt
2
8 506010058 GB97.1-14 Flat gasket
4
9 503010764 DIN985-M14 Thin nut
2
10-1 710420001 EFAGL105A-0000-01 (L=1021) Scraper (105)
1
10-2 710280001 EFAGL125A-0000-01 (L=1221) Scraper (125)
1
10-3 710260001 EFAGL145A-0000-01 (L=1421) Scraper (145)
1
10-4 710240014 EFAGL165A-0000-03 (L=1621) Scraper (165)
1
10-5 710390001 EFAGL185A-0000-01 (L=1821) Scraper (185)
1
11-1 801140004 EFG100.012 (L=1027) Roller (105)
1
11-2 801160017 EFG120.012 (L=1227) Roller (125)
1
11-3 801180004 EFG140.012 (L=1427) Roller (145)
1
11-4 801200004 EFG160.012 (L=1627) Roller (165)
1
11-5 810390011 EFAGL185A-0400-00 Roller (185)
1
12 810240080 EFAGL165A-1300-00 Roller hanging board (R)
1
13 505011721 GB70.3-M8X20 Sunk screw
8
EXPLODED VIEW & PARTS LISTS
1-1
