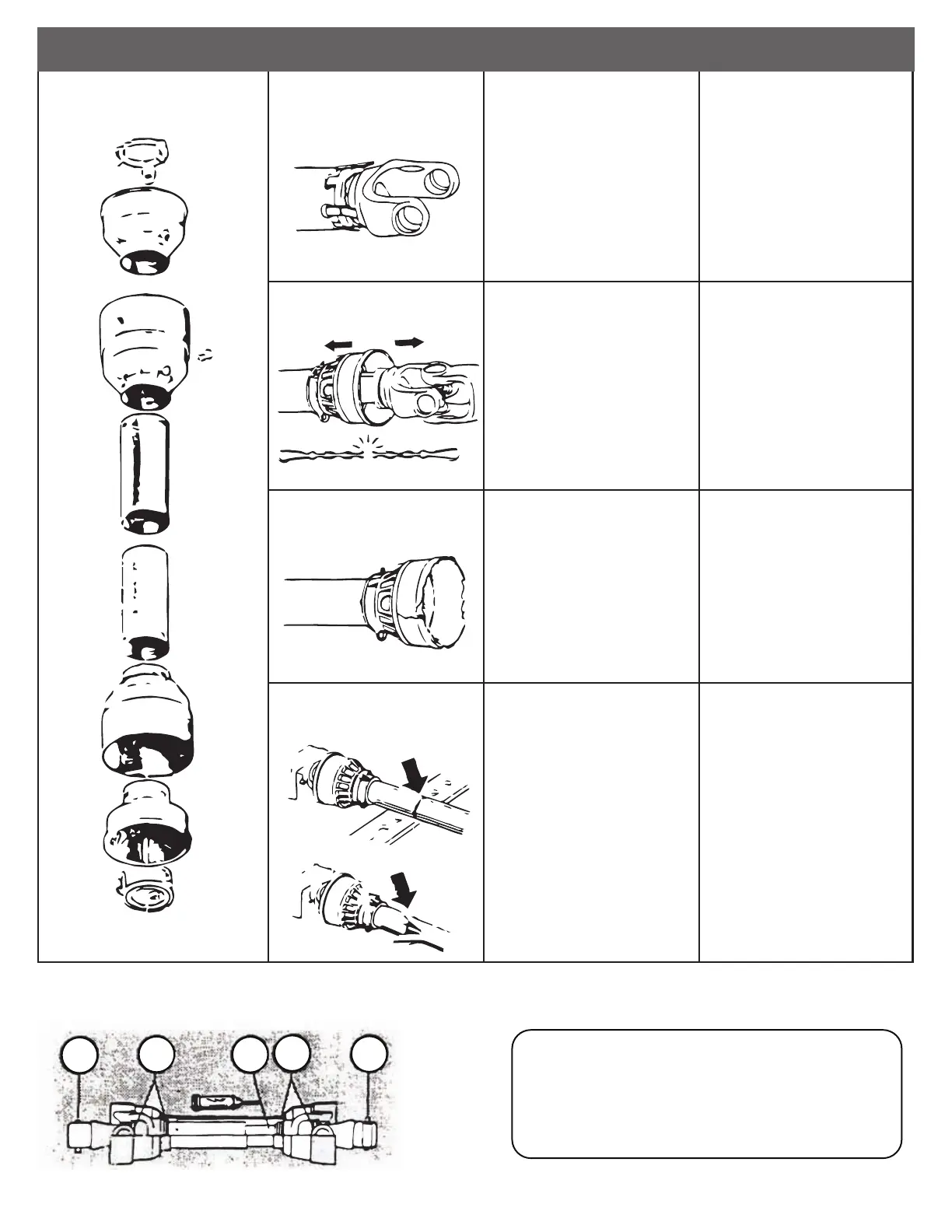

AGRI EASE BE-WC42G - Page 10

SHIELD
- Excessive wear of shield
bearings.
- Insucient lubrication
- Incorrect chain mounting.
- Shield interfering with
implement.
- Follow lubrication instructions
- Mount chain to allow maximum
angularity.
- Avoid contact of the shields
with xed parts of the machine
or tractor.
- Replace shield bearings.
- Chain moving or failure. - Shield interfering with
implement
- Incorrect chain mounting.
- Avoid contact of the shields
with xed parts of the machine
or tractor.
- Mount chain to allow maximum
angularity.
- Replace defective parts.
- Guard cone damaged. - Guard cone in contact with
components on the tractor
and/or implement.
- Excessive Angularity.
- Eliminate interference between
guard cones and any part on
the tractor and/or implement.
- Avoid excessive angle during
cornering or when lifting or
lowering the implement.
- Replace damaged guard cones.
- Eliminate interference between
guard cones and any part on
the tractor and/or implement.
- Replace damaged tubes.
- Adjust guard tubes length with
longer tubes.
- Guards in contact with
components on the tractor
and/or implement.
- Guard tubes overlap too short
or no overlap at all with
extended P.T.O. Drive shaft.
- Guard tubes damaged
(deformed and split at one side).
*Note: Shield bearing must be greased every 8 working hours.
For any additional details (capacity, angle, length), please refer to catalogue.
Sold by:
AVOIDABLE DAMAGES POSSIBLE CAUSES CORRECTIVE ACTIONS
16hr
8hr
8hr
16hr
16hr
