Before installing the control unit and sensors and sirens, please help to test the system firstly, including
wired sensor, power supply, gsm signal, etc.
7.1 Insert SIMcard into Control Unit
In the backside of the control unit, please install the GSM SIM card.
7.2 Connecting the Wired Sensors

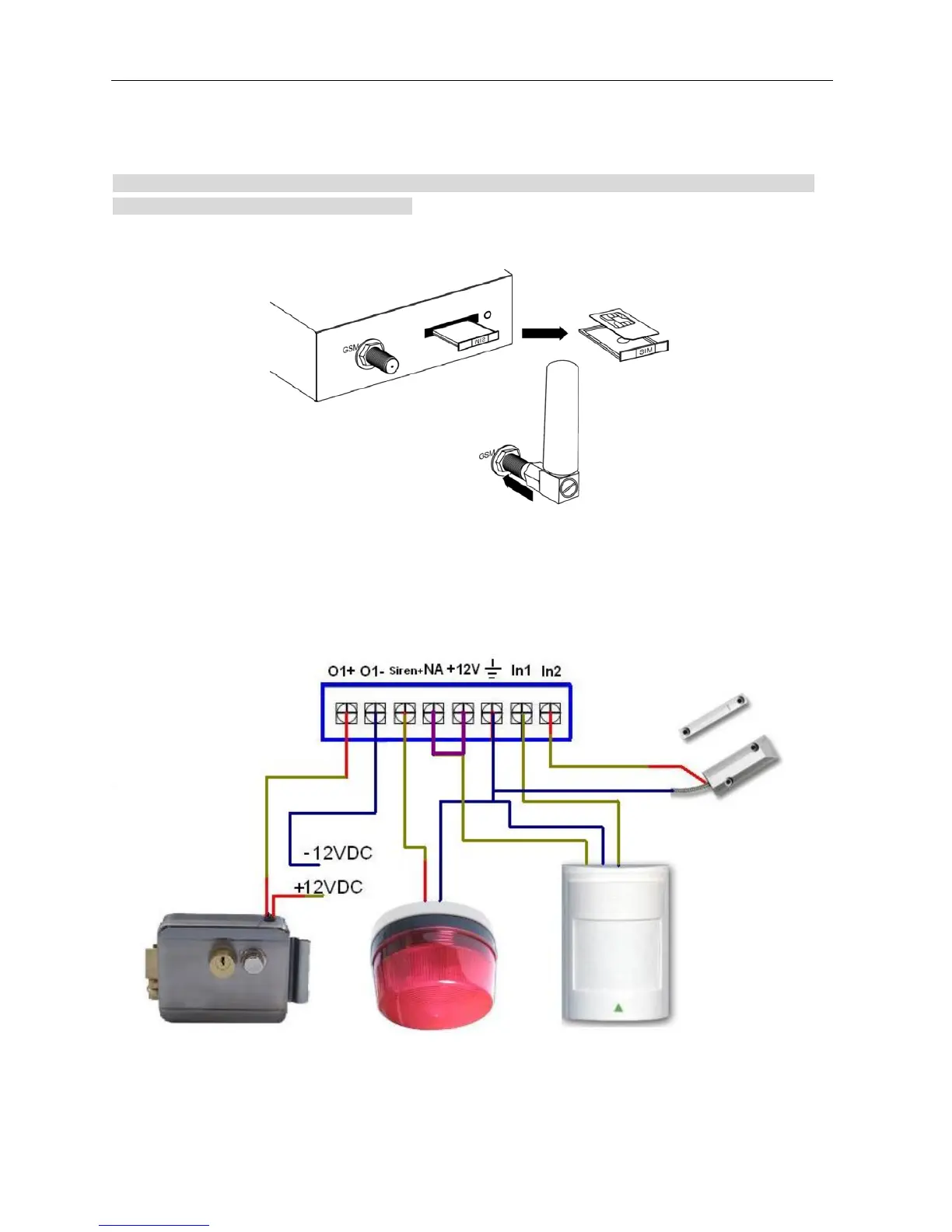

Please help to see below wiring diagram, then fixed the related wired sensors, the sensors connect
to the related digital inputs, and the siren should connect to the Siren and Com connection port.
7.3 Connecting the Electronic Lock or Electricity equipments
