AGS Merlin 1000S+ User Manual

Merlin 1000S+ User Guide
Rev: 06 05-19 10

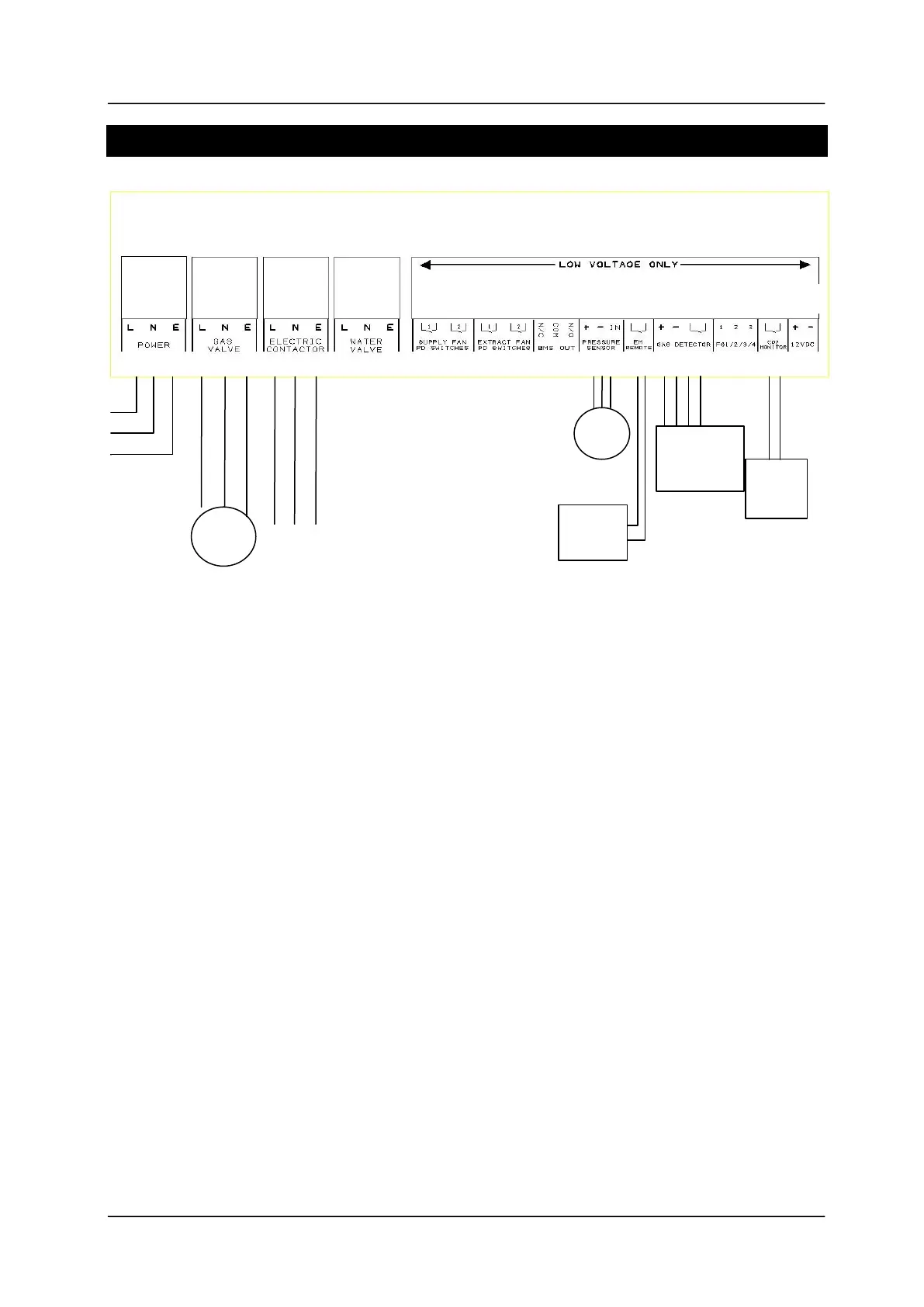

6 1000S+ Wiring Spec
1. LINE VOLTAGE: Mains Input 110-120VAC Single Phase.
2. VALVE OUT: Gas Solenoid Valve Power Output, 110-120VAC, Max 3A.
3. ELECTRIC CONTACTOR: Power Output, 110-120VAC, Max 3A.
4. WATER VALVE: Disabled on this system.
5. SUPPLY FAN PD SWITCHES: Disabled on this system.
6. EXTRACT FAN PD SWITCHES: Disabled on this system.
7. BMS OUT: Normally Closed, Common and Normally Open.
8. PRESSURE SENSOR: Gas pressure transducer, power supply and returned signal (supplied).
9. EM REMOTE: Remote emergency stop buttons and Fire Alarm input wired in series
(purchased separately). VOLT FREE INPUT
10. GAS DETECTOR: Power supply and VOLT FREE INPUT (detectors purchased separately).
11. FS 1/ 2/ 3: Fan Switch output (purchased separately).
12. CO2 MONITOR: (purchased separately). VOLT FREE INPUT
13. 12VDC: Permanent output when there is power at the panel. 50mA max
1
2
L
N
E
Gas Valve
Pressure
Transducer
EM
Stop
CO2
Monitor
Gas
Detector
L
N
E
5 6 7 8 9 10 11 12 13
3
4
