Ahuja CPA-760 - Front & Rear Panel Controls; Speaker Connections

4 85 7 93
2
1
6
18
151617
14
13 12 11
10
-10
6
2 2
+10
6
8
4
0
4
8
LOW IMPEDANCE MIC INPUTS
-10
6
2 2
+10
6
8
4
0
4
8
TAPE
MIC-1
MIC-1
MIC-2
BASS
OUTPUT LEVEL
MASTER
ON -13 -8 -3 0 +3
TREBLE
MIC-2
MIC-3/AUX
MIC-3
MIC
MIC-4/TAPE
MIC-4
PLAY
FF
EJECT
CPA-760
AC/12VDC
AUTO STOP CASSETTE
POWER
6
10
8
0
2
4
6
10
8
0
2
4
6
10
8
0
2
4
6
10
8
0
2
4
6
10
8
0
2
4
21
24
22 2523 26
20
19
FUSE
FUSE 2AT
240V~50Hz
CPA-760
140VA
LINE OUT AUX
12V DC
COM ⇓ ⇓ ⇓ 100V
1. MIC-1 Input Jack Socket
For Connecting a low impedance microphone.
2. MIC-2 Input Jack Socket
For connecting a low impedance microphone.
3. MIC-3 Input Jack Socket
For connecting a low impedance microphone.
4. MIC-4 Input Jack Socket
For connecting a low impedance microphone
5. TREBLE Control
For controlling the high frequency signals.
6. MIC-4 / TAPE Selector Switch
7. FF / EJECT Lever
For fast winding the tape, this lever is pushed in
partially. For ejecting the cassette, it is pushed in
fully.
8. CASSETTE SLOT
The cassette is loaded into the set through this slot.
9. HANDLES
10. POWER switch
11. LED ARRAY
For output level indication.
12. POWER LED
This LED glows to indicate that the set is ON.
13. MASTER Control
For overall adjustment of volume level.
14. BASS Control
For controlling the low frequency signals.
15. MIC-4 / TAPE Volume Control
16. MIC-3 / AUX Volume Control
17. MIC-2 Volume Control
18. MIC-1 Volume Control
19. AC Mains Fuse (Rating 2Amp 250V)
20. AC Mains Cable with plug
21. BATTERY Terminal Strip
For connecting a 12V car battery.
22. SPEAKER Terminal Strip
For connecting speakers or driver units.
23. EARTH Terminal
24. LINE Output Jack Socket
For connecting additional higher wattage amplifier for
obtaining more power output.
25. AUX Input Jack Socket
For connecting an auxiliary source like a CD player,
Tuner, Echo or Audio Mixer etc.
26. ABS Legs
For supporting the unit on its back while handling.

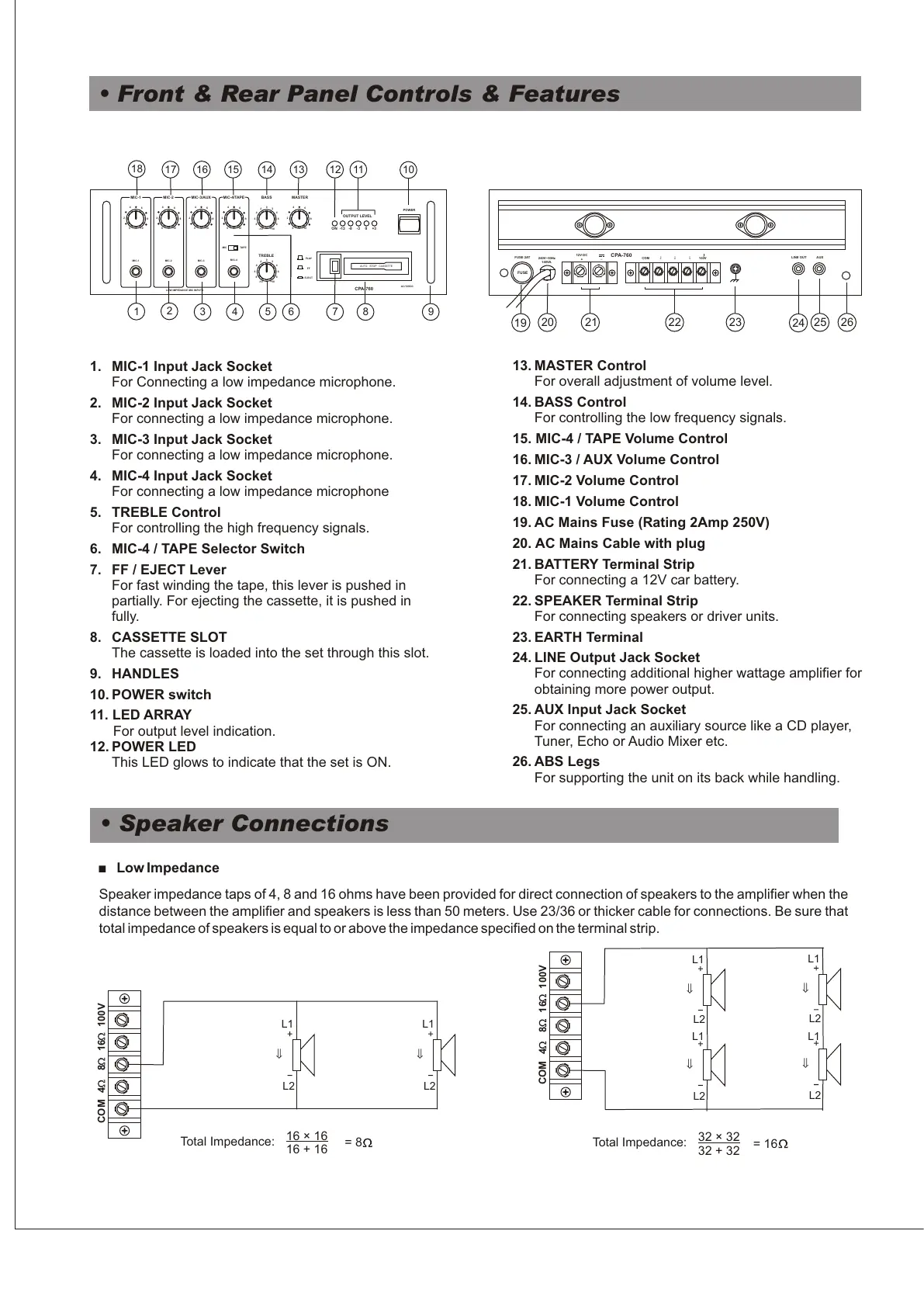

• Front & Rear Panel Controls & Features
• Speaker Connections
16 × 16
16 + 16
Total Impedance:
= 8
4
8 16 100V
COM
󼼨⇓
L1
L2
󼽽⇓
L1
L2
+ Low Impedance
Speaker impedance taps of 4, 8 and 16 ohms have been provided for direct connection of speakers to the amplifier when the
distance between the amplifier and speakers is less than 50 meters. Use 23/36 or thicker cable for connections. Be sure that
total impedance of speakers is equal to or above the impedance specified on the terminal strip.
Total Impedance:
32 × 32
32 + 32
= 16
4
8 16 100V
COM
󼽑⇓
L1
L2
󼽑⇓
L1
L2
󼻞⇓
L1
L2
󼻞⇓
L1
L2
