Fitting the Ei3000MRF Module
To fit the Ei3000MRF Module, first hold the flexible antenna and guide it into its
designated hole in the rear of the unit until about 2/3 of its length is inserted (Fig.
2a). Then, hold the module housing (Fig. 2b) & plug it into the Alarm, being careful
to align the pins and keeping them perpendicular to the base as the module is
inserted (Fig. 2c). Ensure the module is fully home, by checking that it is flush with
the surrounding Alarm housing (Fig. 2d).
5
Pin
Alignment

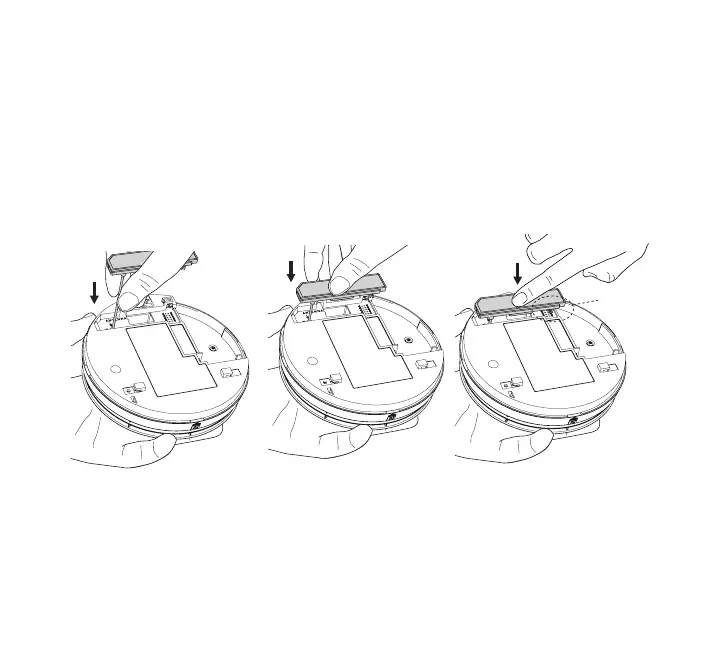

Figure 2a Figure 2b Figure 2c
