Fig.2
Fig.3
1.

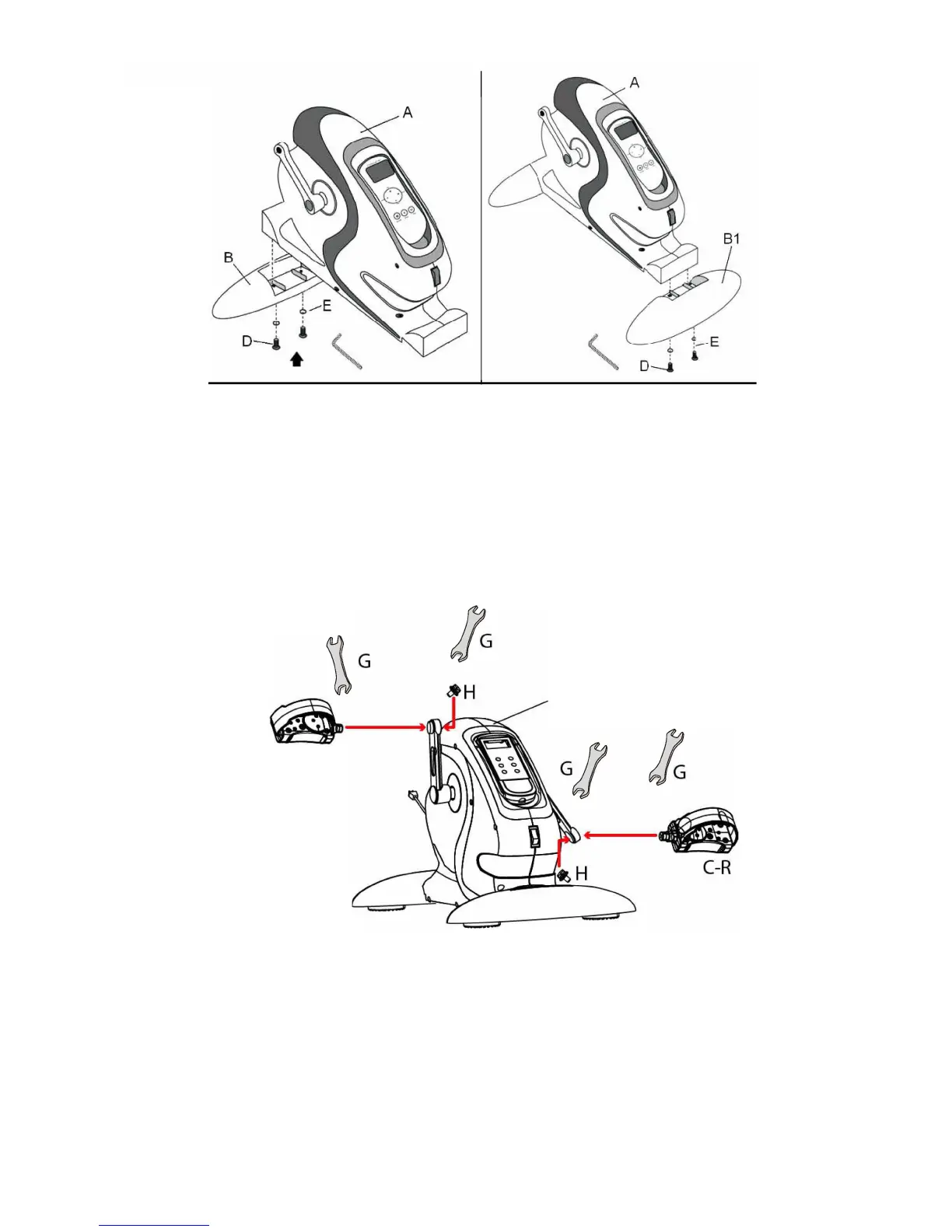

Install the stabiliser bar (B) with the main body (A) as shown in Fig. 2.
2.
Keep the screw (D) and grower washer (E) firmly and drive them slowly with the
hexagonal key (F).
3.
I
nstall the rear stabiliser bar (B 1) m
arked with the main body (A)
as shown in Fig. 3.
4.
Apply the same procedure as step 2 above.
A
C-L
1.
Install the left pedal (C-L) and one screw (H) on the main body (A) as shown in Fig 4.
2.
Screw well using the pedals key (G)
3.
Install the right pedal (C-R) and the other screw (H) on the main body (A)
according to the same procedures as step 1 and 2 above.
4.
Check the pedals are secure before applying any weight
Ver.12/201
6
(2532)
