c Windage adjustments (see Fig. 3):
• Turn windage adjustment screw (6) counterclockwise
to move point of impact to the right (R).
• Turn windage screw (6) clockwise to move point of
impact to the left.
d Elevation adjustments (see Fig. 4):
• Turn elevation adjustment screw (7)
counterclockwise to move point of impact up (U).
• Turn elevation adjustment screw (7) clockwise to
move point of impact down.
e Conrm zeroing by ring at least three shots at a zeroing
target. Check points of impact to conrm accuracy and
repeat zeroing procedure if required.
f Ensure the sight is securely installed on the weapon and
retighten the screw for the locking bar (5) if neccessary.
NOTE: Each click of the adjustment screws (6) (7)
corresponds to approximately 2 cm movement of point
of impact at 100 m or 0.7 in at 100 yds.

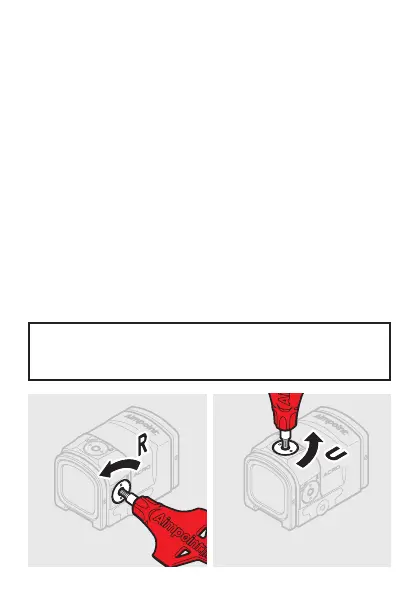

Fig. 3 Windage
adjustments
Fig. 4 Elevation
adjustments
