GF-1DK
Audio Only Tenant Station for GF Series
Aiphone Corporation
1700 130
th
Ave NE * Bellevue, WA 98005
Ph: (800) 692-0200 * Fax: (425) 455-0071
tech@aiphone.com
SPECIFICATIONS:
Power Source: Supplied by system
Call: Varying ring tones from entrance
panel, concierge, or doorbell
Communication: Handset
Capacity: Max. 2 tenant stations per resident
location (no communication between)
Wiring: 2-conductor, common bus
Wire: Aiphone #87200250C, 2 cond. PE
insulated, non-shielded, 11.05 pf/ft
Wiring Distance: GF-BC to farthest Tenant (Audio
line): 980' with 20AWG
Talk Path: Single channel with privacy
Operating Temp: 32 – 104
° F (0 ~ 40° C)
Dimensions (HxWxD):
7-7/8" x 3-1/2" x 2-1/2"
(200 x 89 x 63 mm)
Weight: 0.81 lbs (370g)

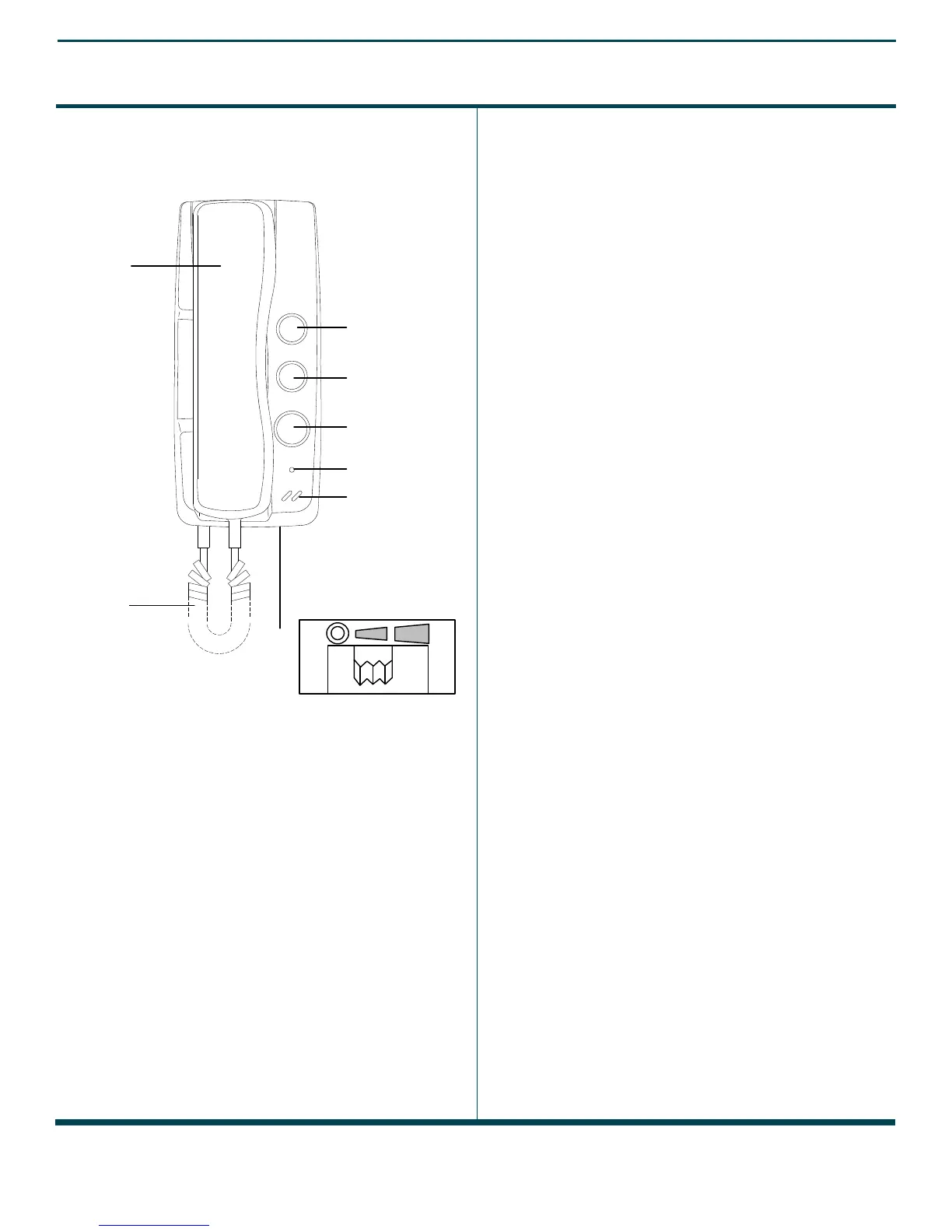

FEATURE CALL-OUT DEFINITIONS:
[1] Handset
[2] Coilcord
[3] Service Button (Option)
[4] Security Guard Call / Light Button
[5] Door Release Button
[6] Call tone off LED
When call tone volume control is set to the MUTED
position, the LED blinks at 4.5 second intervals
[7] Call tone Sounder
[8] Call tone volume control (Muted, Mid, High)
FEATURE CALL-OUTS:
GF-1DK Spec Sheet
0310 Pg. 2
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
Bottom expanded view
MUTED MID HIGH
