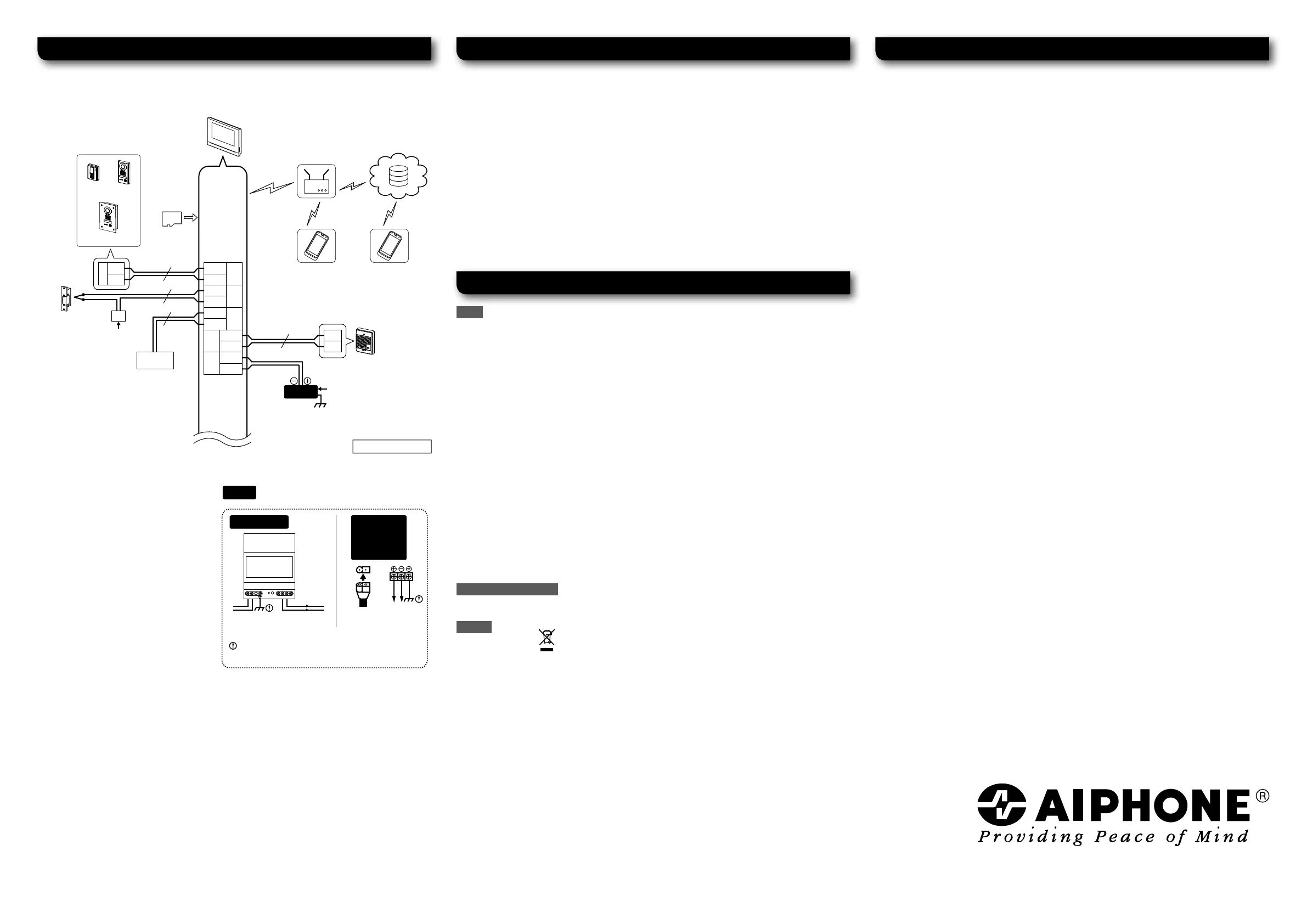

Wireless
LAN router
Cloud server
Internet
2.4GHz WiFi
Call extension
speaker
Mobile device
Video door station
Master monitor station
Electric lock
*1
External unit such as
lightening equipment
*2
* Up to 8 mobile devices can be
registered.
Mobile device
Without grounding, the stations may not
operate normally.
NP: Non-polarized
: Power supply
microSDHC
(Purchased
separately)
*1: An EL-12S (AC 12 V, 0.125 A, DC 12 V,
0.2 A) or equivalent part and a separate AC
transformer (or power supply) are required.
Door release contact: AC/DC 24 V, 1 A
(Minimum contact: 100 mV DC, 0.1 mA)
(N/O dry closure contact L, L).
* Run separate cables for audio/video and
door release.
*2: AC/DC 24V, 1A N/O dry closure contact
(Minimum contact: 100mV DC, 0.1mA)
https://www.aiphone.net/
Wiring Technical precautions Warranty
Regulations
Insert wires securely into each terminal as shown below. Cleaning:
•
Clean all units with a soft cloth and gentle cleaner. Do not spray cleaner directly on unit.
Do not use an abrasive cleaner or cloth.
•
Video door stations are weather resistant.
Wiring:
•
If a short is detected between A1 and A2 of the door station, the unit stops functioning
and the Status LED fl ashes rapidly until the short is removed. Check the wires.
•
If noise is heard from the master monitor station, the wiring is disconnected between the
video door station and the master monitor station.
Trouble:
•
If the station does not respond, reboot the station by pressing the RESET button.
Aiphone warrants its products to be free from defects of material and workmanship under
normal use and service for a period of 2 years after delivery to the ultimate user and will
repair free of charge or replace at no charge, should it become defective upon which
examination shall disclose to be defective and under warranty. Aiphone reserves unto
itself the sole right to make the fi nal decision whether there is a defect in materials and/
or workmanship; and whether or not the product is within the warranty. This warranty
shall not apply to any Aiphone product which has been subject to misuse, neglect,
accident, power surge, or to use in violation of instructions furnished, nor extended to
units which have been repaired or altered outside of the factory. This warranty does not
cover batteries or damage caused by batteries used in connection with the unit. This
warranty covers bench repairs only, and any repairs must be made at the shop or place
designated in writing by Aiphone. This warranty is limited to the standard specifi cations
listed in the operation manual. This warranty does not cover any supplementary function
of a third party product that is added by users or suppliers. Please note that any damage
or other issues caused by failure of function or interconnection with Aiphone products is
also not covered by this warranty. Aiphone will not be responsible for any costs incurred
involving on site service calls. Aiphone will not provide compensation for any loss or
damage incurred by the breakdown or malfunction of its products during use, or for any
consequent inconvenience or losses that may result.
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
NOTE:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
INDUSTRY CANADA
CAN ICES-3 (B)/NMB-3(B)
WEEE
The object area of is the EU.
