Aiphone JOS-1V User Manual

EnglishFrançaisEspañolNederlandsItalianoDeutsch
6

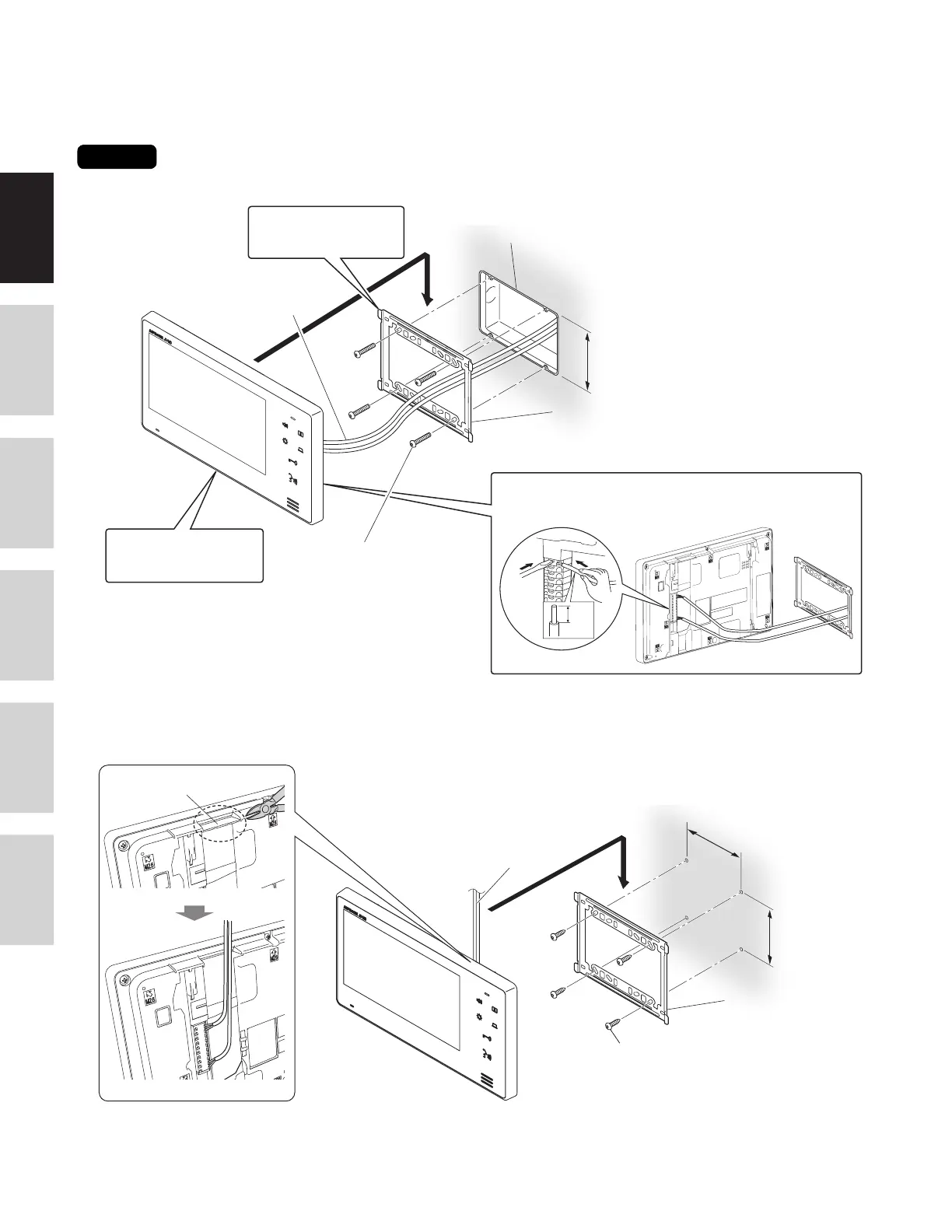

<Back wiring>
83.5mm (3-5/16")
8mm
(3/8")
3-gang box
Mounting screw × 4
(Screw shaft: Ø4.1)
(Slotted Head: Ø8.2 or less
Height 3.0mm or less)
(not included)
Mounting bracket
(attached to the unit with shipment)
Mount the unit on the
mounting bracket.
3
Fasten the mounting
bracket to the wall
1
2
1. Press release button to insert or remove wire.
2. Insert wire into the terminal.
JO-1MD
MOUNTING
Wires
<Surface wiring>
When the wiring is not coming through the wall, the wires can be routed to the top or bottom of the unit. Remove cable inlet plate on
the upper part of the unit to allow passage of the wiring into the unit.
92mm (3-5/8")
83.5mm
(3-5/16")
Mounting bracket
(attached to the unit with
shipment)
Wood mounting screw × 4
(Screw shaft: Ø4.1)
(Slotted Head: Ø8.2 or less
Height 3.0mm or less)
(not included)
Wires
Remove cable inlet plate

Aiphone JOS-1V Specifications

General

Color	Yes
Connectivity technology	Wired
Number of displays supported	-
Display diagonal	7 \
Display technology	LCD
Sensor type	CMOS
Optical sensor size	1/4 \
Minimum illumination	5 lx
IK code	IK08
Product color	Stainless steel, White
Indoor unit housing material	Plastic, Resin
International Protection (IP) code	IP54
Door station operating temperature (T-T)	-20 - 60 °C

Weight and Dimensions

Depth	21 mm
Width	230 mm
Height	130 mm
Weight	470 g
Door station dimensions (WxDxH)	98 x 27 x 173 mm
