Page 2 (Intercom Combinable)

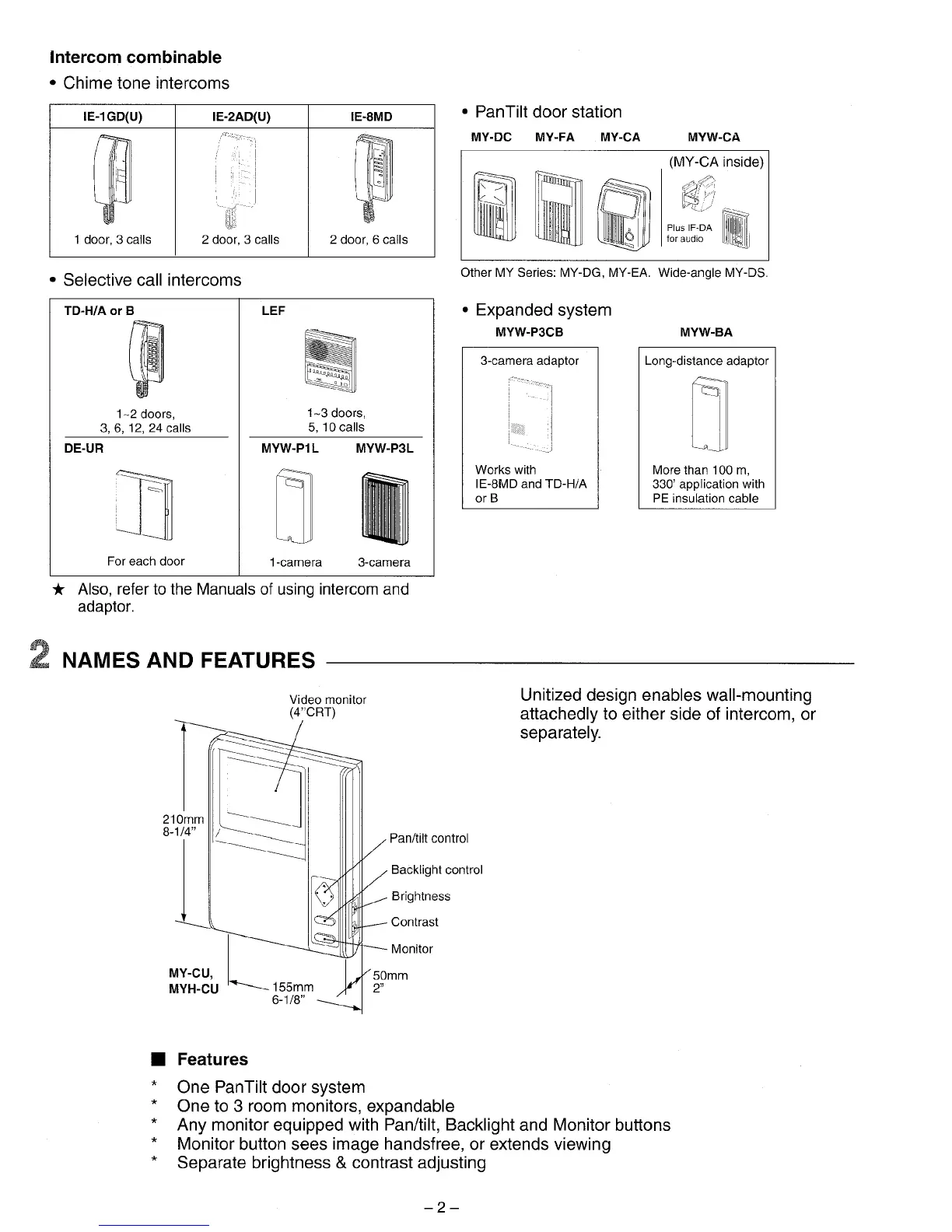

Aiphone MYH-CU - Intercom Combinable; Names and Features; Chime Tone Intercoms; Selective Call Intercoms

12 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

Table of Contents

Contents1
System Outline & Components1
Components Available1
Package Contents1
Intercom Combinable2
Names and Features2
Chime Tone Intercoms2
Selective Call Intercoms2
Precautions on Installation & Wiring3
Wiring4
Cable Requirements4
Terminal Block Layout4
Impedance-Matching4
Wiring Diagram5
Power Supply5
Wiring Distance5
Connecting Jumpers6
Mounting10
Mounting with Intercom10
Operations11
MY--DC, DG Image Viewing Area11
Pan/Tilt Control Pad11
Backlight Control & Monitor Buttons11
Before Asking for Repair12
Specifications12
