3. Determine if you are going to use the internal or external wire
compartment – remove only one of the wire covers and place it
somewhere safe to be reinstalled later.
4. If the unit is being mounted in existing construction use the
housing as a template to mark the necessary space on the ceil-
ing to cut out.

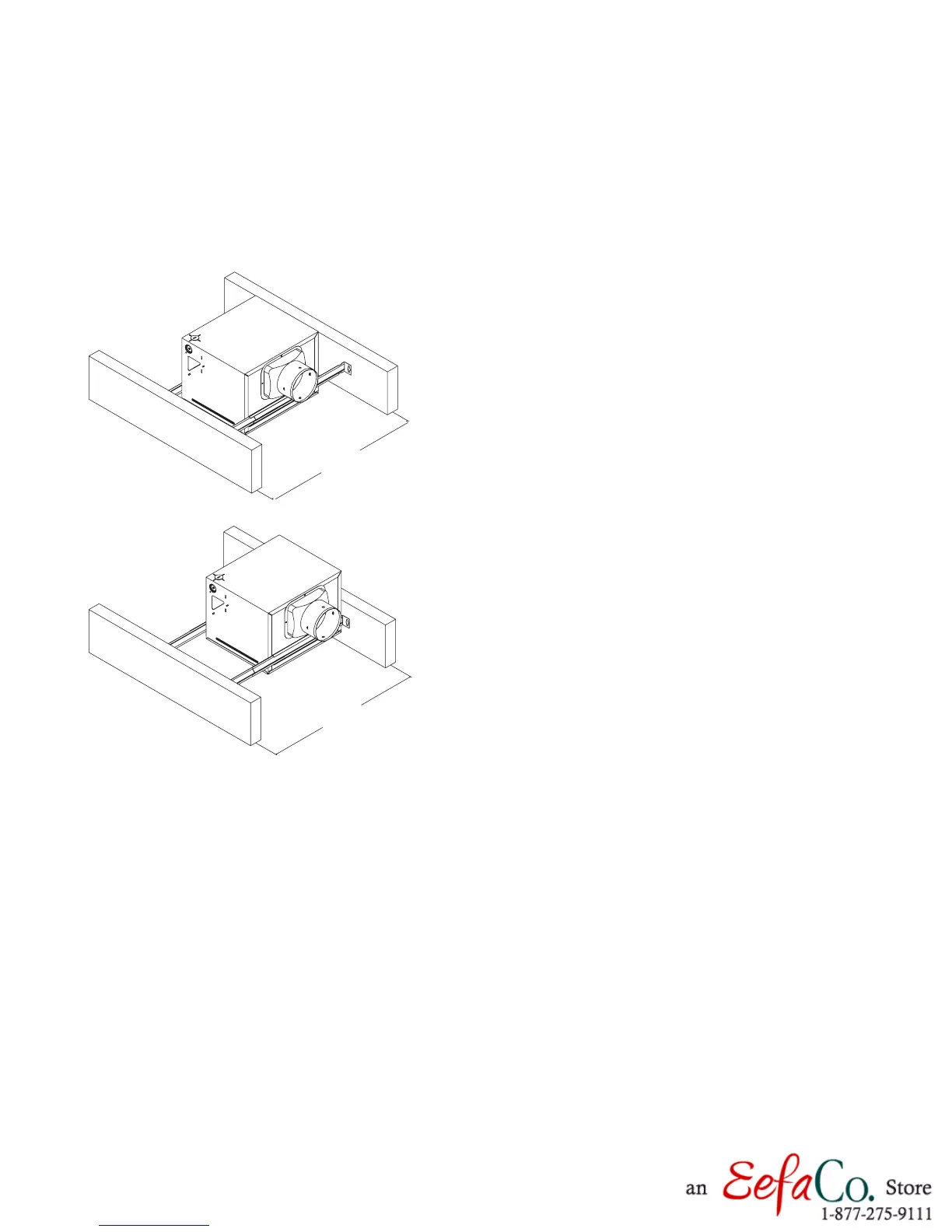

5. Determine the required mounting orientation.
6. Adjust the height of the fan housing so that it is flush with the
finished ceiling.
DUCTING
Note: All ducting must comply with local and national building
codes.
1. Connect the ducting to the fan’s duct collar. Secure in place using
duct tape or a screw clamp. Always duct the fan to the outside
through a wall or roof cap. To ensure maximum air delivery, keep
the length of duct and the number of elbows to a minimum.
ELECTRICAL WIRING
Caution: Make Sure The power Is Switched Off Before Beginning
This Installation.
Note: All wiring must comply with local and national codes. You
must ground this unit.
Note: It is recommended that you use a wall switch carrying the
appropriate electrical ratings to control this fan. – Air-King switch
model S-1
1. Run wiring from an approved wall switch carrying the appropri-
ate electrical ratings. One neutral (white), One ground (green or
bare copper), and 1 hot – Black wire for Fan Control. Secure the
electrical wires to the housing with an approved electrical con-
nector (make sure you leave enough wiring in the box to make
the connection to the fan’s wires.)
2. See Figure 1 - From where you have access to inside the fan’s
junction box, connect the white wire from the house to the white
wire in the fan’s Junction box – Then connect the black wire from
inside the fan’s Junction box to the black wire from the switch.
– Connect the ground to the green ground wire inside the fan’s
junction box. Use approved electrical wire nuts.
3. Replace the wire cover and secure in place with the screw
removed earlier.
COMPLETING THE INSTALLATION
1. To complete the installation, If you removed the blower assem-
bly to install the housing replace the blower assembly and
secure in place with the 2 nuts removed earlier, plug the blower
assembly into the motor receptacle before installing the blower.
2. Install the grill onto the fan housing – It is secured in place with
2 grill springs which will fit into slots on the fan housing.
3. Turn the power back on and test your installation.
AIR KING FIVE YEAR WARRANTY
All products manufactured by Air King Limited are warranted for
one year from the date of purchase against defects in workmanship
and/or material. In addition, all ventilating/exhaust fans, heaters,
combination fan lights and/or heaters, and range hoods are
guaranteed for five years from the date of purchase against defects
in workmanship and/or material. This warranty does not cover any
labor or shipping costs or the cost of replacement components as
part of routine maintenance such as: range hood grease filters,
charcoal filters or combination charcoal/grease filters; replacement
light bulbs in range hoods or bathroom fan/light/bulb heater
combinations. As well, any damage or failure caused by abuse,
misuse, abnormal usage, faulty installation, or improper
maintenance will not be covered by this warranty. In order to make
a claim on this warranty, you must be the original consumer of the
product, and you must contact Air King Ltd. at 1-800-465-7300
between 8:00 am and 3:30 pm EST Monday to Friday at the first
sign of a defect. You will be required to present to Air King Ltd. the
original bill of sale showing: date of purchase, place of purchase
and model purchased. Failure to meet these requirements will void
your warranty. Air King Ltd. will not be held responsible for any
bodily injuries or damages to personal property or real estate
whether caused directly or indirectly by the product. Some states
and provinces do not allow the exclusion or limitation of incidental
or consequential damages and some states do not allow limitations
on how long an implied warranty lasts, so these exclusions or
limitations may not apply to you. This warranty gives you specific
legal rights and you may have other rights which vary from state to
state and province to province.
