Air King AV1213 - Replacement Parts Diagram; Parts List and Numbers

www.airkinglimited.com
6728002 Rev. F 1-11 6 of 12
# Qty. Description Replacement Part #
1 1 Filter RF35 5S4199011
2 1 Push Nut 5S4199001
3 1 Fan Blade 5S4199002
4 2 #8 B Screw 5S1999015
5 2 Hex Nut 5S1999006
6 1 Motor Bracket 5S4199003
7 1 Light Lens 5S4199004
8 1 #6 AB Screw 5S1999004
9 1 Wire Compartment Cover 5S4199005
10 1 Lamp Holder 5S4199006
11 1 Bushing 5S1999016
12 1 #10 Ground Screw 5S1999002
13 1 Jumper Wire 5S4199007
14 1 Switch Plate - White 5S1421003
1 Biscuit 5S1421004
1 Almond 5S1421005
1 Black 5S1421006
15 1 Motor Switch - White 5S1418003
1 Biscuit 5S1418004
1 Almond 5S1418005
1 Black 5S1418006

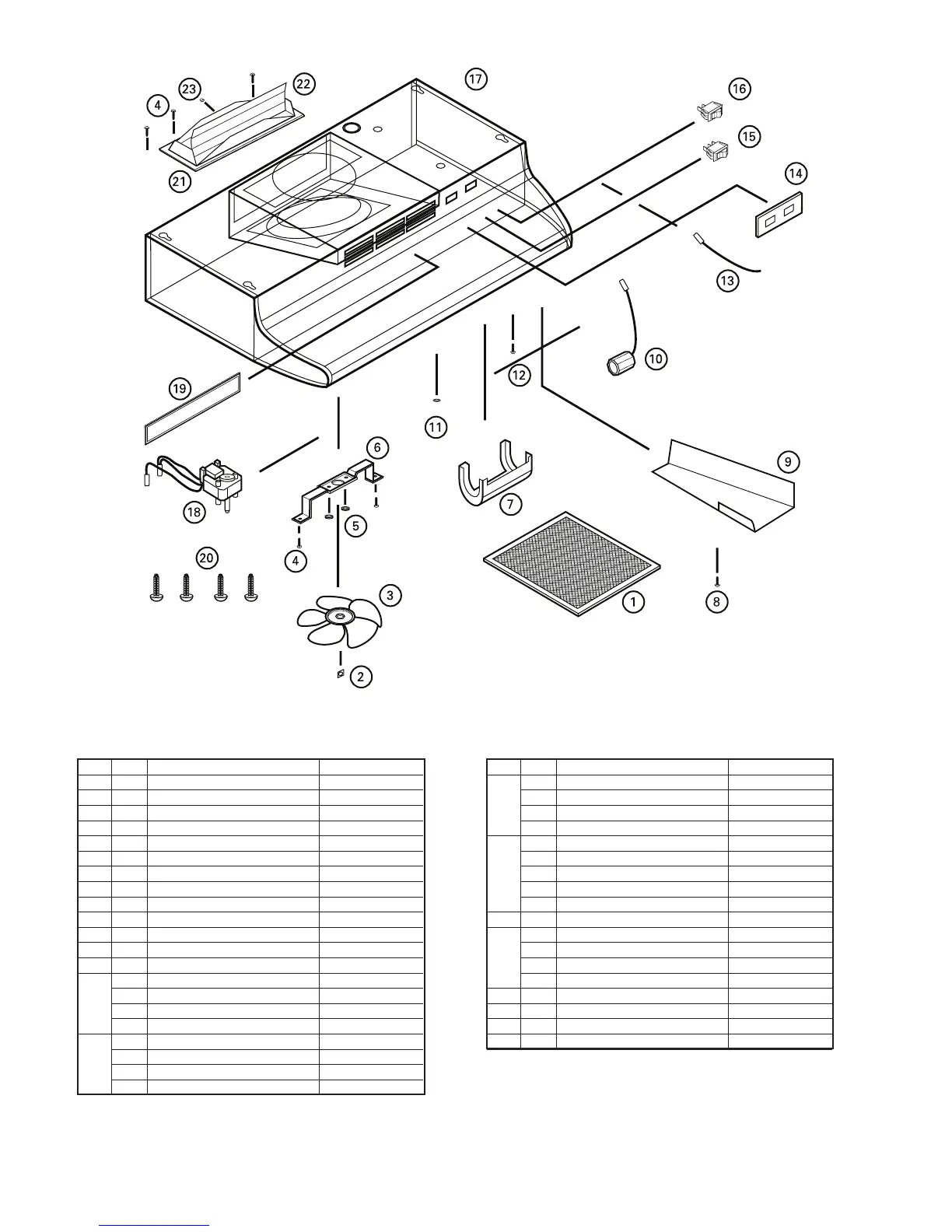

REPLACEMENT PARTS DIAGRAM
# Qty. Description Replacement Part #
16 1 Light Switch - White 5S1419003
1 Biscuit 5S1419004
1 Almond 5S1419005
1 Black 5S1419006
17 1 Wrapper -21" 5S1427010
1 24" 5S1427020
1 30" 5S1427030
1 36" 5S1427040
1 42" 5S1427050
18 1 Motor 5S2199001
19 1 Louver Plate - White 5S1429003
1 Biscuit 5S1429004
1 Almond 5S1429005
1 Black 5S1429006
20 4 #8 Screw 5S1999017
21 1 Damper Frame 5S4199013
22 1 Damper 5S4199014
23 1 Damper Bumper 5S4199015
