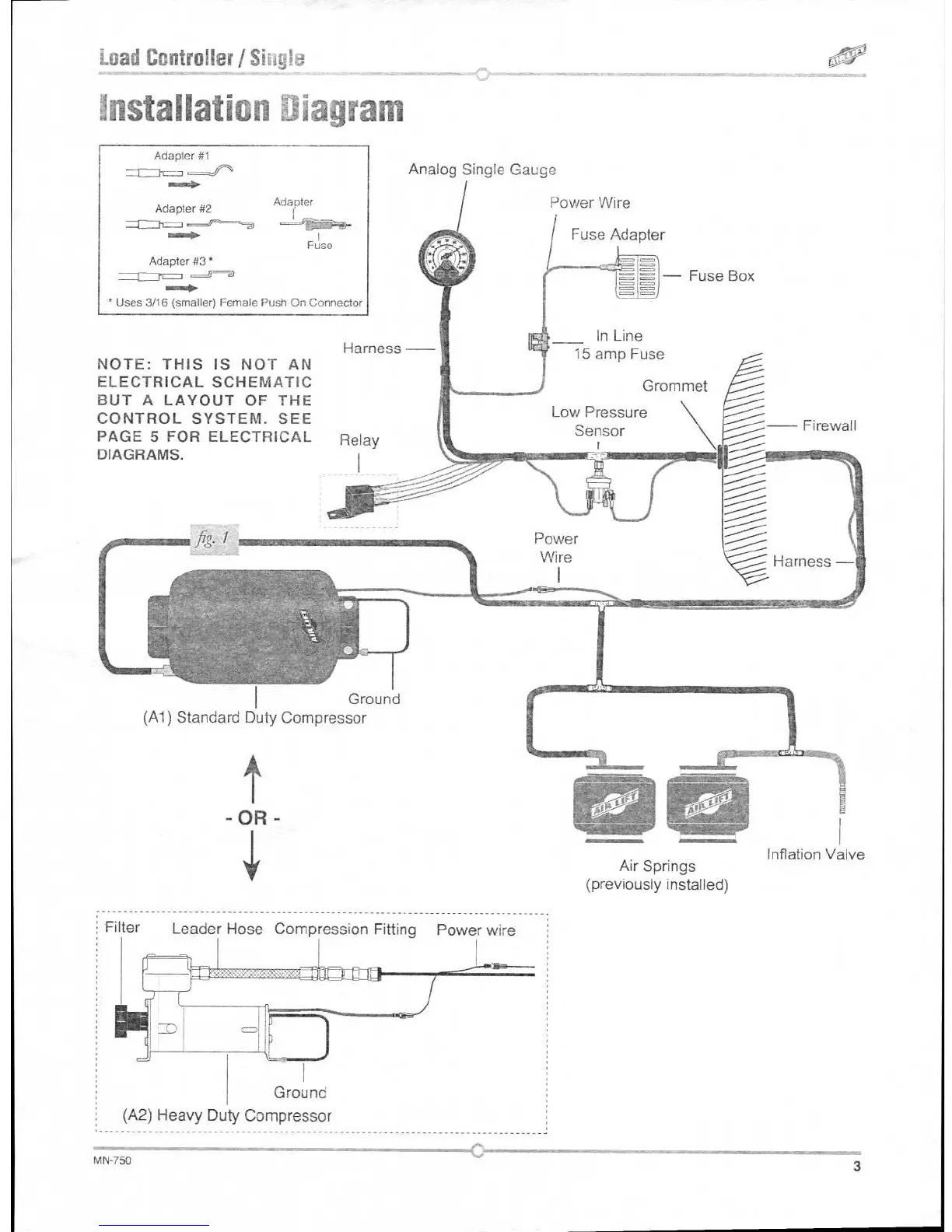

Load Controller I
Installation Diagram
Analog Single Gauge
Adapter
Power Wire
Fuse Adapter
— Fuse Box
Fuse
* Uses 3/16 (smaller) Female Push On Connector
NOTE: THIS IS NOT AN
ELECTRICAL SCHEMATIC
BUT A LAYOUT OF THE
CONTROL SYSTEM. SEE
PAGE 5 FOR ELECTRICAL
DIAGRAMS.
In Line
15 amp Fuse
Grommet
Harness —
Relay
fis
Air Springs
(previously installed)
Ground
(A1) Standard Duty Compressor
Low Pressure
Sensor
Firewall
.1
11
111.
rommilr•
Adapter #3 *
Adapter #1
or
Adapter #2
Inflation Valve
Filter
Leader Hose Compression Fitting Power wire
Grounc
(A2) Heavy Duty Compressor
MN-750
WM-Loadcontroller Air Lift Compressor System
