The monitor will analyze the air sample and display the CO concentration in parts per million (ppm). The system’s green
“NORMAL” operation light will illuminate and the red “HIGH CO” light will icker approximately every second when the CO
level is below 10ppm (5ppm Canadian). If the CO concentration level exceeds the alarm set point, the green “NORMAL”
light will turn off, the red “HIGH CO” light will illuminate, the audible alarm will sound, and the remote alarm connections
will energize. Once the CO concentration levels drop below the alarm set point, all alarm indicators will deactivate and the
unit will return to “NORMAL” operation.
Size 2.75”H X 6.57”L X 5.1”W
Weight 2.8 LBS. (1.27kg.)
Case Extruded Aluminum - anodized black
Voltage 115 VAC and/or 9-16 VDC
Shielding Internal RFI/EMI lters
Fuse 250 VAC/1 amp fast acting
Operating
Temperature
4° to 113° Fahrenheit
(-15.5° to 45° Celcius)
Humidity
Range
10% to 90% relative humidity
Flow
Requirement
50 - 100 cc/min
Display
3 digit LCD
CO concentration
Test Circuit Manually activated
Sensor Type
Sealed electrochemical sensor for
Carbon Monoxide
Accuracy +/-1% full scale
Response 90% in 10-15 seconds
Detectable
Range
0-200 ppm CO
Calibration Manual CO zero and span adjustments
Alarm Setting 10 ppm CO (5 ppm - Canadian)
Warning
Signals
Normal operation - Green Light
High CO - Red Light
High CO - Audible Alarm
Low Battery - Amber Light
Warranty 2 years from original date of purchase

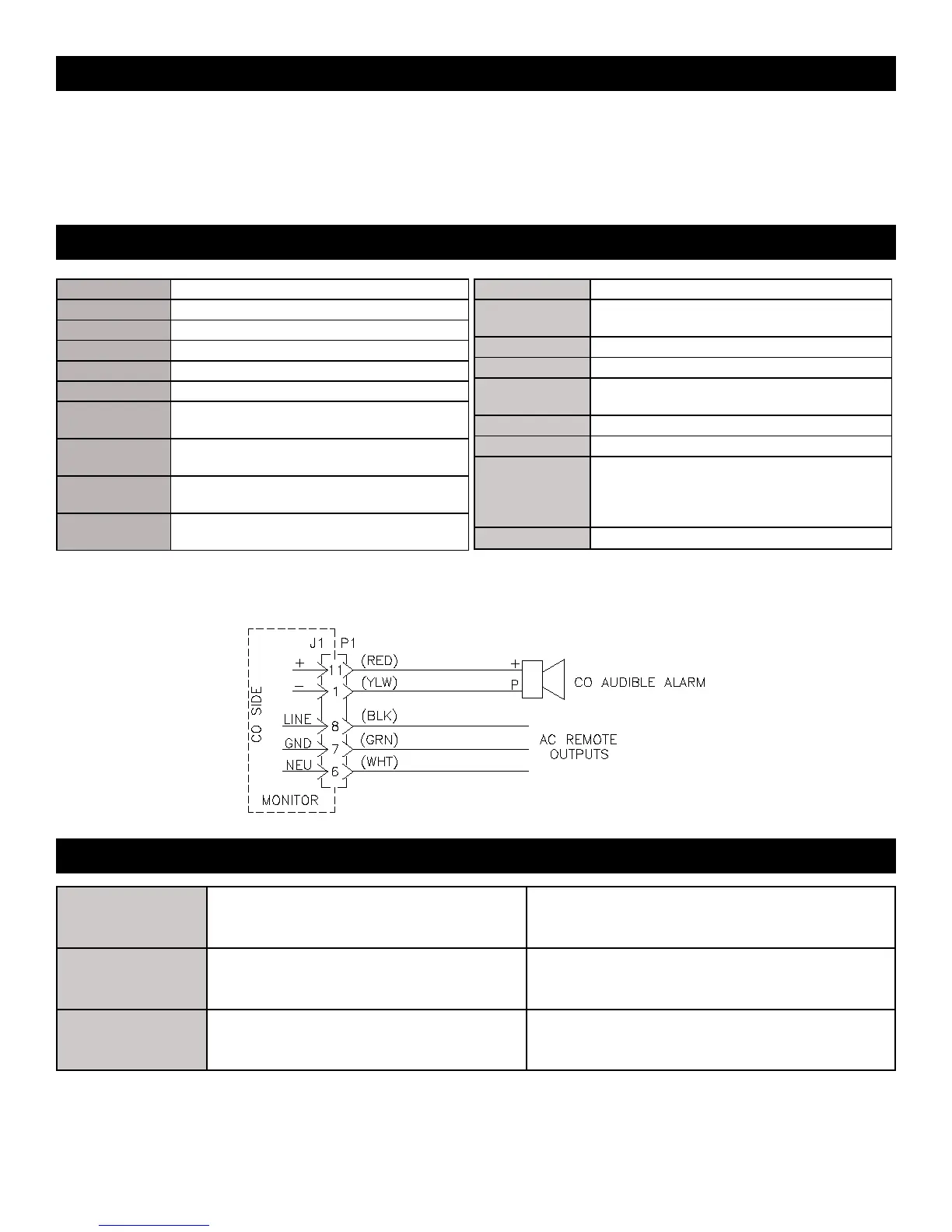

15 PIN CONNECTOR
WIRING DIAGRAM
5
Carbon Monoxide Monitor Overview
Carbon Monoxide Monitor Specications
1st Stage Particulate/Bulk Liquid Separation
Auto drain and lter change indicator.
Removes 95% bulk particulate and
liquids @ 5 microns.
2nd Stage Oil Coalescing and Ultra Fine Particulate
Auto drain and lter change indicator.
Removes oil and particulate to 99.9998% @ 0.01
microns.
3rd Stage Activated Charcoal
Manual drain and lter change indicator.
Removes organic vapors, odors, and tastes. Less
than 0.003 pp/wt remaining oil content.
Filtration Efciency
