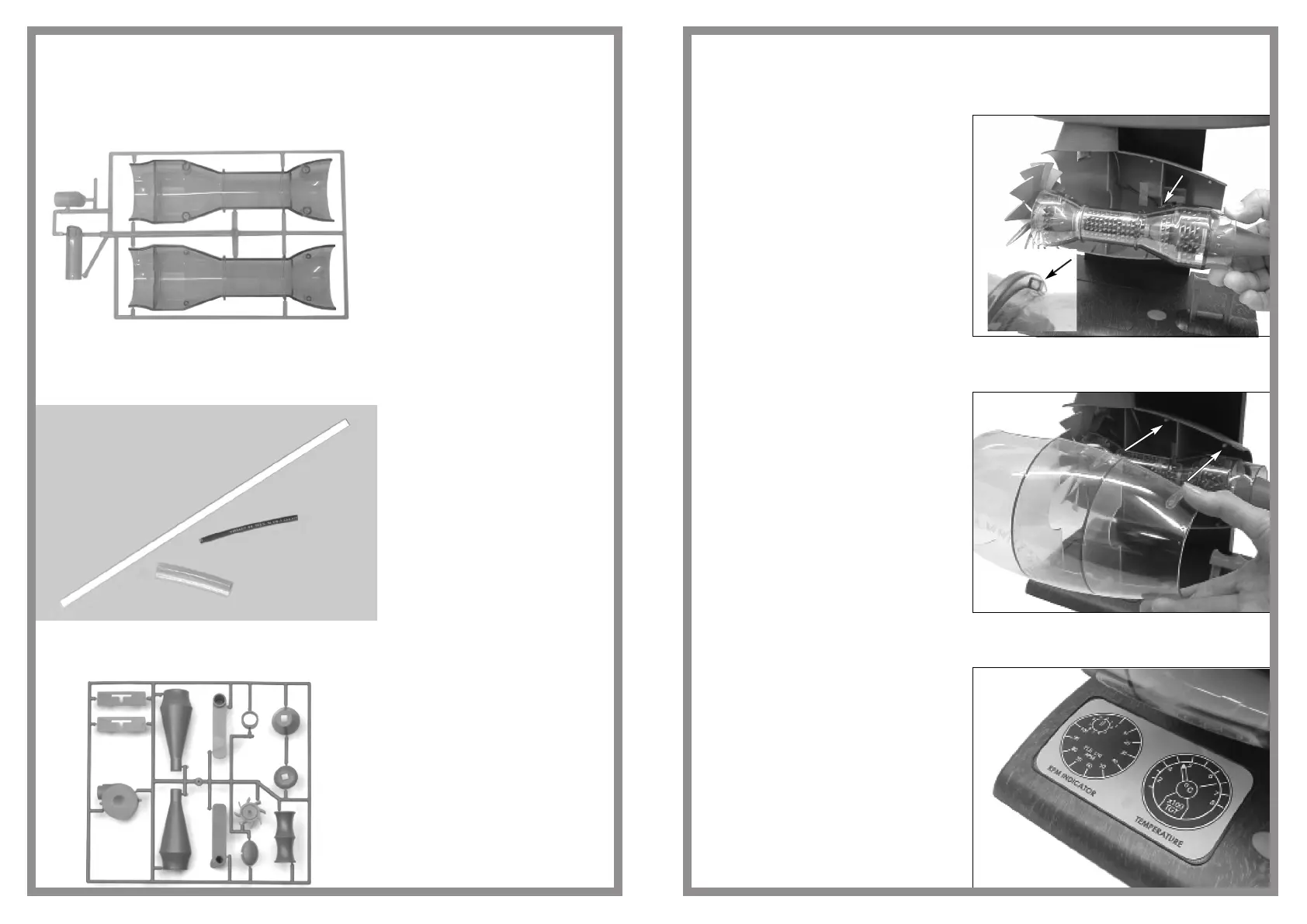

Assembly sequence 61
Assembly sequence 62
Assembly sequence 63
Assemble the turbine blade and
engine casing into the inner engine
nacelle locating the casing lug into
the nacelle notch.
Note: Secure the electric cabling
with adhesive tape into the engine
nacelle as indicated
Assemble the clear outer engine
nacelle half onto the lugs of the
inner engine nacelle half. Click and
secure into position
Insert the instrument panel sticker
into the recess to the top of the
base cover
27
Kit Parts - Turbine blade spindle, shrink sleeve
and clear tube
Kit Parts - Various
Kit Parts - Engine casings, air ducting elbow
and down tube
jet engine
6
