Installation, Maintenance and Use
iCON Domestic DC Fans are available in 2 model sizes and can be fitted into a wall or ceiling.
Each fan requires a suitable size hole through the wall or ceiling which connects into a duct
venting to the outside. The external opening should be covered by a suitable external grill,
available separately from Airflow Developments Ltd.
Model Options

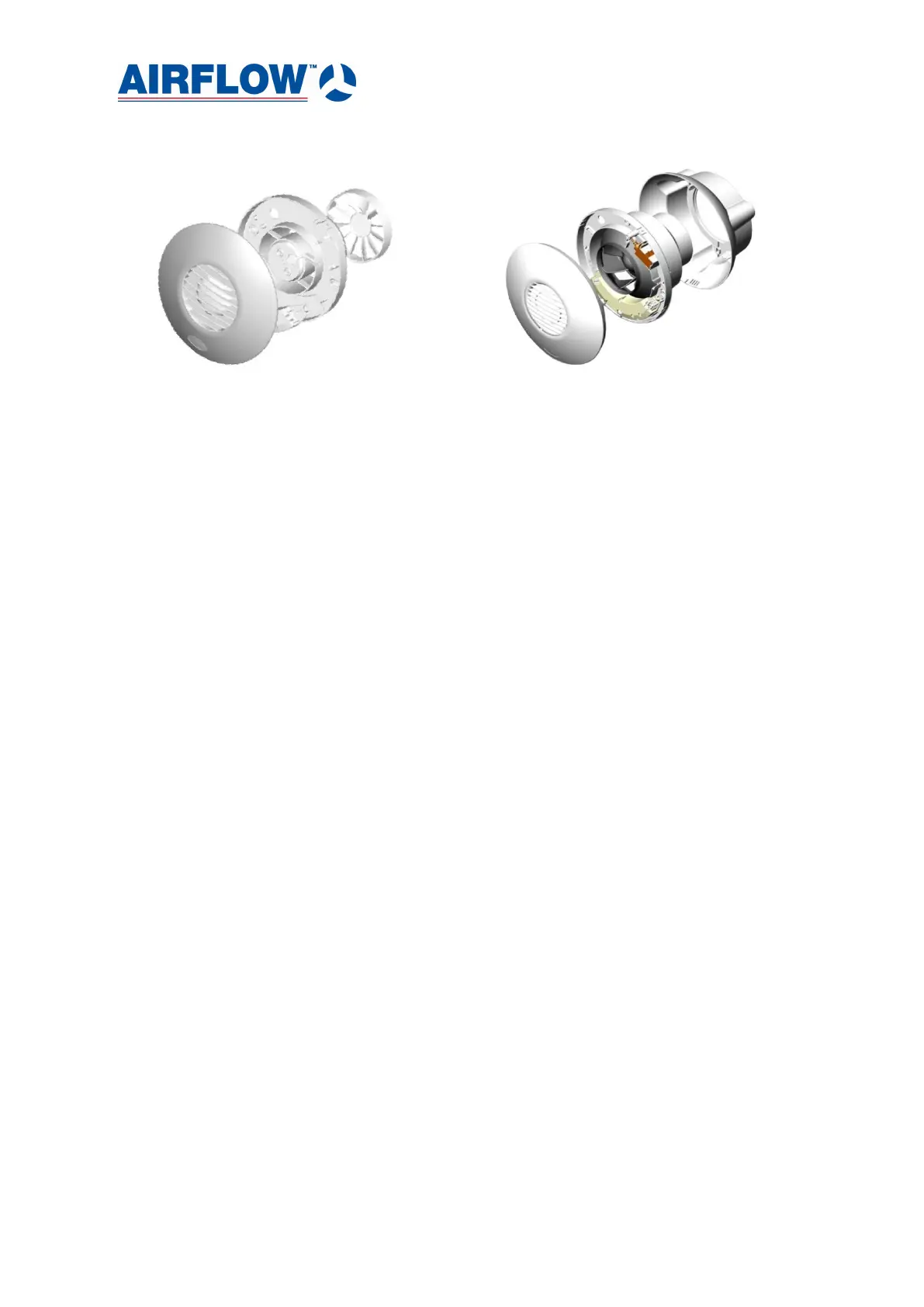

72683701 - 15S -100mm Axial Fan with maximum capacity of 21.9 l/sec.
72683801 - 30S -100mm Mixed Flow Fan with maximum capacity of 34.25 l/sec
iCON Domestic DC Fans can be used as a simple extract fan powered via the SELV power
supply unit (supplied), and connected to either a remote switch, or can be fitted with an
internal control module, supplied to give a range of control options including timer,
humidity, motion sensor, pull cord, trickle speed or a combination of these functions.
Optional control modules are available separately and can be fitted at the time of
installation or retrofitted.
iCON Domestic DC Fans have IPX 4 rated housings, they are double-insulated and are
suitable for fitting in Zone 1 or 2 of bathrooms, toilets, kitchens, utility rooms and inside
shower cubicles as defined in Section 701 BS7161:2008 (IEEE Wiring Regulations, 17
th
Edition ). They also comply with the 2010 Building Regulations, Approved Document F. The
power supply unit, supplied with the fan, must be fitted outside of Zones 0, 1 and 2. It is
usually installed outside the room.
Do not place the fan near direct heat sources, e.g. radiant heaters, or where temperatures
can exceed 40°C (104°F).
iCON Domestic DC Fans – 15S & 30S
