modificationsasneeded.

g. ThreadtheRetainingscrewintotheframetomakesuretheframethreadsareclearandcut.Do
thesamefortheAdjustmentscrew.Removebothscrews.

Assembly
1. Cleanthecase.insertandseattherubbergrommetintotheoldBacklighthole. 
2. EnsurethecaseMounting-bracketstudsaresecure.Whennecessarytightenthenutswitha¼”nut-
driver. 
3. BegintoseattheAGRboard.Removeanyjumpers...forthey'renotneeded,andapttofalloutduring
normaluse.SliptheAGRdownovertheDialposts.PresstheAGRtightagainsttheframe. 

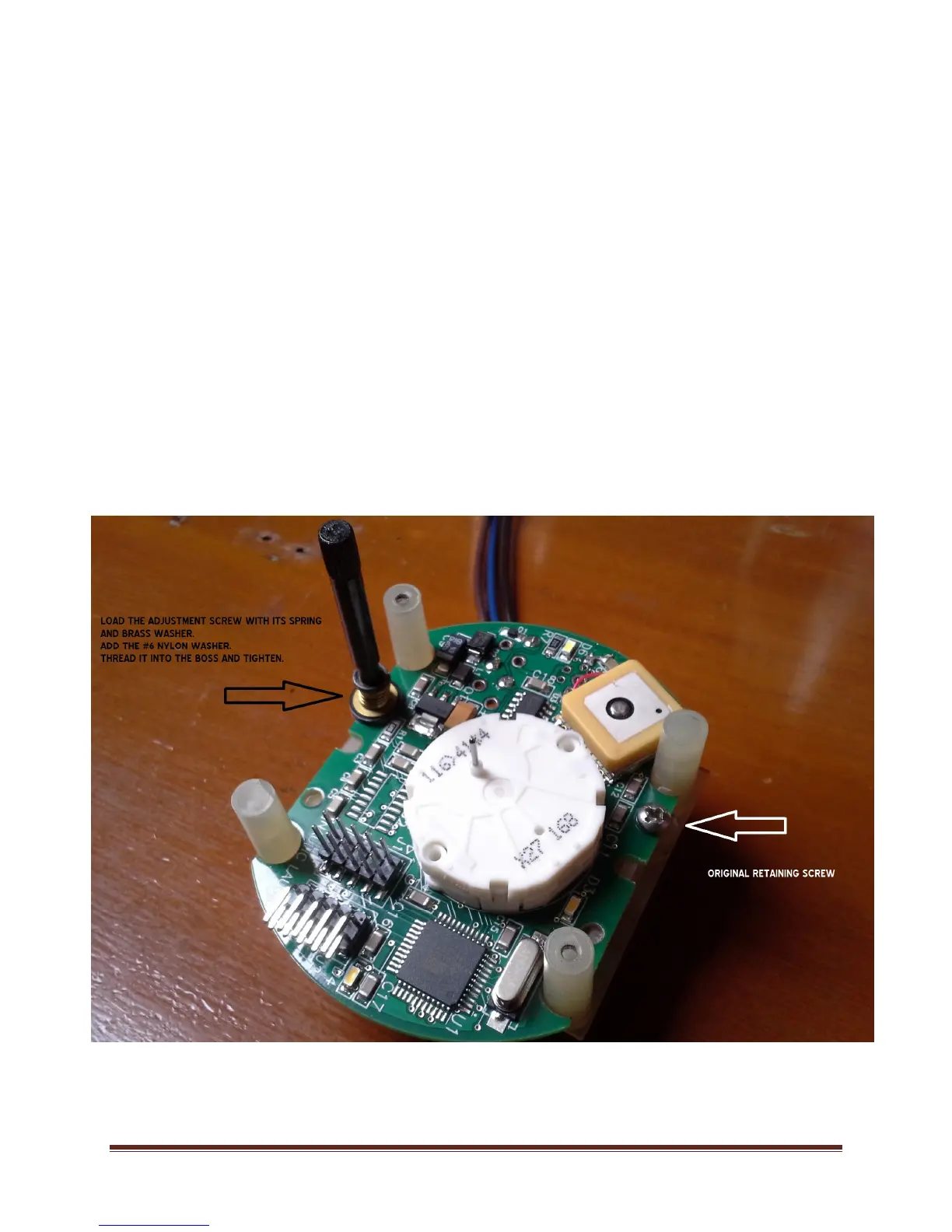

4. StarttheoriginalRetainingscrewintotheframeBoss;seepic. 
5. LoadtheAdjustmentscrewwithitsspringandbrasswasher.Slideontheprovided#6Nylonwasher.
StartthescrewintothematingBossthreads.NudgetheNylonwasherawayfromanyelectrical
componentsontheAGR.TightenbothitandtheRetainingscrew. 

