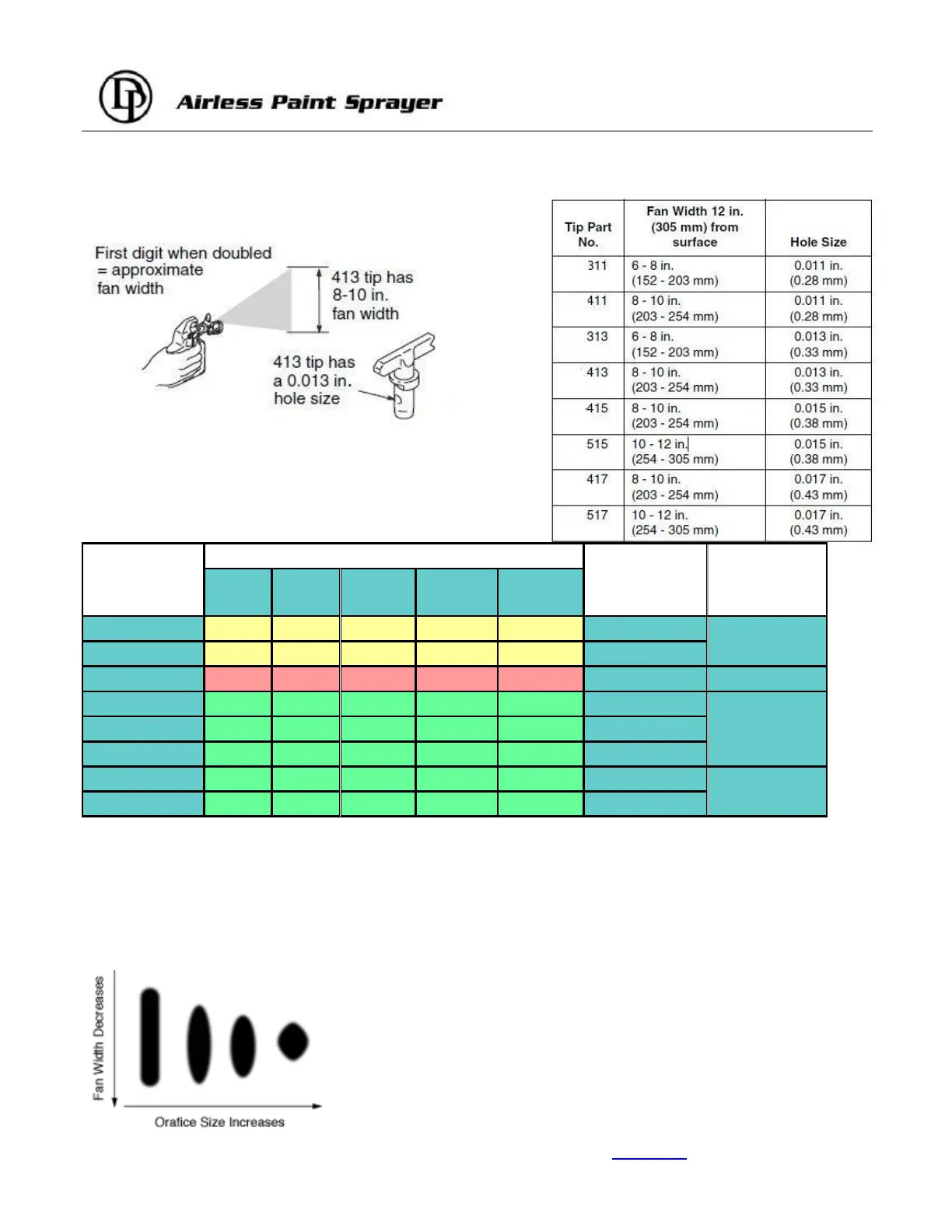

Understanding Tip Number
The last three digits of tip number contain information about hole size and fan width on surface when gun is
held 12 in. (30.5 cm) from surface being sprayed.
Last two digits = tip hole size in thousands of an inch
Reversible Tip Selection Chart
Fan Width - Inches
Orifice Size
(inches)
4” – 6”
Fan
6” – 8”
Fan
8” – 10”
Fan
10” – 12”
Fan
12” – 14”
Fan
Flow Rate (gpm)
Application
.011” 211 311 411 0.12
.013” 213 313 413 513 613 0.16
Stain or Lacquer
.015” 215 315 415 515 615 0.22 Oil Base Paint
.017” 217 317 417 517 617 0.25
.019” 219 319 419 519 619 0.33
.021” 321 421 521 621 0.41
Latex Paint
/Acrylic/Enamel.
.023” 523 623 0.49
.025” 525 625 0.57
Heavy Latex
Important things to know about tip wear
It's important to replace a tip when it becomes worn, this ensures you''ll have a precise spray pattern,
maximum productivity and a quality finish. When tip wears, the hole(orifice) size increases and spray
pattern width decreases.
Tip life varies by coating, Extend tip life by spraying at the lowest
pressure that breaks up(atomizes)the coating into a complete
spray pattern.
Recommend tip replacement
Latex: After 4000~5000 ㎡
