DP-airless Page 6 of 22

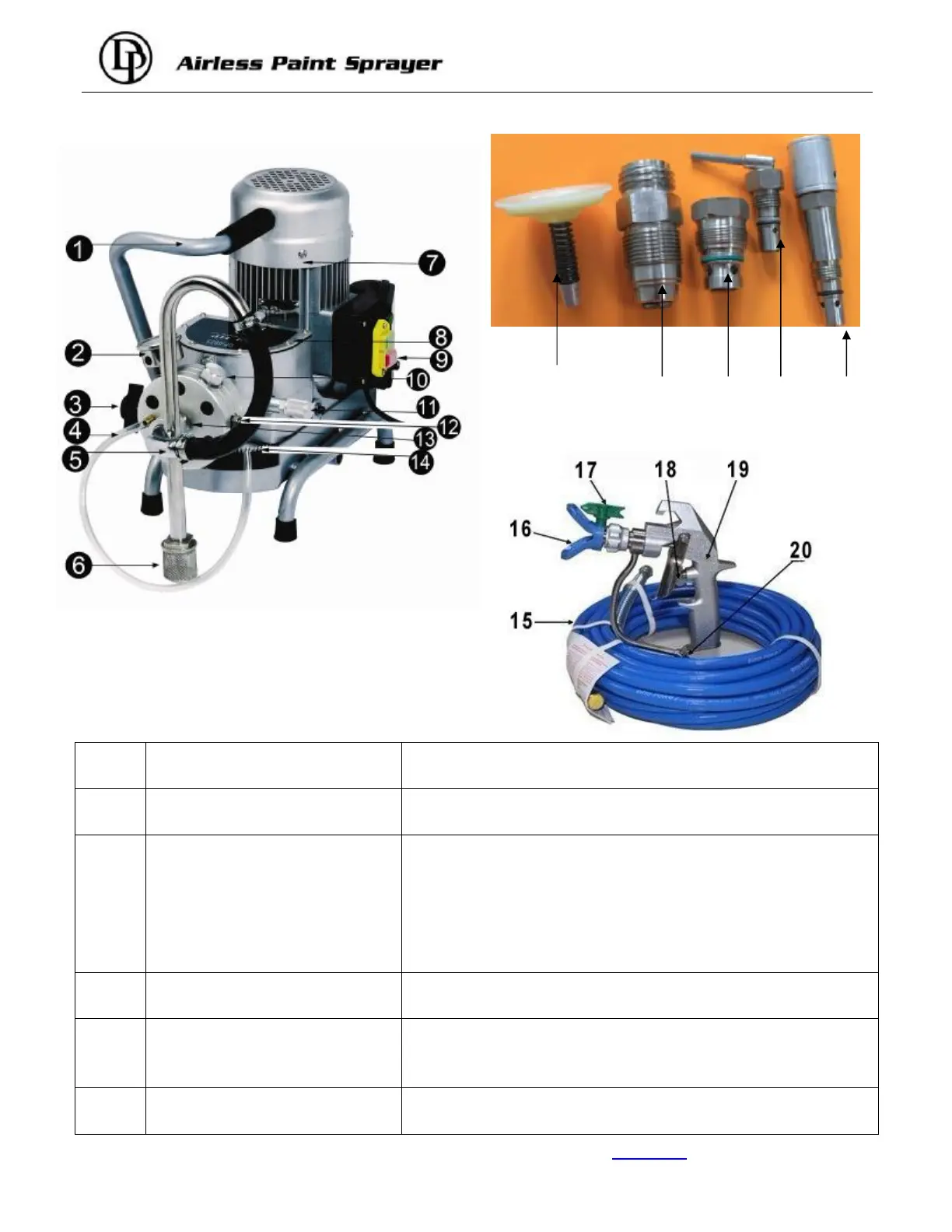

Component Identification
15(1) 13 10 3 11
1
Handle Carry machine.
2
Pressure gage Easy for you to read the pressure you’re spraying.
3
Prime/Spray valve
●In PRIME position (pointing down) directs fluid to prime
tube.
●In SPRAY position (pointing forward) directs pressurized
fluid to paint hose.
●Automatically relieves system pressure in overpressure
situations.
4
Prime tube Drains fluid in system during priming and pressure relief.
5
Suction tube Draws fluid from paint pail into pump. (the tube must be
screwed tightly otherwise air enter inside, so the pressure
can’t be reached your desired high pressure.)
6
Suction filter Prevent the grains in the fluid to be sucked into the pump.
