airmaster AM 150 - 2 Condensate Drain

7
Airmaster’s AM series is delivered either with a black control
box (AQC-L) or with a grey control box (AQC-P). The DV
series is always delivered with a grey control box (ACQ-P)
AM units with AQC-L:
AM 150, AMC 150
AM 300 (specic designation: AML 300)
AM 500 (specic designation: AML 500)
AM 800 (specic designation: AML 800)
AM units with AQC-P:
AM 500 (specic designation: AMP 500)
AM 800 (specic designation: AMP 800)
AM 900 (specic designation: AMP 900)
AM 1000 (specic designation: AMS 1000)
AM 1200 (specic designation: AMP 1200)
2. Condensate Drain

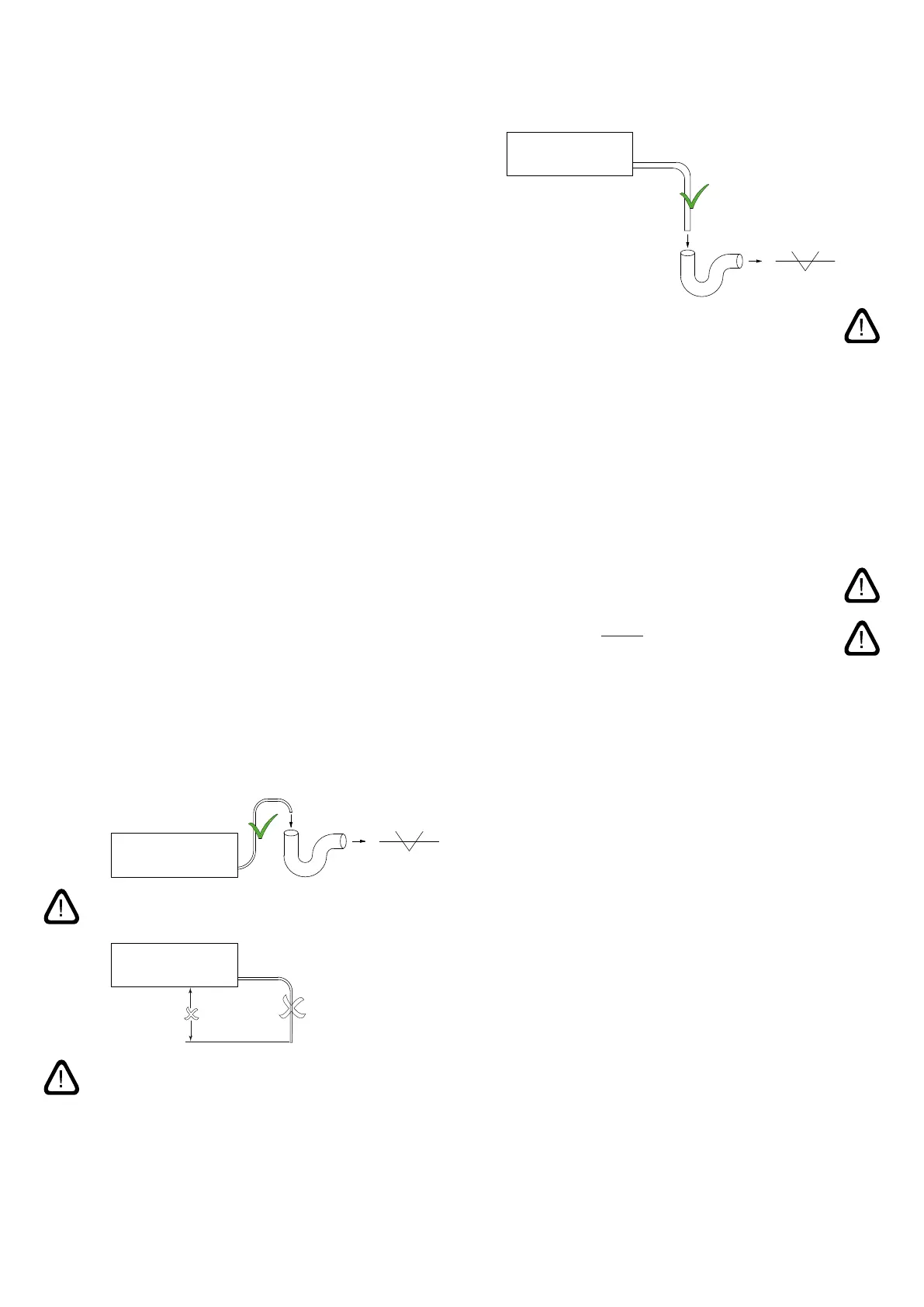

We recommend connecting the air handling unit’s (AHU)/
cooling module’s (CC) condensate drain to a wastewater
pipe from a condensate pump (1.) or directly from the
condensate tray (2.)
1. All air handling units and cooling modules with a
condensate pump:
AHU/CC
NB! Fit a water lock to avoid unpleasant odours from
the wastewater system.
AHU/CC


NB! The drain hose must not be subjected to negative
pressure or a downward incline of over 0.5 m.
The dimensions for the drain hose position can be found
under “Dimensional Drawings” and “Additional Dimensions”
in the installation manuals.
2. Air handling units without condensatpump (only
possible for AM 300, 500, 800 and 1200):
(16/20 mm hose)
AHU
NB! Fit a water lock to avoid unpleasant odours from
the wastewater system.
The dimensions for the drain hose position can be found
under “Dimensional Drawings” and “Additional Dimensions”
in the installation manuals.
Optional installation of condensate drain:
The hose can also be run through the outer wall. For this
version, drill a hole of suitable diameter and with a 1-2%
outward downward gradient.
NB! Remember to seal the gap between the hose and
outer wall.
NB! THE HOSE MUST BE PROTECTED AGAINST
FORMATION OF ICE.
