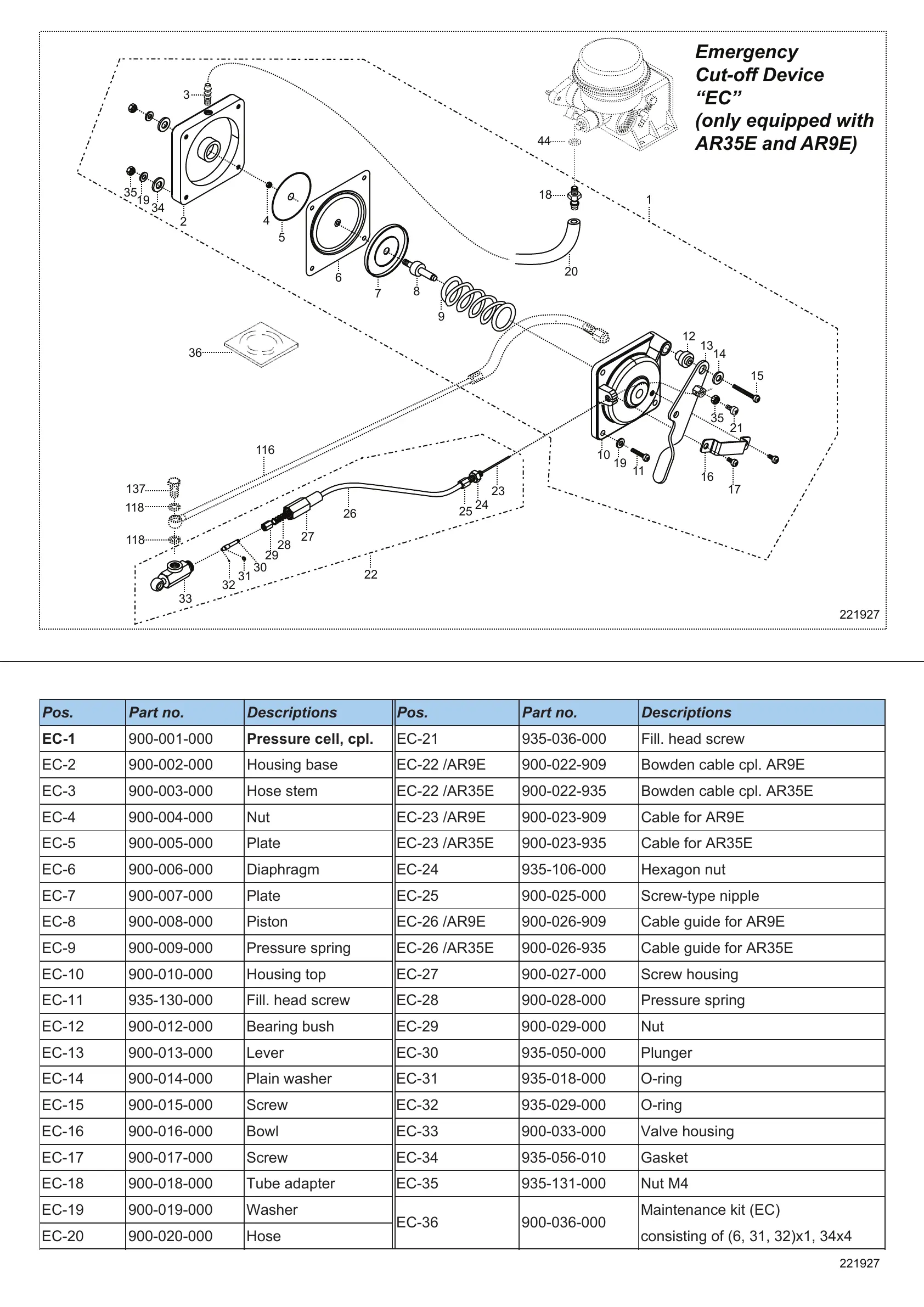

Emergency
Cut-off Device
“EC”
(only equipped with
AR35E and AR9E)
33
32
31
22
137
118
118
29
28
27
30
26
25
24
23
17
16
15
14
12
11
10
9
8
7
6
5
4
2
3
35
20
116
1
19
34
21
35
19
13
18
44
36
Pos. Part no. Descriptions Pos. Part no. Descriptions
EC-1
900-001-000
Pressure cell, cpl.
EC-21 935-036-000 Fill. head screw
EC-2 900-002-000 Housing base EC-22 /AR9E 900-022-909 Bowden cable cpl. AR9E
EC-3 900-003-000 Hose stem EC-22 /AR35E 900-022-935 Bowden cable cpl. AR35E
EC-4 900-004-000 Nut EC-23 /AR9E 900-023-909 Cable for AR9E
EC-5 900-005-000 Plate EC-23 /AR35E 900-023-935 Cable for AR35E
EC-6 900-006-000 Diaphragm EC-24 935-106-000 Hexagon nut
EC-7 900-007-000 Plate EC-25 900-025-000 Screw-type nipple
EC-8 900-008-000 Piston EC-26 /AR9E 900-026-909 Cable guide for AR9E
EC-9 900-009-000 Pressure spring EC-26 /AR35E 900-026-935 Cable guide for AR35E
EC-10 900-010-000 Housing top EC-27 900-027-000 Screw housing
EC-11 935-130-000 Fill. head screw EC-28 900-028-000 Pressure spring
EC-12 900-012-000 Bearing bush EC-29 900-029-000 Nut
EC-13 900-013-000 Lever EC-30 935-050-000 Plunger
EC-14 900-014-000 Plain washer EC-31 935-018-000 O-ring
EC-15 900-015-000 Screw EC-32 935-029-000 O-ring
EC-16 900-016-000 Bowl EC-33 900-033-000 Valve housing
EC-17 900-017-000 Screw EC-34 935-056-010 Gasket
EC-18 900-018-000 Tube adapter EC-35 935-131-000 Nut M4
)CE( tik ecnanetniaMrehsaW000-910-00991-CE
4x43 ,1x)23 ,13 ,6( fo gnitsisnocesoH000-020-00902-CE
900-036-000EC-36
