• In practice, less net-free area than is recommended will decrease the airflow performance of the
unit.
• If you are unsure as to how much net-free venting you have, please consult a roofing
professional.
• Net-free venting area can be acquired by any combination of gable, eyebrow, soffit, or
ridge vents, or any other means that provide ventilation to the attic space.
UNIT PARTS & DIMENSIONS

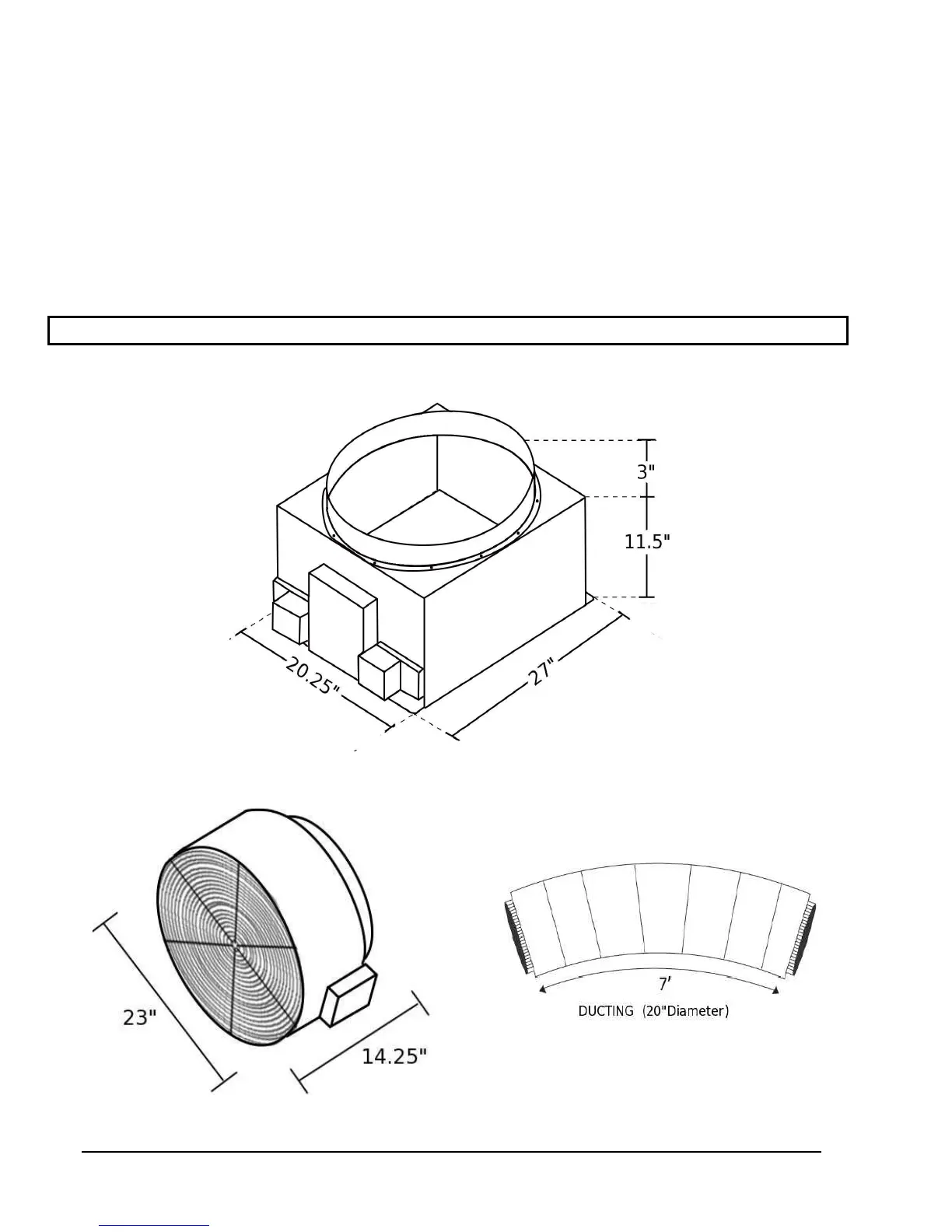

FIGURE 2 – Parts & Dimensions
AirScape 2.5/2.5e WHF Installation Manual 02-11 Page 4
