Airstream 2017 Interstate User Manual

Maintenance
9-30 2017 Interstate
Cat Five Patch Cable
10. Ga. Yellow
10 Ga. Green
10 amp Fuse
Battery
Battery
10 Amp Inline Fuse within
12” of battery
Red/White
6 Ga. Red
6 Ga. Black
6 Ga. Red
12 Ga. Black
6 Ga. Black
12 Ga. Red
50 Amp Breaker
Battery Breaker
Buss bar
Yellow
Solar Panel
Display
GRD.
Ground Buss
Solar Panel Wiring
A manual on the use of the solar system is included
with the Airstream Owner’s Packet� Please read and
understand all information before operating the system�
The charge controller senses the actual battery charge
and regulates the charging to prevent over charging�
The system requires the 12-volt feed from the battery
to operate�
Locations for solar panel wiring
All wires are located, depending on the model, under
the roadside jumper seat or the roadside twin bed� To
access remove the decorative door at the bottom of the
jumper seat or lift up the mattress to gain access to a
door below the twin bed�

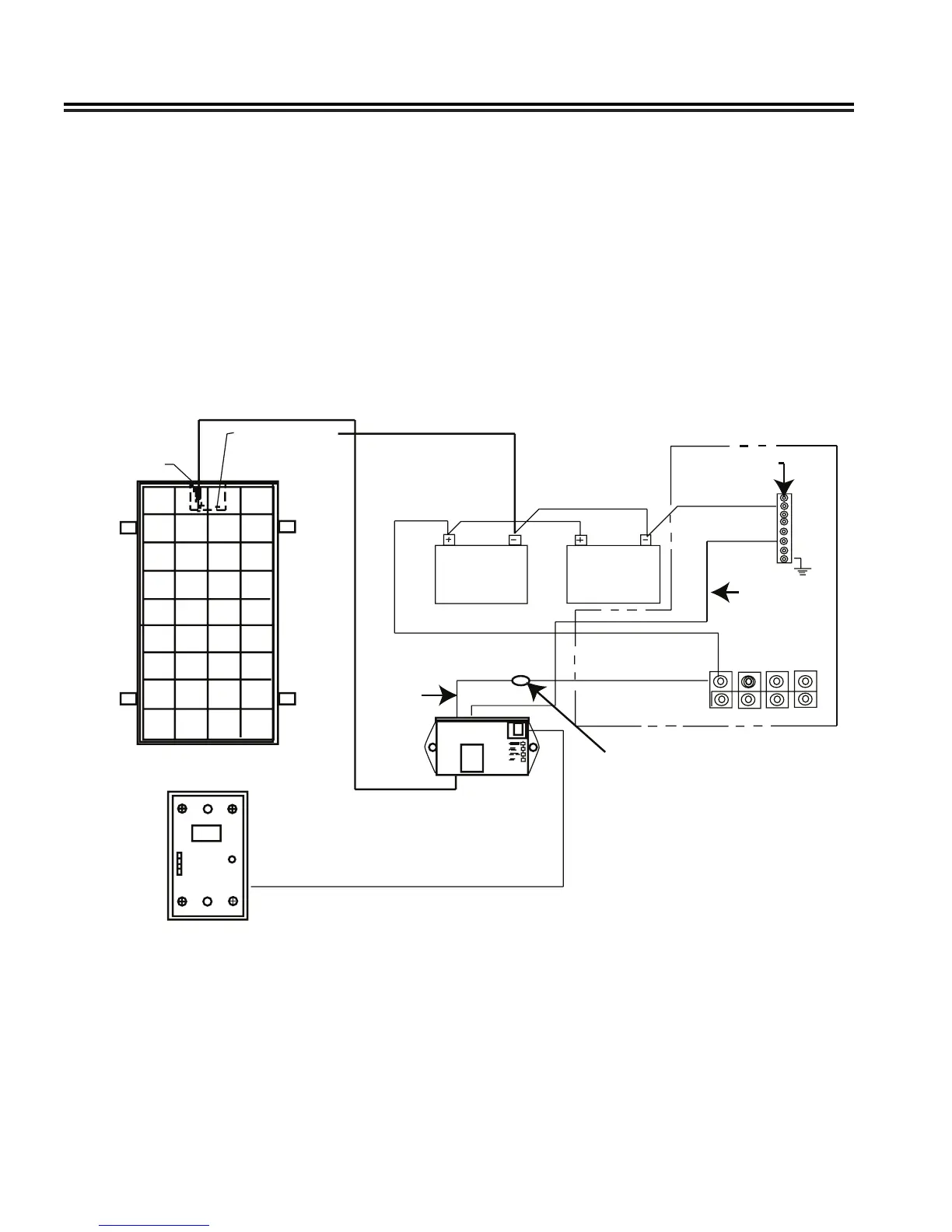

The following diagram depicts the way Airstream wires
the solar system and is the recommended wiring for
replacement solar systems�
