Floor Plans And Specications
2017 Interstate 4-5
The Unit Base Weight (UBW) and Net Carrying
Capacity (NCC) weights listed in the Specication
Chart are for the base unit with no options and uids.
Gross Vehicular Weight Rating (GVWR) is the
maximum permissible weight of this touring coach
when fully loaded. It includes all weight at the touring
coach axle(s).
UBW is the dry weight of the base unit without options.
NCC is equal to GVWR minus UBW. Gross Axle
Weight Rating (GAWR) is the value specied as the
load carrying capacity of a single axle system, as
measured at the tire-ground interfaces.
Specication Tags
For precise cargo capacity, refer to the Cargo-Carrying
Capacity tag on the inside of the door. The WEIGHT
OF CARGO SHOULD NEVER EXCEED numbers
shown on the tag, which is the maximum weight of
cargo you can load and carry in your specic touring
coach as built with its options.

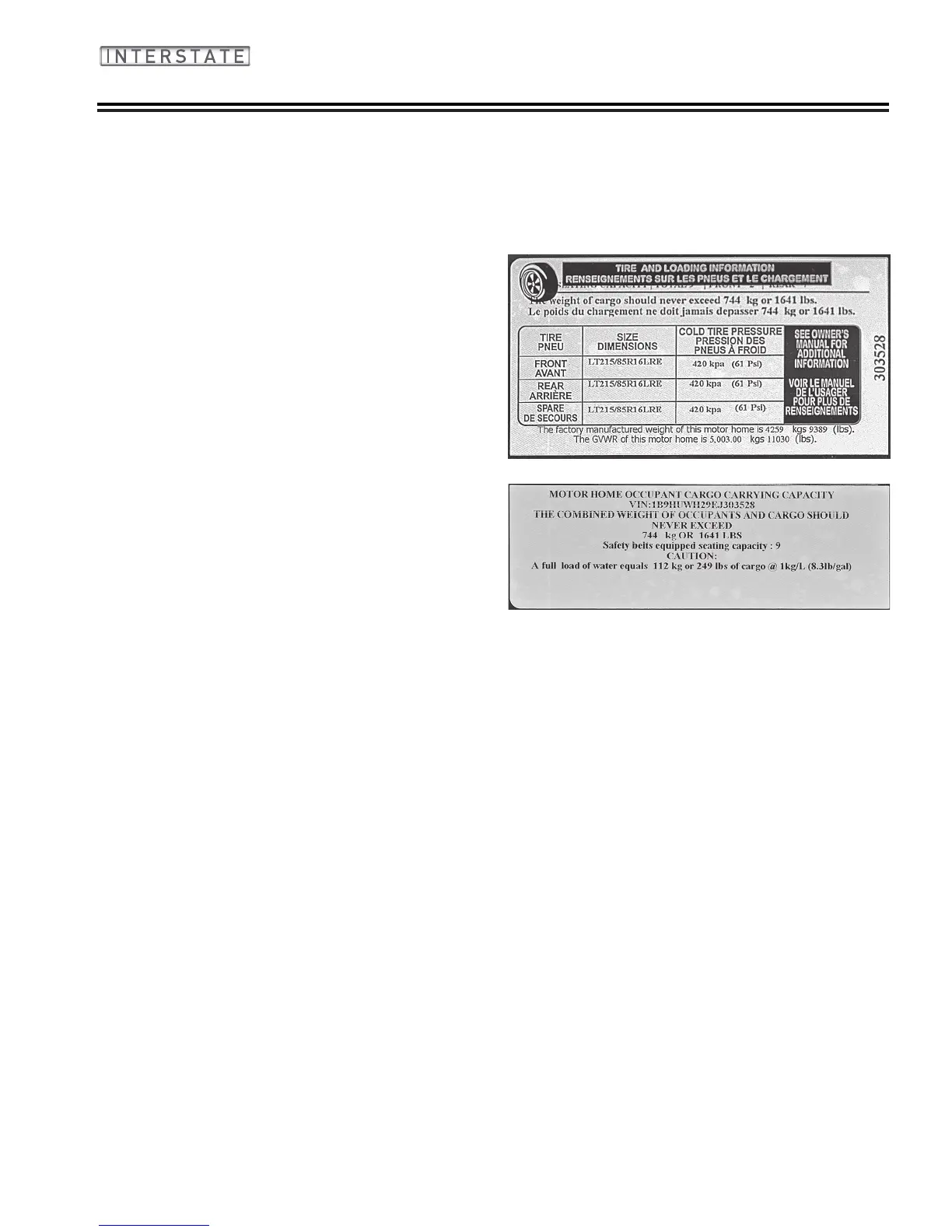

Located on the front roadside of your touring coach are
the Tire and Loading, and Vehicle Manufacturing tags.
The Tire and Loading information tag lists the Size and
Cold Ination Pressure of the tires on your vehicle, the
weight of your touring coach as manufactured, and the
GVWR.
The Vehicle Manufacturing tag lists the size of tires
and wheel rims, maximum cold ination pressures, the
Vehicle Identication Number (VIN), and GAWR.
For a complete list of capacities, see the Specications
Chart on the previous page.
Tire Size with Maximum Ination Pressure
Cold
• LT 215/85 R16 - 61 psi
