Airstream Basecamp 2007 - Electrical

G
G - 6
ELECTRICAL SYSTEM

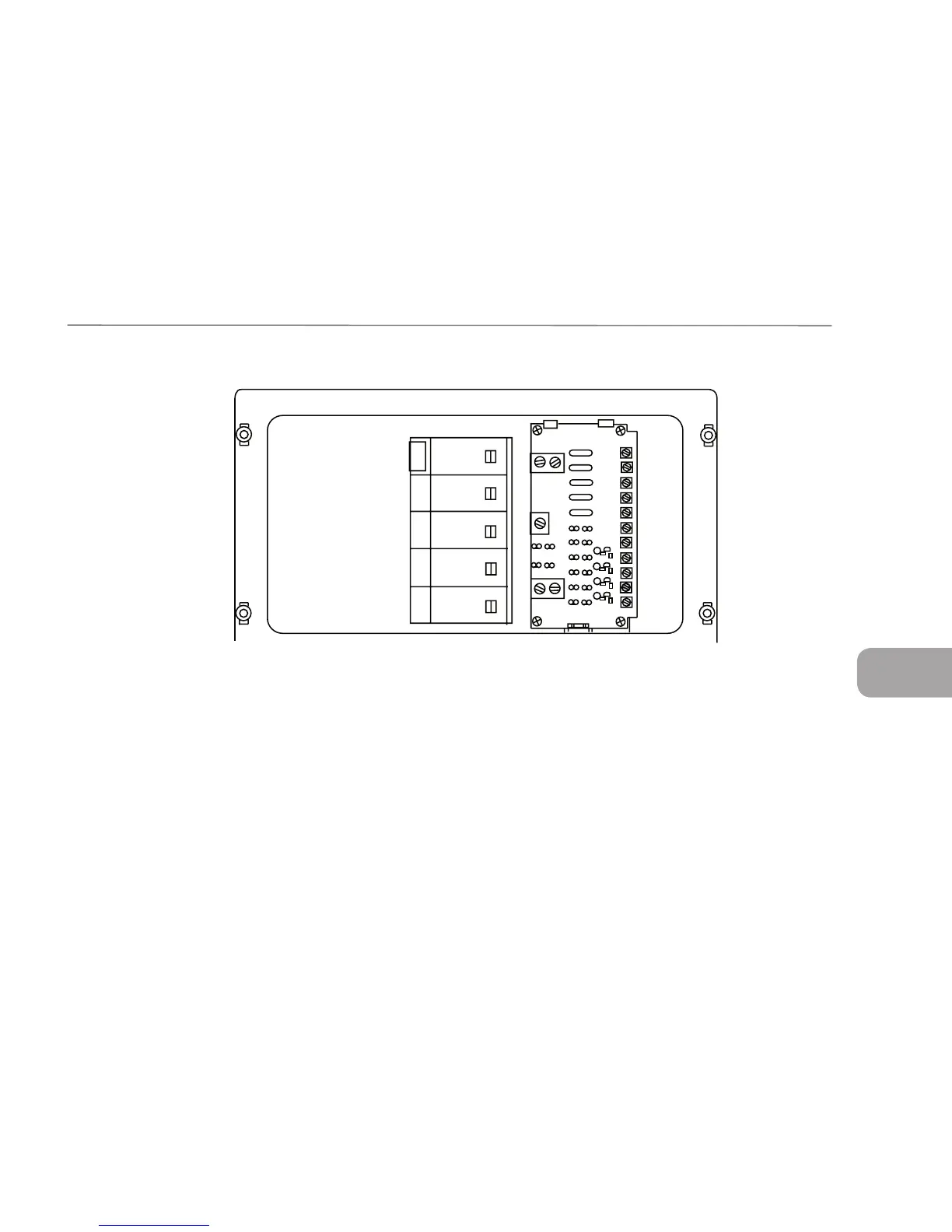

Converter 12 V Circuit Diagram
Circuit 1. 15 Amp., 14 ga., Purple
6 Halogen Ceiling Lights
Ceiling fan
Water Pump
Cooktop Ignitor
Circuit 2., 15 amp,, 14 ga.,Yellow
Radio
TV Booster
Circuit 3. 15 Amp., 14 ga., Pink
Roadside 12V power Port
Circuit 4, 15 amp., 14 ga., Brown
Curbside 12V Power Port
Circuit 5, 15 amp., 14 ga., Blue
Forward 12V Power Port
15
15
15
15
15
30 Amp Main
Circ. 1
Cir.
2
Cir.
3
Cir.
4
Cir.
5
Cir. 1
Cir.
2
Cir. 3
110-Volt
12-Volt
