Maintenance
8-18 2019 Flying Cloud
120-Volt/30- and 50-Amp Diagrams
The following electrical diagrams are representative of the National Electric Code (NEC) and Canadian Standards
Association (CSA). All circuits are NEC with the exception of CSA circuits as specied in each respective table.

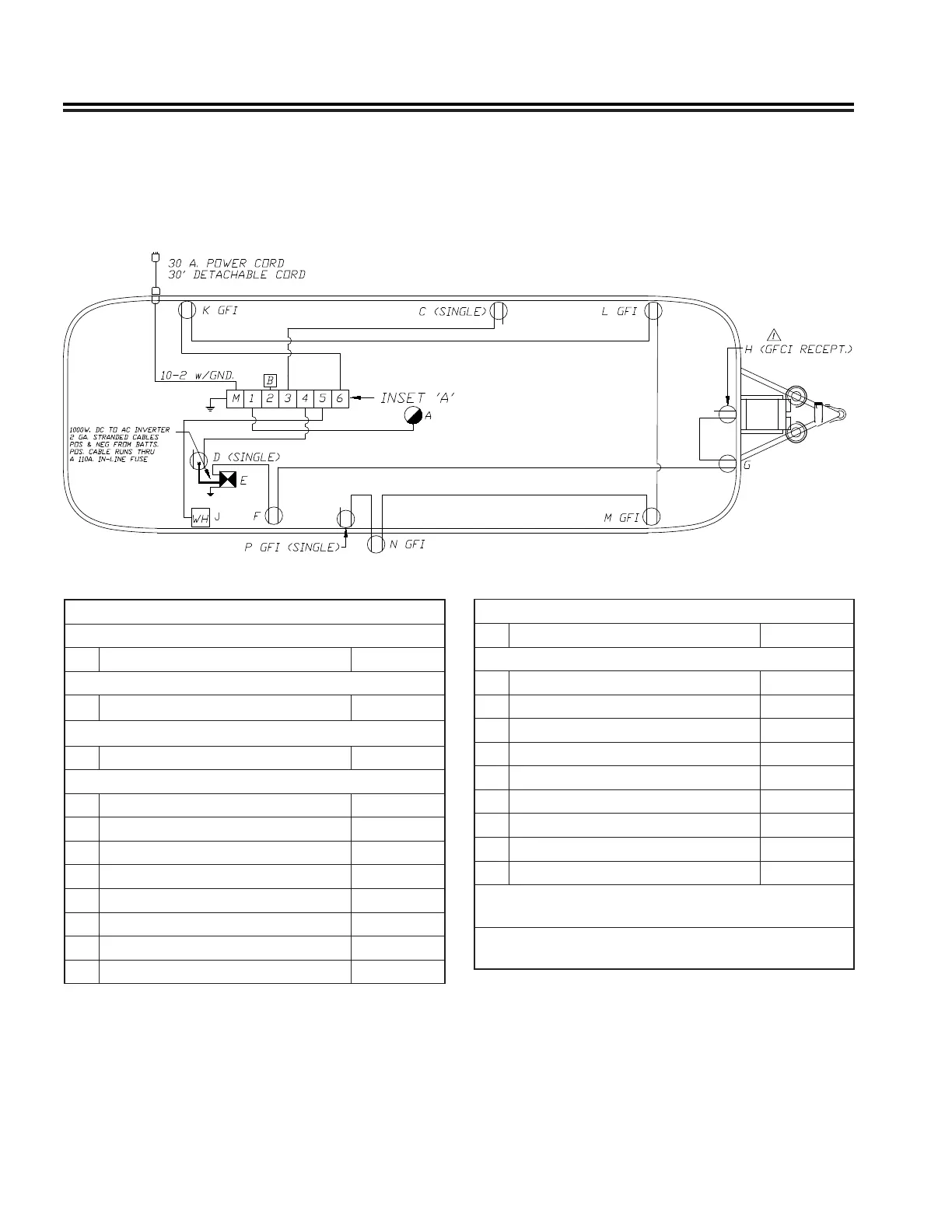

19’ Flying Cloud (30 Amp)
Main Circuit, 30 Amp
Circuit 1, 20 Amp
A Air Conditioner 16.0 Amps
Circuit 2, 15 Amp
B Converter (Wired Direct) 8.0 Amps
Circuit 3, 15 Amp
C Microwave Receptacle 12.0 Amps
Circuit 4, 15 Amp
D Inverter Receptacle 0.0 Amps
E Inverter 0.0 Amps
F TV Receptacle 1.5 Amps
F TV Receptacle - CSA 1.0 Amps
G Blu-Ray Player Receptacle 1.5 Amps
G Blu-Ray Player Receptacle - CSA 1.0 Amps
H Dinette Receptacle 1.5 Amps
H Dinette Receptacle - CSA 1.0 Amps
Circuit 5, 15 Amp
J Water Heater (Wired Direct) 12.0 Amps
Circuit 6, 15 Amp (GFCI)
K Bathroom Receptacle 1.5 Amps
K Bathroom Receptacle - CSA 1.0 Amps
L Galley Receptacle 1.5 Amps
L Galley Receptacle - CSA 1.0 Amps
M CS Living Area Receptacle 1.5 Amps
M CS Living Area Receptacle - CSA 1.0 Amps
N Outside Receptacle 1.5 Amps
N Outside Receptacle - CSA 1.0 Amps
P Refrigerator Receptacle 2.7 Amps
DC to AC 1000W Inverter Rated at 8.5 Amp
Inverting
15 Amp Fuse for Overcurrent. Transfer Switch rated
at 15 Amp. UL 458 Tested. ULC
