Installation
24
3.3.3 Pouring the Concrete Pad (B5 Cabinet Only)
Due to the extreme weight of the B5 cabinet, a concrete pad may be necessary to support the weight of the
unit. The pad should be poured in advance and be able to support the weight of the unit (1370 lbs/621 kg).
3.3.4 Make Openings in the Wall

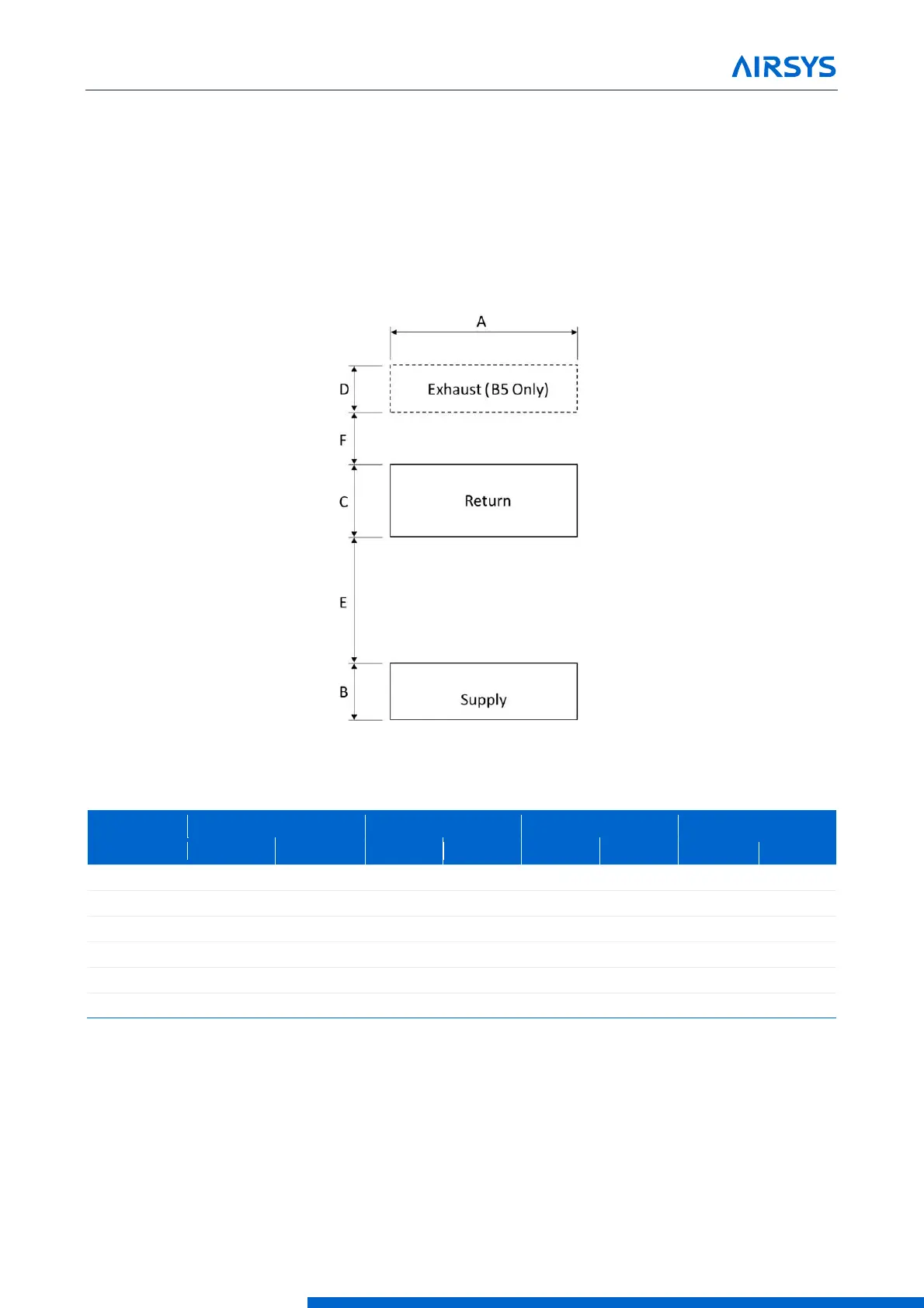

Make openings for supply and return air and cable and bolt holes in the installation wall as shown in Figures
4-5. Refer to the tables below the drawings for dimensions. All dimensions are accurate to 1/16 in (2 mm).
Note: The 28V1B5 requires three openings (Figure 5).
Note: The template printed on the shipping carton can be used to create wall cuts.
Table 3-7 Openings and Holes in the Wall (Bottom Supply)
Cabinet
Size
B2
B3
B4
B5
in
mm
in
mm
in
mm
in
mm
A
27-15/16
710
30
762
34-5/8
880
39-5/16
998
B
10-9/16
268
10-9/16
268
10-9/16
268
9-7/16
240
C
14
356
14
356
14
356
12-3/16
310
D
-
-
-
-
-
-
8-1/4
210
E
43-7/16
1104
43-7/16
1104
43-7/16
1104
34-15/16
887
F
-
-
-
-
-
-
11-9/17
293
