Installation
25
Note: The template printed on the shipping carton can be used to create wall cuts.

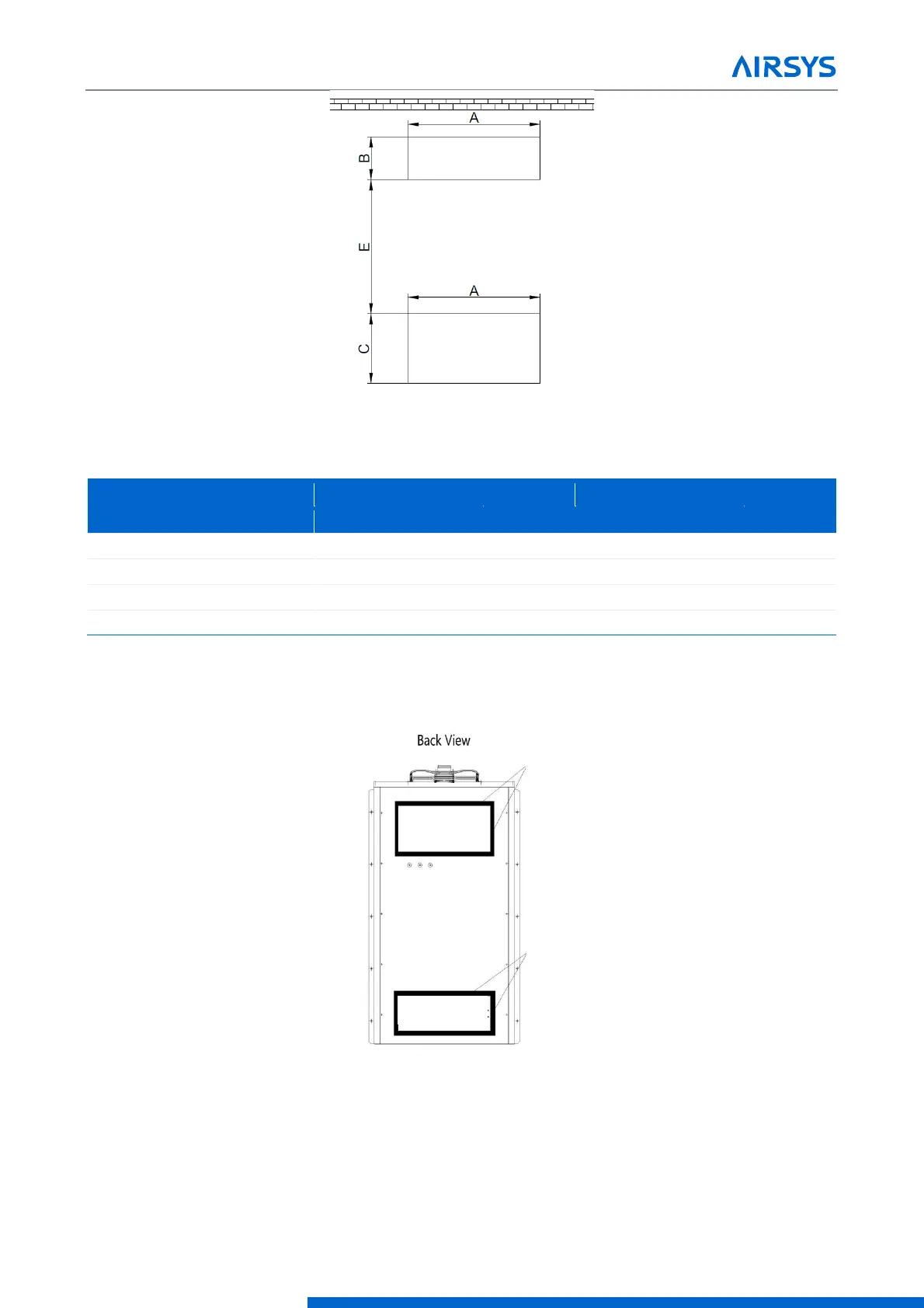

Table 3-8 Openings and Holes in the Wall (Top Supply)
Cabinet Size
T3
T4
in
mm
in
mm
A
29-3/4
756
29-3/4
756
B
9-11/16
246
9-11/16
246
C
15-11/16
398
15-11/16
398
E
30-1/4
768
30-1/4
768
3.3.5 Install Weather Stripping
Before mounting the unit on the outside wall, fix neoprene weather stripping (installer provided) around the
openings of the air supply and the air return to ensure an airtight closure, as shown in
Figure 3-1
Figure 3-1 Install Weather Stripping
Weather stripping
Weather stripping
