B. DIMENSION, SPACE REQUIREMENT AND VENTILATION

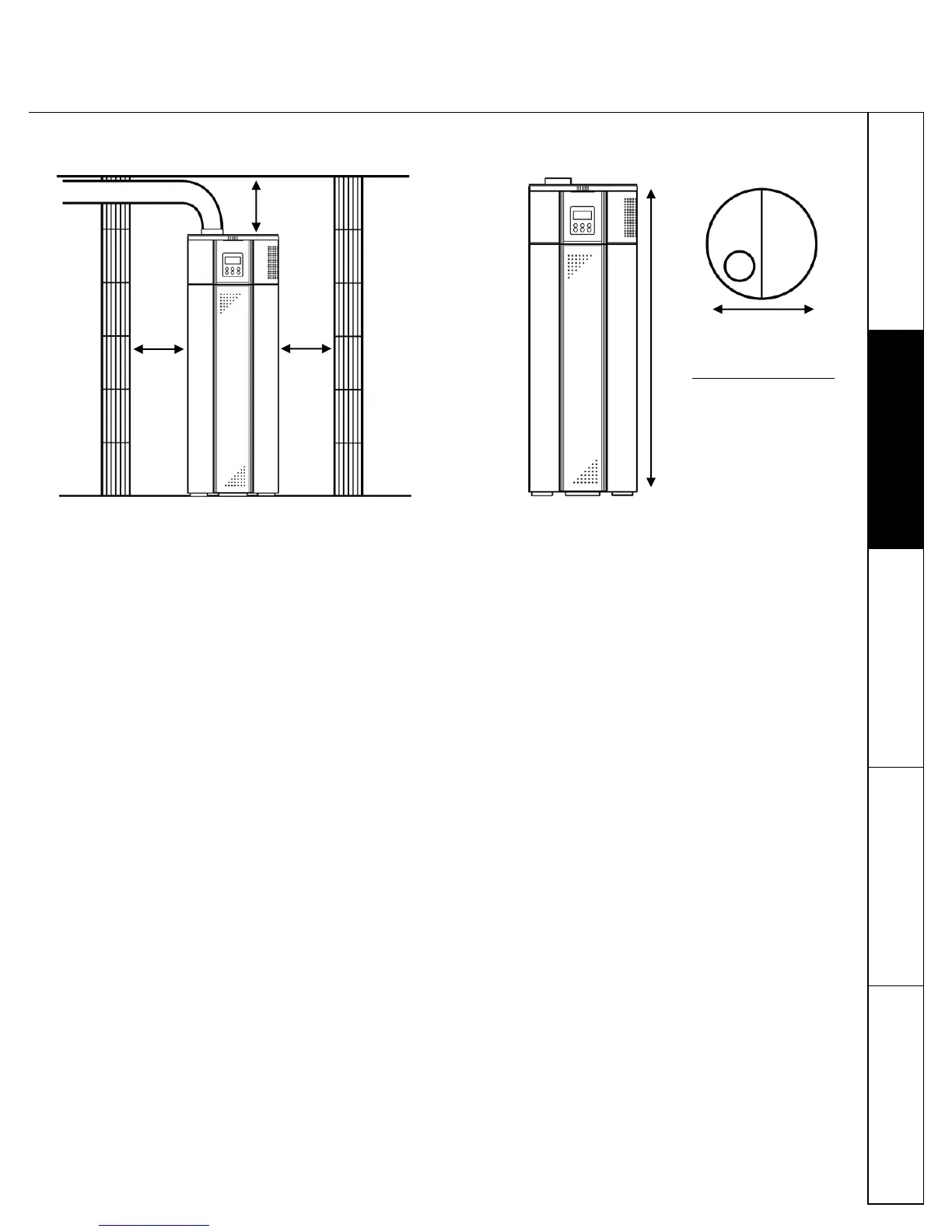

Please check dimensions for the model you intend to install and ensure that you have at least 2 feet of clearance
around the unit as well as on top of the unit.
If the unit is installed in an enclosed room:
a. The room size should exceed 1,000 cubic feet OR
b. The room must have a louvered door or similar venlaon OR
c. The unit must be ducted to vent the exhaust air out of the enclosed area.
2’
2’
2’
D
H
ATI50 ATI66
Height (H) 58.3” 69.3”
Diameter (D) 25.6” 25.6”
Weight (lbs) 190 227
C. LOCAL INSTALLATION REGULATIONS
This water heater must be installed in accordance with these instrucons, local codes, ulity codes, ulity company
requirements or, in the absence of local codes, the latest edion of the Naonal Electrical Code. It is available from
some local libraries or can be purchased from the Naonal Fire Prevenon Associaon, Baerymarch Park, Quincy, MA
02169 as booklet ANSI/NFPA 70.
D. ELECTRICAL REQUIREMENTS
Unit must be connected to a dedicated 240V/60Hz single phase power outlet rated for at least 30 amperes. Conrm
that this power outlet is not being shared with another appliance.
Fig. 1
Fig. 2
