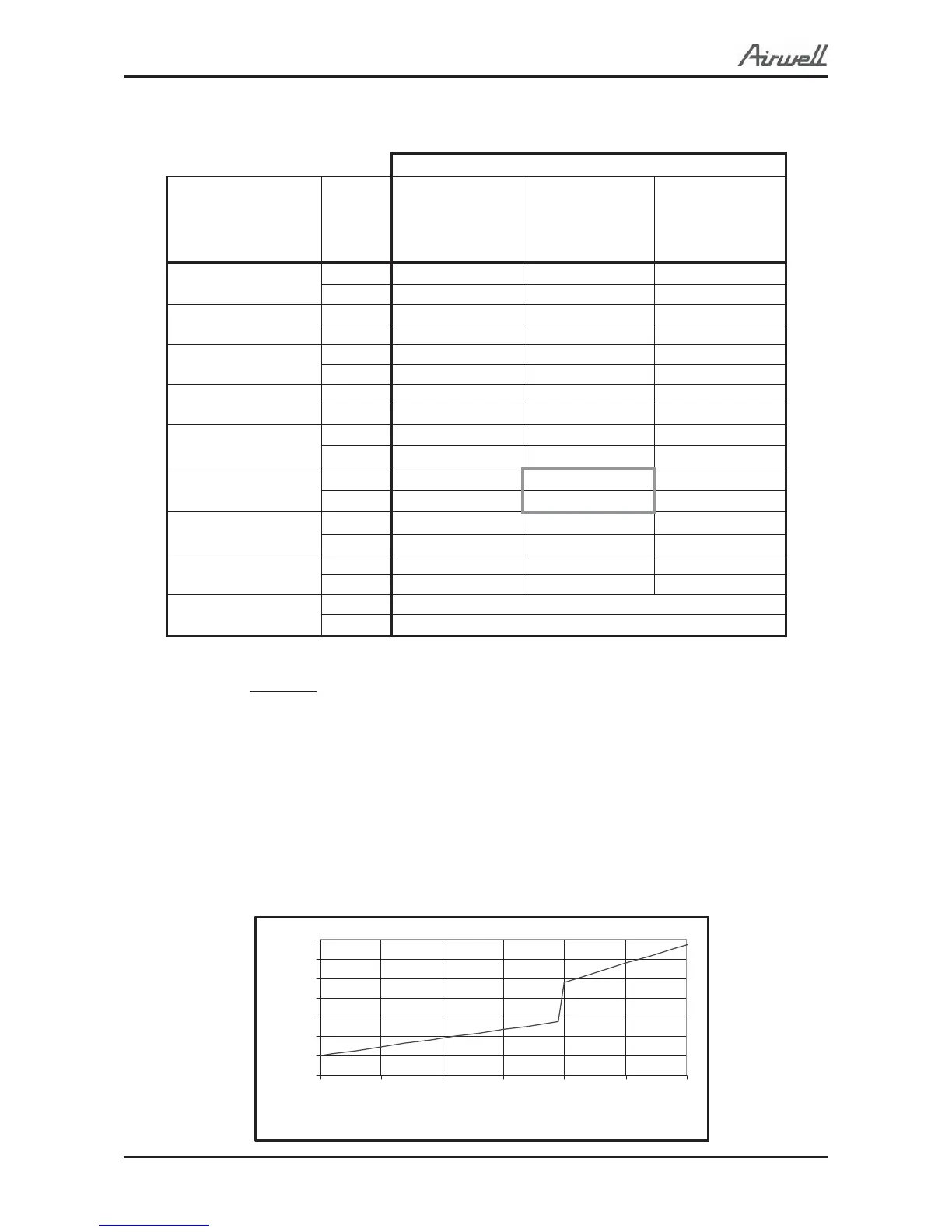

5.1.3 Heating Capacity (kW) - Run Mode)
ID COIL ENTERING AIR DB TEMPERATURE [ºC]
OD COIL
ENTERING AIR
DB/WB
TEMPERATURE
[ºC]
DATA 15 20 25
TC 1.37 1.17 0.97
-15/-16
PI 0.42 0.45 0.48
TC 1.80 1.61 1.41
-10/-12
PI 0.47 0.50 0.53
TC 2.13 1.93 1.74
-7/-8
PI 0.52 0.55 0.58
TC 2.29 2.10 1.90
-1/-2
PI 0.54 0.57 0.60
TC 2.40 2.21 2.01
2/1
PI 0.55 0.58 0.61
TC 3.20
3.00
2.80
7/6
PI 0.57
0.60
0.63
TC 3.36 3.17 2.97
10/9
PI 0.58 0.61 0.64
TC 3.53 3.33 3.13
15/12
PI 0.59 0.62 0.65
15-24
lanimonfo%501-58CT
(Protection Range)
lanimonfo%021-08IP
LEGEND
TH – Total Heating Capacity, kW
PI – Power Input, kW
WB – Wet Bulb Temp., (
o
C)
DB – Dry Bulb Temp., (
o
C)
ID – Indoor
OU - Outdoor
5.1.4 Capacity Correction Factors
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
-15 -10 -5 0 5 10 15
Outdoor WB Temperature [deg C]
Capacity Ratio
TC
