Airwell GC 9 DCI User Manual

5-5
PERFORMANCE DATA & PRESSURE CURVES
SM PNXADCI 1-A.1 GB

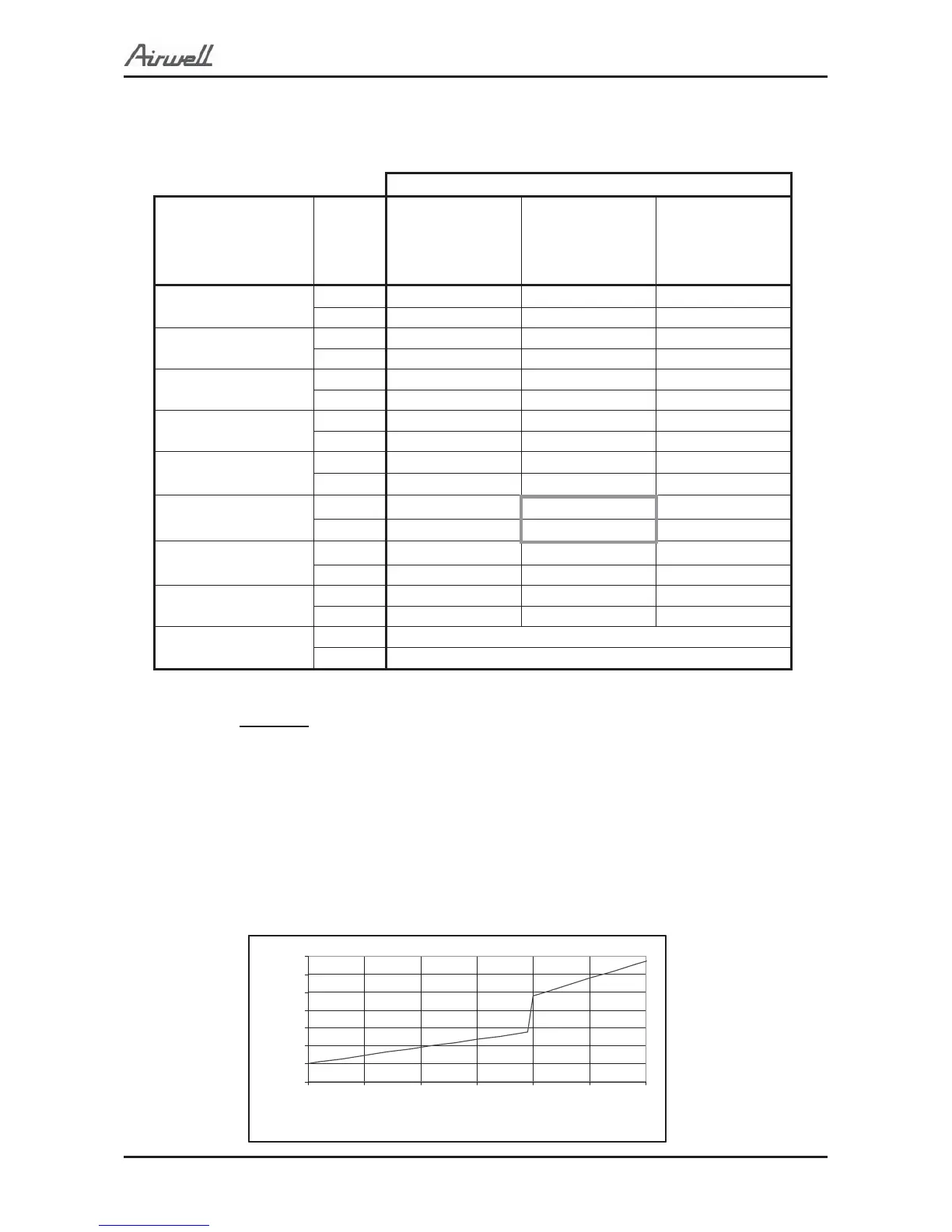

5.3.3 Heating Capacity (kW) - Run Mode
ID COIL ENTERING AIR DB TEMPERATURE [ºC]
OD COIL
ENTERING AIR
DB/WB
TEMPERATURE
[ºC]
DATA 15 20 25
TC 1.82 1.56 1.30
-15/-16
PI 0.70 0.75 0.80
TC 2.40 2.14 1.88
-10/-12
PI 0.79 0.84 0.89
TC 2.84 2.58 2.32
-7/-8
PI 0.86 0.91 0.96
TC 3.06 2.80 2.53
-1/-2
PI 0.89 0.94 0.99
TC 3.20 2.94 2.68
2/1
PI 0.92 0.97 1.02
TC 4.26
4.00
3.74
7/6
PI 0.95
1.00
1.05
TC 4.48 4.42 3.96
10/9
PI 0.97 1.02 1.07
TC 4.70 4.44 4.18
15/12
PI 0.99 1.04 1.09
15-24
lanimonfo%501-58CT
(Protection Range)
lanimonfo%021-08IP
LEGEND
TH – Total Heating Capacity, kW
PI – Power Input, kW
WB – Wet Bulb Temp., (
o
C)
DB – Dry Bulb Temp., (
o
C)
ID – Indoor
OU - Outdoor
5.3.4 Capacity Correction Factors
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
-15 -10 -5 0 5 10 15
Outdoor WB Temperature [deg C]
Capacity Ratio
TC

Airwell GC 9 DCI Specifications
