AIS DiVi Installation Instructions (P-DVINSTRUCT01)

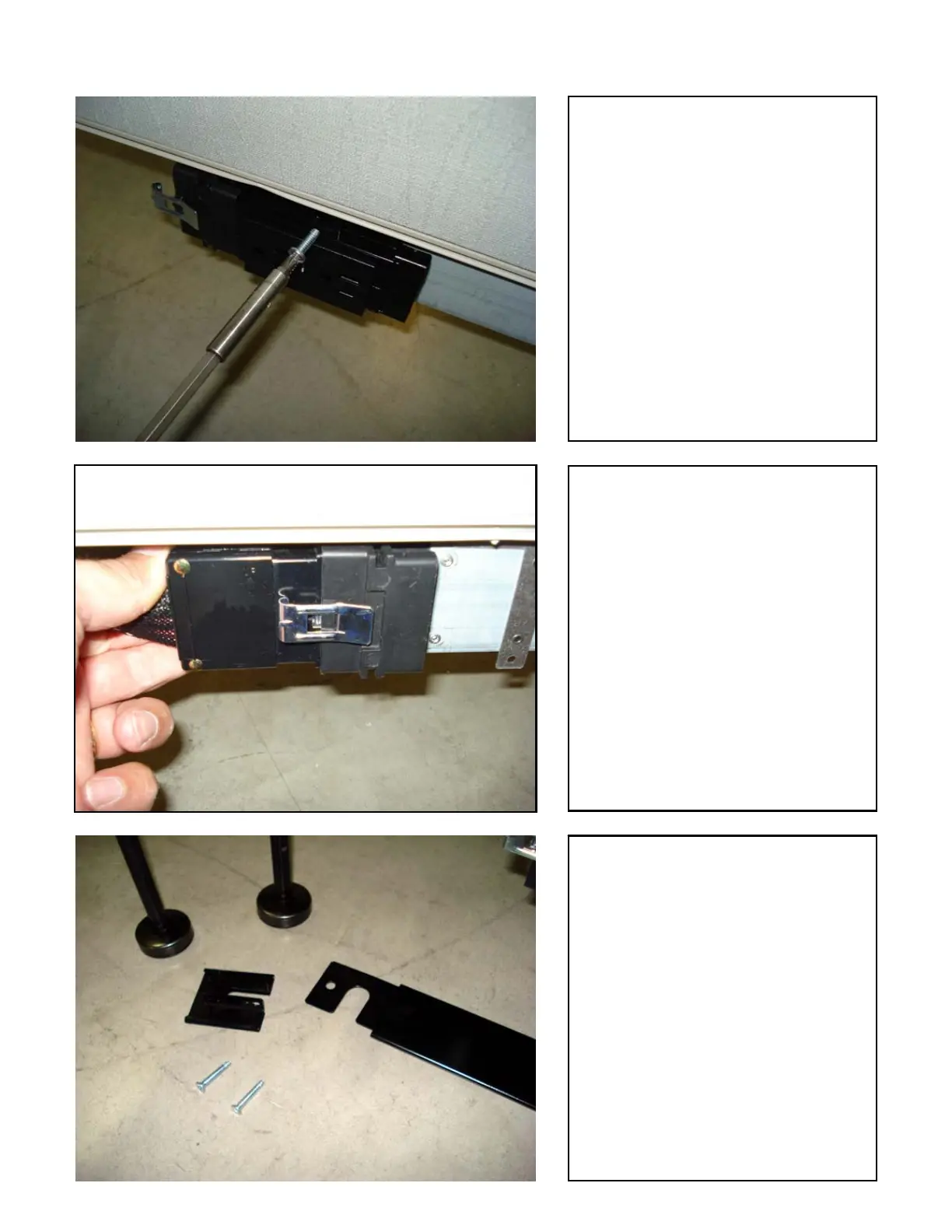

Slide outlet to the left on the
left side, or to the right on the
right side, until fully engaged
on powerway as shown.
Outlet cannot be installed
upside-down. Using screws
provided for “Outlets”, screw
outlet to powerway as
shown. Only one screw, top or
bottom, is required. NOTE –
Outlets MUST be screwed to
Powerways.
Install Jumpers as indicated
WITH ARROWS on JUMPER
modular end pointing UP as
shown. Engage jumper fully
onto powerway in one of the 2
end locations. Safety Clip
MUST BE fully engaged over
Clip Ramp to be fully installed.
Metal Raceway dividers are
available should a client desire
High voltage and low voltage
to be separated by a metal
barrier.
