AIS DiVi Installation Instructions (P-DVINSTRUCT01)

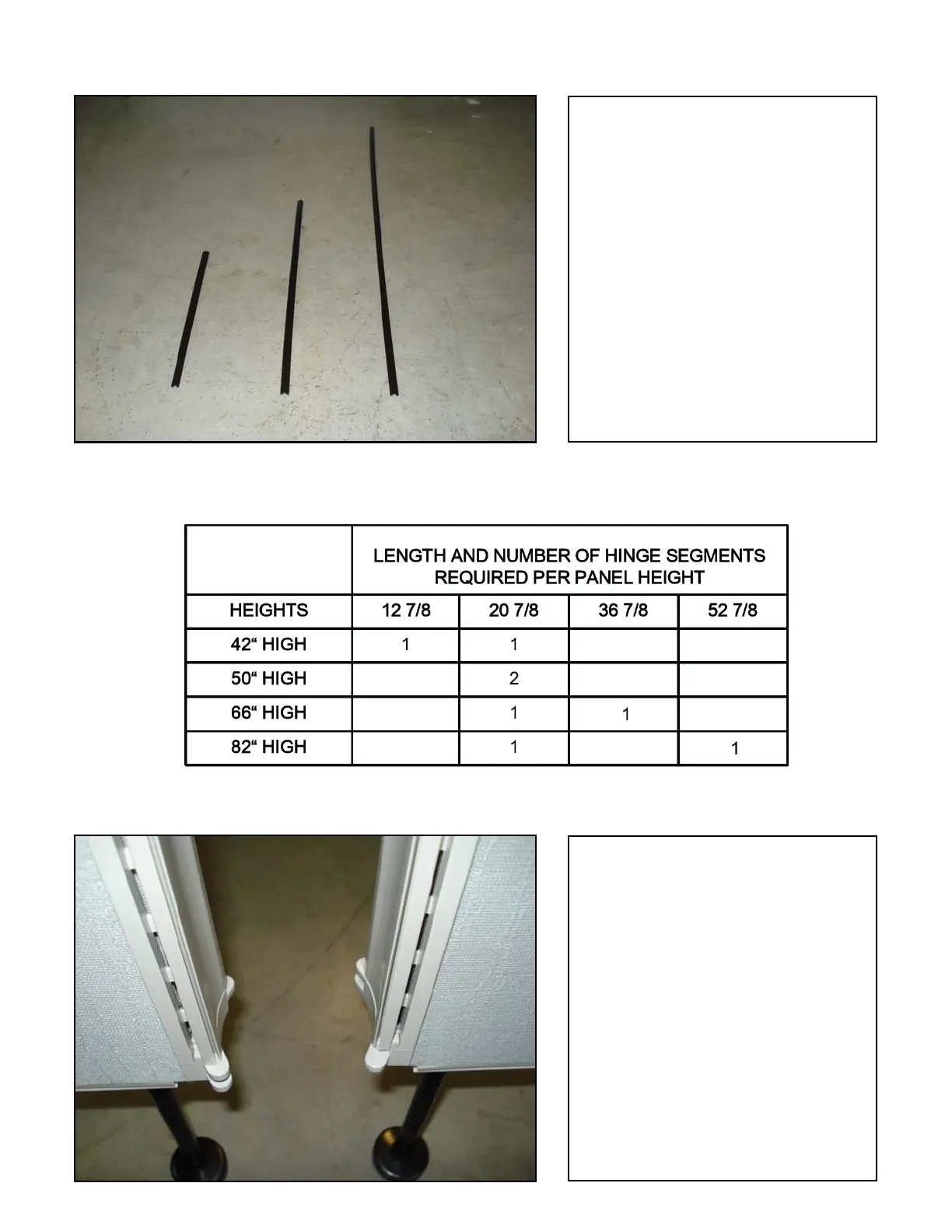

Hinges are precut in the
factory. Every panel ships
with correct amount and sizes
of hinges. Hinges are cut to
12 7/8, 20 7/8, 36 7/8, and 52
7/8. See Chart below for the
appropriate sized hinges to
use for each panel connection
With panel glides turned in all
the way to the lowest point,
align two panels as shown.
Note that each panel has a
pair of alignment plates that
interlock when abutted, locking
panels together vertically.
