AIS DiVi Installation Instructions (P-DVINSTRUCT01)

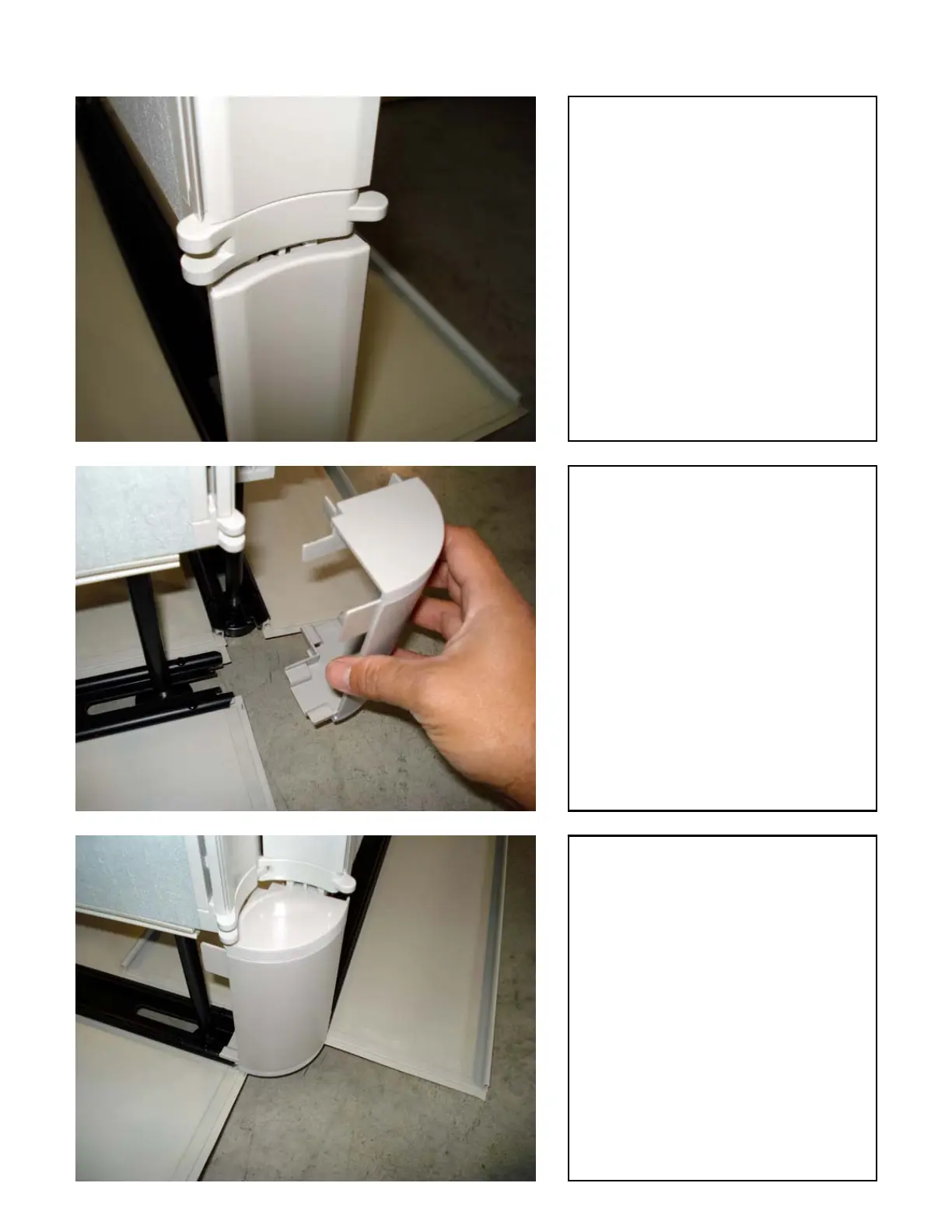

Properly installed raceway
endcap.
Snap nubs on bottom of
shrouds into “key slots” on
bottom of raceway assembly.
BE SURE BOTH sets of
NUBS ARE SECURED.
.
Properly installed 2-way 90
degree shroud. NOTE – 2-
way 45 degree and 2-way 60
degree connections require
different shrouds.
